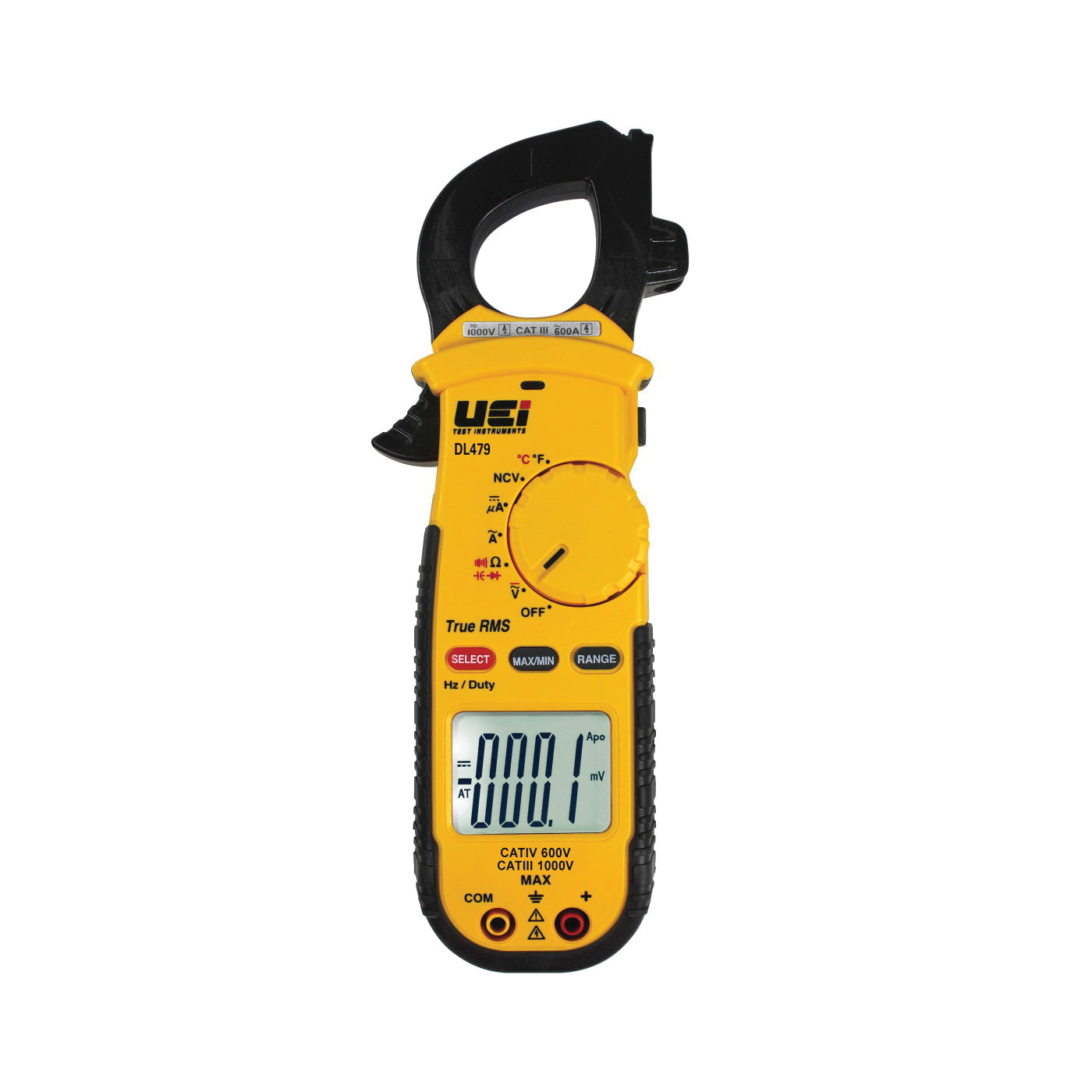

UEi Test Instruments DL479 HVAC/R Clamp Meter 750 VAC/600 VDC 600 A AC 2000 uA DC 2000 uF

Product Description

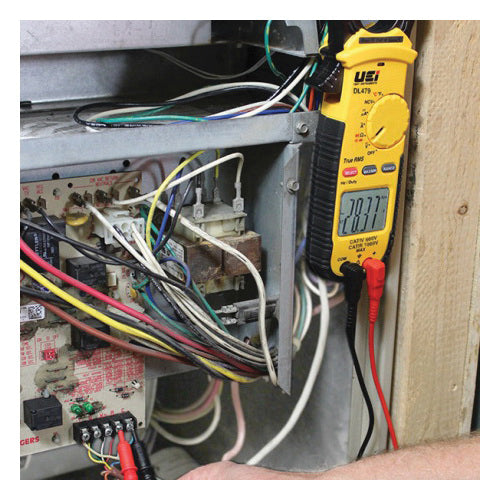

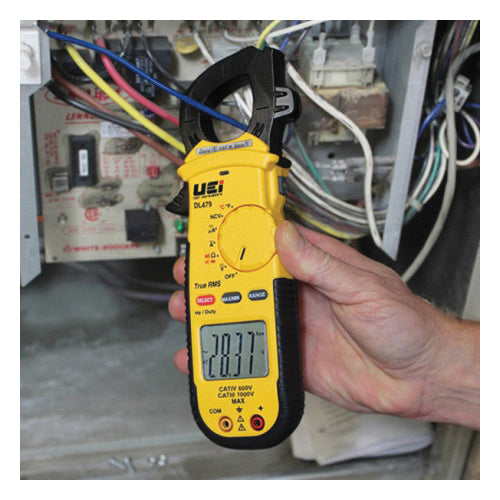

The UEi Test Instruments DL479 is an HVAC/R digital clamp meter designed for various electrical measurements. This model measures up to six hundred amperes of alternating current, seven hundred fifty volts of alternating current, and six hundred volts of direct current. Its usability extends to measuring resistance, microamps, capacitance, frequency, and temperature. The device also supports non-contact voltage detection.

• True RMS AC Response
• Backlit display for visibility
• Test leads and thermocouple probe included

Product Highlights

This clamp meter includes features helpful for HVAC technicians and electricians. It is compact, with a jaw capacity of one point three inches, and offers temperature readings in a wide range of thirty-two to one hundred four degrees Fahrenheit.

Product Information

Standard Information

• Brand: UEi Test Instruments
• MPN: DL479

Technical Specifications

• Electrical Ratings: 750 VAC/600 VDC, 600 A AC, 2000 uA DC, 2000 uF
• Resistance: 60 mOhm
• Frequency Range: 99.99 Hz to 9.999 kHz
• Accuracy: +/-2.0 % +8 Digits AC Current, +/-1.0 % +3 Digits at VAC, +/-0.5 % +4 Digits at VDC
• Display Type: Backlit
• Power Source: (2) AAA Batteries
• Operating Temperature: 32 to 104 degrees Fahrenheit
• Dimensions: 8.85 x 3.5 x 1.75 inches
• Safety Rating: CAT IV 600V
