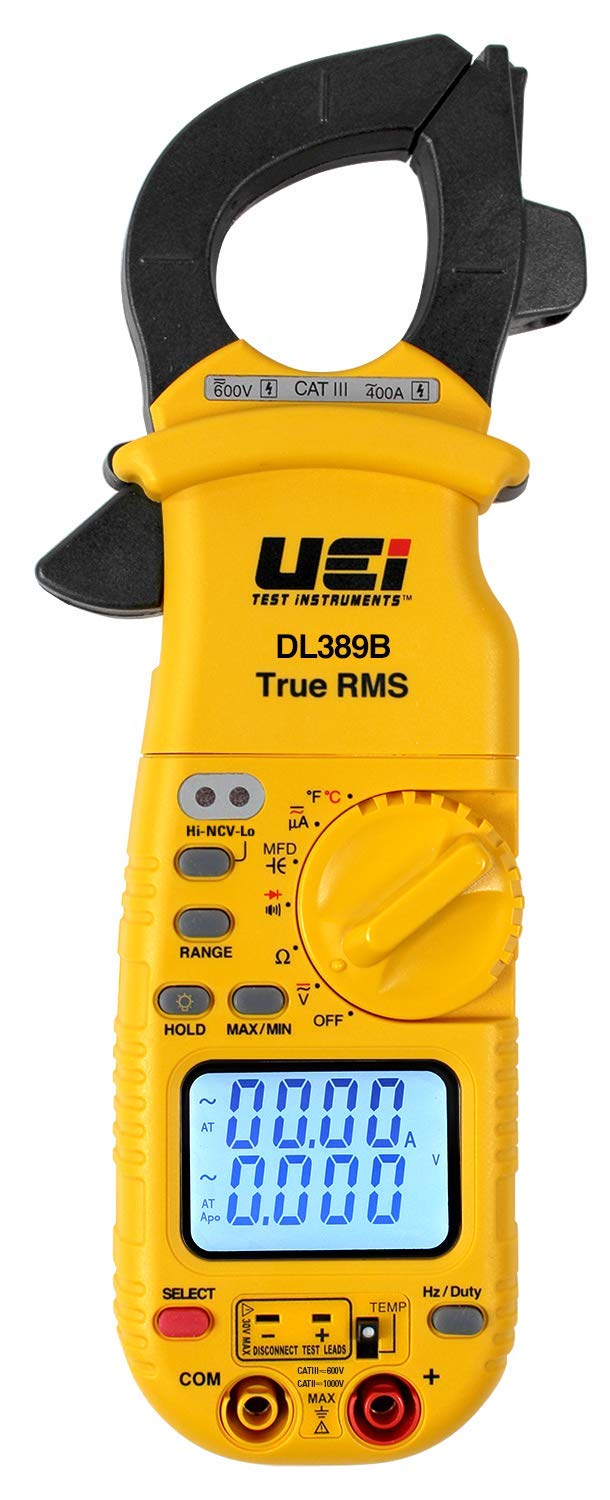

Uei Test Instruments DL389B Digital True RMS Clamp Meter HVAC 4000 Counts Auto Ranging

Product Description

The UEI TEST INSTRUMENTS DL389B is a Digital True RMS Clamp Meter designed for HVAC applications. It features 4000 counts and auto-ranging capabilities, measuring AC & DC volts, AC amps, AC/DC microamps, temperature, frequency, resistance, capacitance, and duty cycle. This battery-powered device also includes Non-Contact Voltage (NCV) detection and a diode test function, making it suitable for comprehensive electrical diagnostics.

• Measures AC & DC volts, AC amps, AC/DC microamps, temperature, frequency, resistance, capacitance, and duty cycle.
• Features 4000 counts auto-ranging voltmeter for precise electrical measurements.
• Incorporates Non-Contact Voltage (NCV) detection and a diode test function.

Product Highlights

This True-RMS HVAC/R meter features a dual display, worklight, safety lock for input jacks, and an EasyView Display for clear readings in various lighting conditions. It also includes auto/manual ranging, Min/Max functions, and auto power off.

Product Information

Standard Information

• Brand: UEI TEST INSTRUMENTS
• Manufacturer Part Number: DL389B

Technical Specifications

• Product Type: Clamp Meter
• Model Number: DL389B
• Power Source: Battery Powered
• Display: Digital
• True RMS: True RMS
• AC Voltage: 750V
• DC Voltage: 1000V
• AC Amperage: 400A
• AC/DC Low Amps: 2000 mA
• Temperature Range: -22° to 752°F (-30° to 400°C)
• Frequency: 199.9KHz
• Duty Cycle: 99%
• NCV: Hi-NCV-Lo
• Diode Test: Diode Test
• Continuity: Continuity
• Input Protection Features: HRC Fuse, Clamping Circuit, Diode Bridge
• Measurement Category: CAT III
• Maximum Input Voltage: 1000 V
• Form Factor: Handheld
• Protection Against Liquids: No
• IP Rating: Not Rated
