Uei RLD10 refrigerant leak detector 9V 18 1/2-inch gooseneck 0.5 oz/yr sensitivity

Product Description

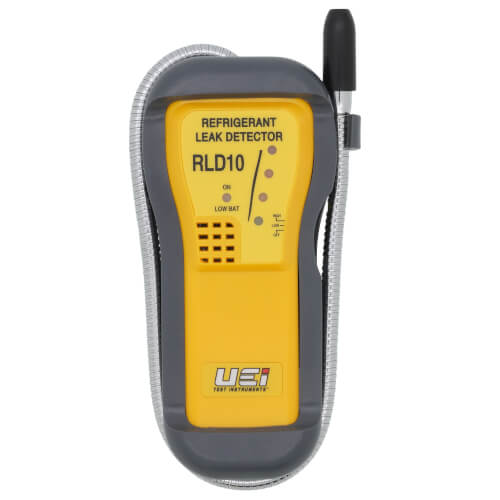

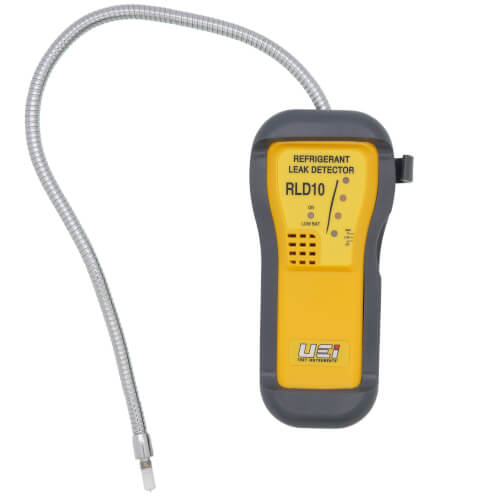

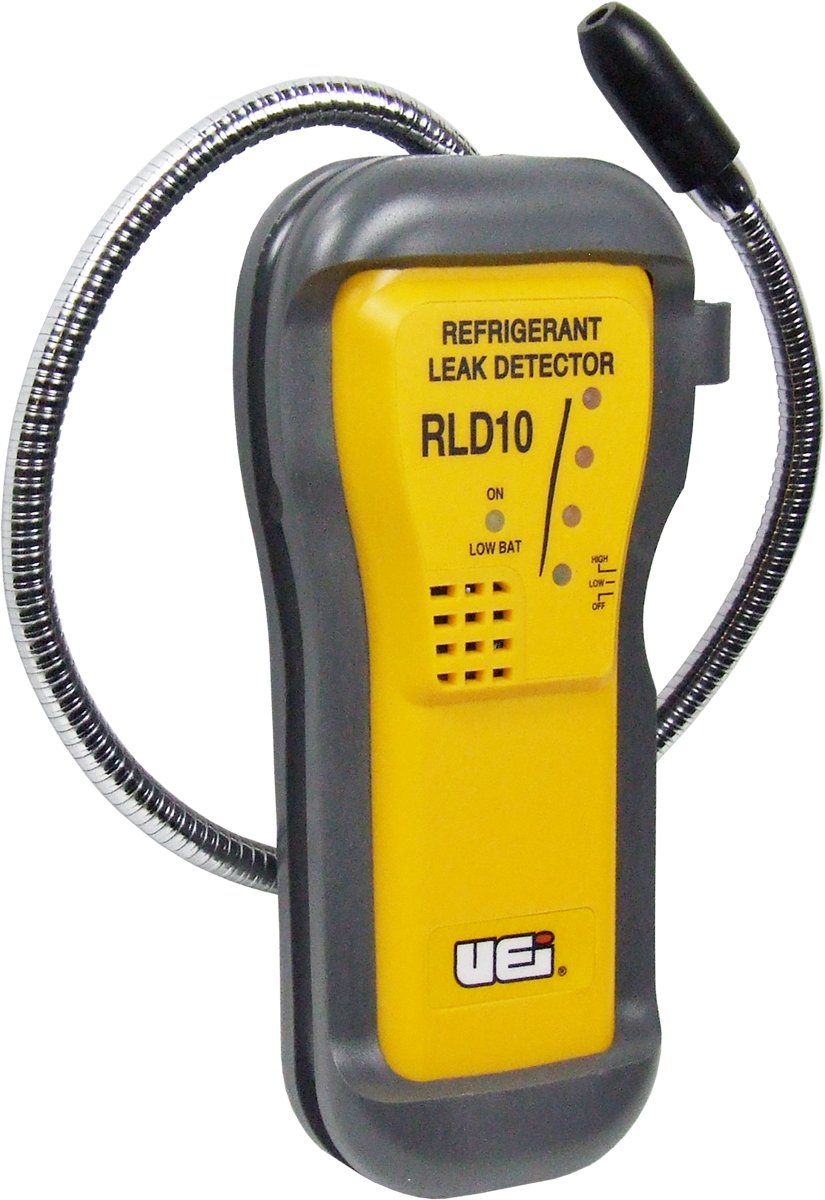

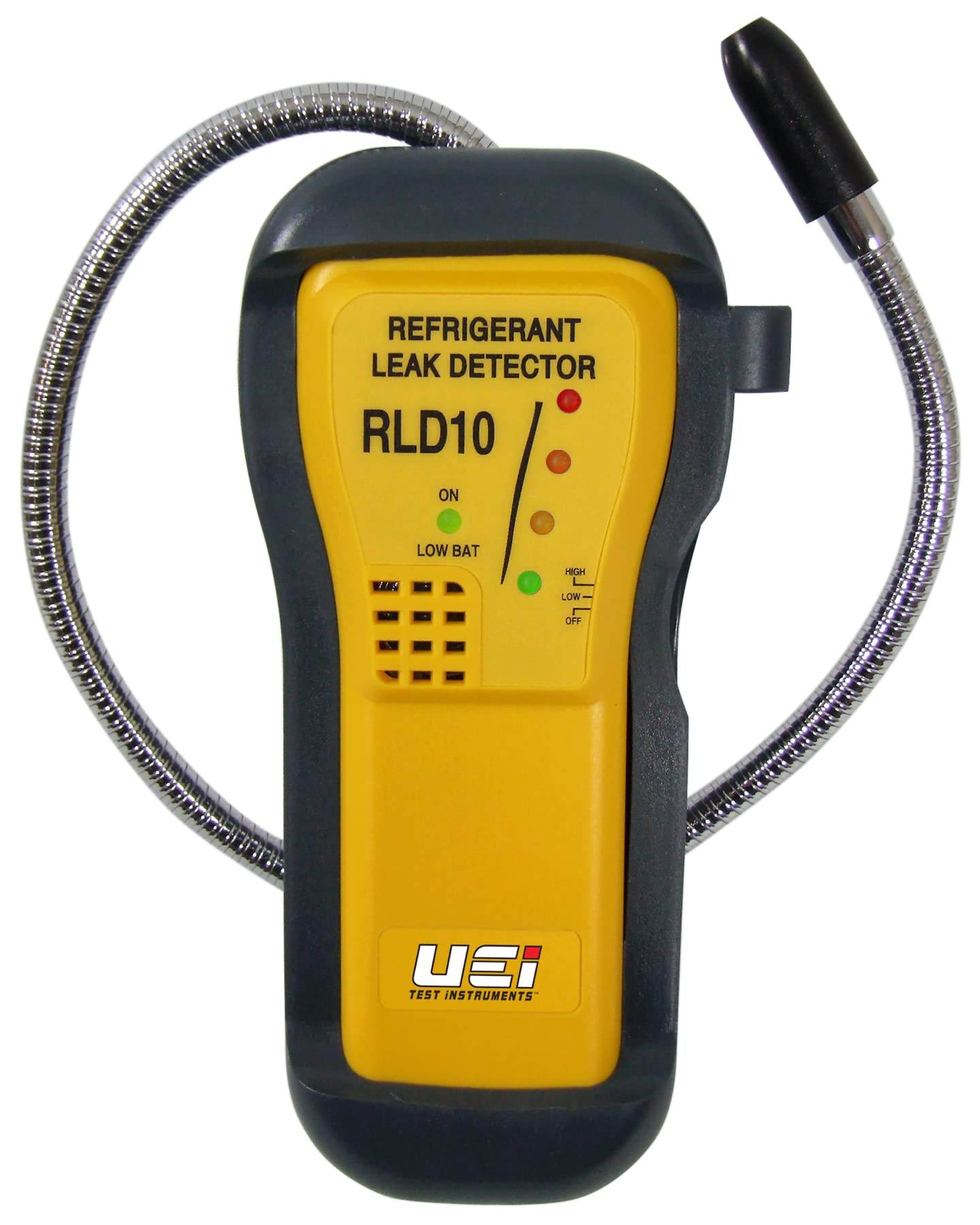

The UEI RLD10 Refrigerant Leak Detector is designed for pinpointing leaks in HVAC systems. This handheld device features two sensitivity levels, allowing for high sensitivity detection and precise source identification. It automatically detects all existing halogenated refrigerants and blends with a sensitivity of 0.5 oz per year. Visual LED indicators and an audible tic rate assist in identifying leak concentration, even in noisy environments. Powered by a 9V battery, it includes an 18 1/2-inch gooseneck probe for accessing difficult areas.

• Detects leaks with a sensitivity of 0.5 oz per year for R134A, R123, and R410A.
• Automatically identifies all existing halogenated refrigerants and blends.
• Features an 18 1/2-inch long gooseneck probe for extended reach.

Product Highlights

Handheld refrigerant leak detector with audio and visual indication, compatible with CFC, HCFC, and HFC refrigerant types.

Product Information

Standard Information

• Brand: UEI TEST INSTRUMENTS
• Manufacturer Part Number: RLD10
• Country of Origin: United States

Technical Specifications

• Brand: UEI TEST INSTRUMENTS
• MPN: RLD10
• Manufacturer: UEi Test Instruments
• Model: RLD10
• Product Type: Refrigerant Leak Detector
• Package Quantity: 1
• Compatible Refrigerant Group Type: CFC, HCFC, HFC
• Compatible Refrigerant Type: R-11, R-113, R-114, R-12, R-13, R-134A, R-22, R-23, R-404A, R-410A, R-500, R-502, SF6
• Refrigerant Sensitivity: 0.5 oz/yr
• Probe Length: 18 1/2 inch
• Display Type: LED Indicator
• Indication Method: Audio, Visual
• Battery Type: 9V
• Included Accessories: 9V Battery, Lead Test Vial
• Batteries Included: Yes
• Low Battery Warning: Yes
• Mobility: Handheld
• Number of Batteries Required: 1
• Number of Sensitivity Levels: 2
• Operating Mode: Pinpoint
• Power Source: Battery
• Response Time: 1 sec
• Sensor Type: Corona Discharge
• Warm-up Time: 10 sec
• A2L Compatibility: Not A2L Compatible
• Min Operating Temperature: 32°F
• Max Operating Temperature: 120°F
• Detects Trace Gas: Trace Gas Detected
• Battery Life: 8 hr Continuous
• Protective Features: Protective boot or overmolding
