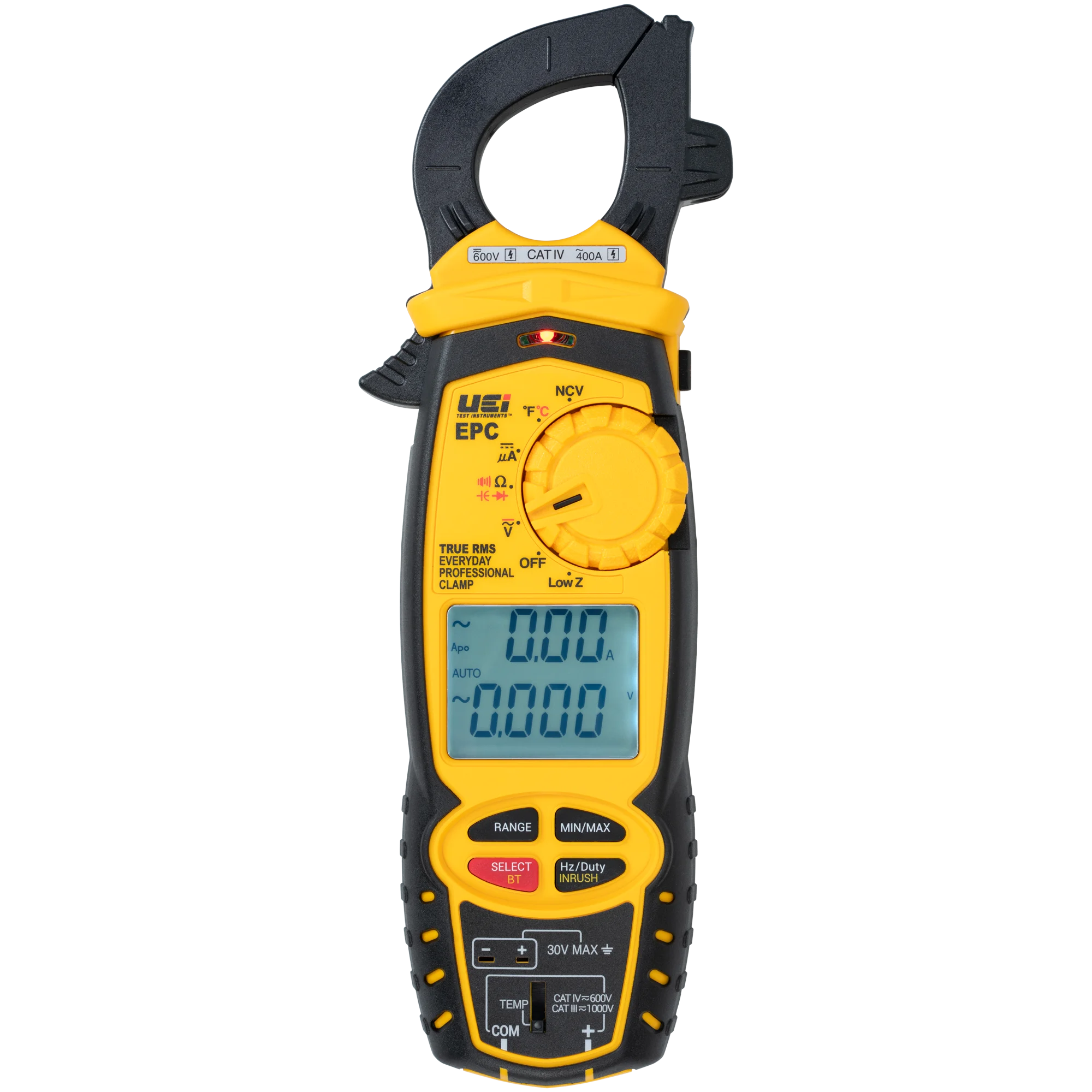

Uei EPC Everyday Professional Wireless Clamp Meter, True-RMS

Product Description

The UEI EPC is a True-RMS wireless clamp meter designed for essential HVAC/R tests. Safety rated at CATIV 600V 400A/ CATIII 1000V 400A, it reads AC/DC Volts, LRA Inrush, temperature, capacitance, duty cycle, AC amps, DC microamps, frequency, non-contact voltage, resistance, continuity, and diodes. It features an ergonomic grip, backlit dual display, and wireless connectivity to the UEi HUB app.

• True RMS
• Voltage 750 AC / 1000 DC
• Amperage 400 AC

Product Highlights

This clamp meter is designed to tackle the essential tests that HVAC/R professionals perform everyday.

Product Information

Standard Information

• Brand: UEI
• Manufacturer Part Number: EPC

Technical Specifications

• AC Amps (Clamp) Range: 40.00 A / 400.0 A
• AC Amps (Clamp) Resolution: 0.01 A / 0.1 A
• AC Amps (Clamp) Accuracy: ±2.0% + 8 dgts
• AC Amps (Clamp) Protection: 600 V RMS
• AC Amps (Clamp) Min. Current: 0.1 A
• AC Amps (Clamp) Bandwidth: 45 Hz to 400 Hz (True RMS)
• DC Microamps Range: 400.0 µA / 2000 µA
• DC Microamps Resolution: 0.1 µA / 1 µA
• DC Microamps Accuracy: ±1.2% + 3 dgts
• DC Microamps Protection: 600 V RMS
• DC Voltage Range: 400.0 mV to 1000 V
• DC Voltage Resolution: 0.1 mV to 1 V
• DC Voltage Accuracy: ±0.5% + 4 dgts
• DC Voltage 1000 V Accuracy: ±0.8% + 10 dgts
• DC Voltage Protection: 1000 V RMS
• AC Voltage Range: 400.0 mV to 750 V
• AC Voltage Resolution: 0.1 mV to 1 V
• AC Voltage Accuracy: ±2.0% + 5 dgts
• AC Voltage Bandwidth: 45 Hz to 400 Hz (True RMS)
• AC Voltage Protection: 750 V RMS
• Resistance Range: 400.0 Ω to 40.00 MΩ
• Resistance Resolution: 0.1 Ω to 0.01 MΩ
• Resistance Accuracy: ±1.0% + 4 dgts
• Resistance 40.00 MΩ Accuracy: ±2.0% + 4 dgts
• Resistance Protection: 600 V RMS
• Capacitance Range: 40.00 nF to 4000 µF
• Capacitance Resolution: 0.01 nF to 1 µF
• Capacitance Accuracy: ±3.5% + 6 dgts
• Capacitance Protection: 600 V RMS
• Temperature (K-type) Range: –328 °F to 2462 °F (–200 °C to 1350 °C)
• Temperature (K-type) Resolution: 0.1 °F / 1 °F
• Temperature (K-type) Accuracy: ±(1.0% + 3.6 °F) up to 999 °F ±(1.0% + 3 °F) from 1000 – 2462 °F
• Temperature (K-type) Protection: 30 V RMS
• Frequency (via leads) Range: 99.99 Hz to 99.99 kHz
• Frequency (via leads) Resolution: 0.01 Hz to 0.01 kHz
• Frequency (via leads) Accuracy: ±0.1% + 4 dgts
• Frequency (via leads) Min. Frequency: 0.5 Hz
• Frequency (via leads) Sensitivity: 1.6 V RMS
• Frequency (via leads) Protection: 1000 V RMS
• Duty Cycle Range: 1.0% to 99.0%
• Duty Cycle Accuracy: ±(0.2% per kHz + 0.1% + 5 dgts)
• Duty Cycle Protection: 1000 V RMS
• Diode Test Range: 6.0 V
• Diode Test Open Circuit Voltage: < 3.0 V DC
• Diode Test Test Current: 0.25 mA
• Diode Test Protection: 600 V RMS
• Continuity Threshold: < 40 Ω
• Continuity Open Circuit Voltage: < 1.00 V
• Continuity Protection: 600 V RMS
• Non-Contact Voltage Detection Voltage: Approx. 24 V AC
• Operating Temperature: 32 to 122°F (0 to 50°C)
• ETL Listed: cETLus UL 61010-1: 2012
• AC Volts: 750 V
• DC Volts: 1000 V
• Display Type: Backlight
• Manufacturer: UEi Test Instruments
• Manufacturer #: EPC
• Brand: UEi
• Type: Clamp Meter
• MPN: EPC
• Safety Rating: CATIV 600V 400A/ CATIII 1000V 400A
• Voltage: AC/DC Volts
• Inrush: LRA Inrush
• Temperature: Temperature
• Capacitance: 4000 uF
• Duty Cycle: Duty Cycle
• Amps: AC Amps, DC Microamps
• Frequency: Frequency via leads
• Non-Contact Voltage: Non-Contact Voltage
• Resistance: 40 MOhm
• Continuity: Continuity
• Diode Testing: Diode Testing
• Wireless Connectivity: Wireless connectivity to the free app, UEi HUB
• Frequency Rating: 99.9 kHz
