Uei DL429B TRMS Advanced HVAC Clamp Meter with Wireless

Product Description

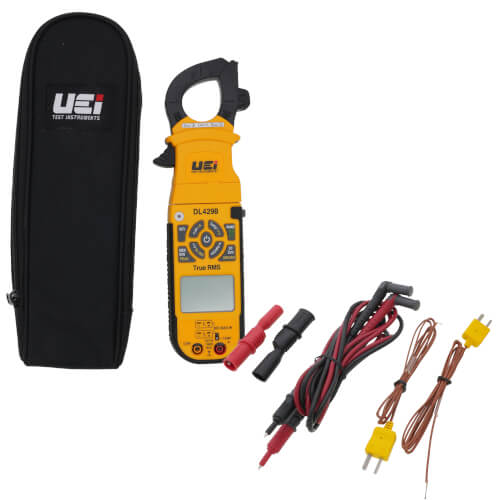

The UEI DL429B advanced TRMS HVAC clamp meter features wireless connectivity for iOS and Android devices. This meter measures AC/DC voltage and AC amperage, transmitting data wirelessly to a smartphone or tablet. The DL429B has a dual display, built-in worklight, magnetic mount, and is drop resistant up to 6 feet.

• Features a new DC amps function for industrial or electrical applications.
• Offers a broad temperature range from -328° to 2462°F.
• Wirelessly connects to a compatible UEI app for remote monitoring and data analysis.

Product Highlights

This clamp meter provides True RMS precision, dual temperature readings, and extended voltage and amp ranges suitable for various motor types and mini splits.

Product Information

Standard Information

• Brand: UEI
• Manufacturer Part Number: DL429B

Technical Specifications

• Product Type: Clamp Meter
• Options: Wireless
• Temperature Range: -328 to 2,462°F (-200 to 1,350°C)
• True RMS: Yes
• CAT Rating: CAT III 600 V
• AC Voltage: 750
• DC Voltage: 1000
• AC Amperage: 600
• DC Amperage: 600
• DC Micro-Amperage: 600 to 2,000
• NCV: Yes
• Resistance: 60 MΩ
• Continuity: Yes
• Diode Test: Yes
• Display Count: 6000
• Frequency: 99.99 Hz to 99.99 kHz
• Clamp Head Type: Detachable
• Frequency Rating: 99.99 to 9.999 kHz
• AC Current Accuracy: +/- 2
• Display Type: Backlight
• Manufacturer: UEi Test Instruments
• Manufacturer #: DL429B
• Operating Temperature: 32° to 122°F (0° to 50°C)
• Storage Temperature: -4° to 140°F (-20° to 60°C)
• Operating Humidity: <80%
• Pollution Degree: 2
• Display: 3 5/6 digits 6,000 count
• Refresh Rate: 3/sec
