Ubiquiti UVC-G5-Dome-Ultra G5 Dome Ultra

Product Description

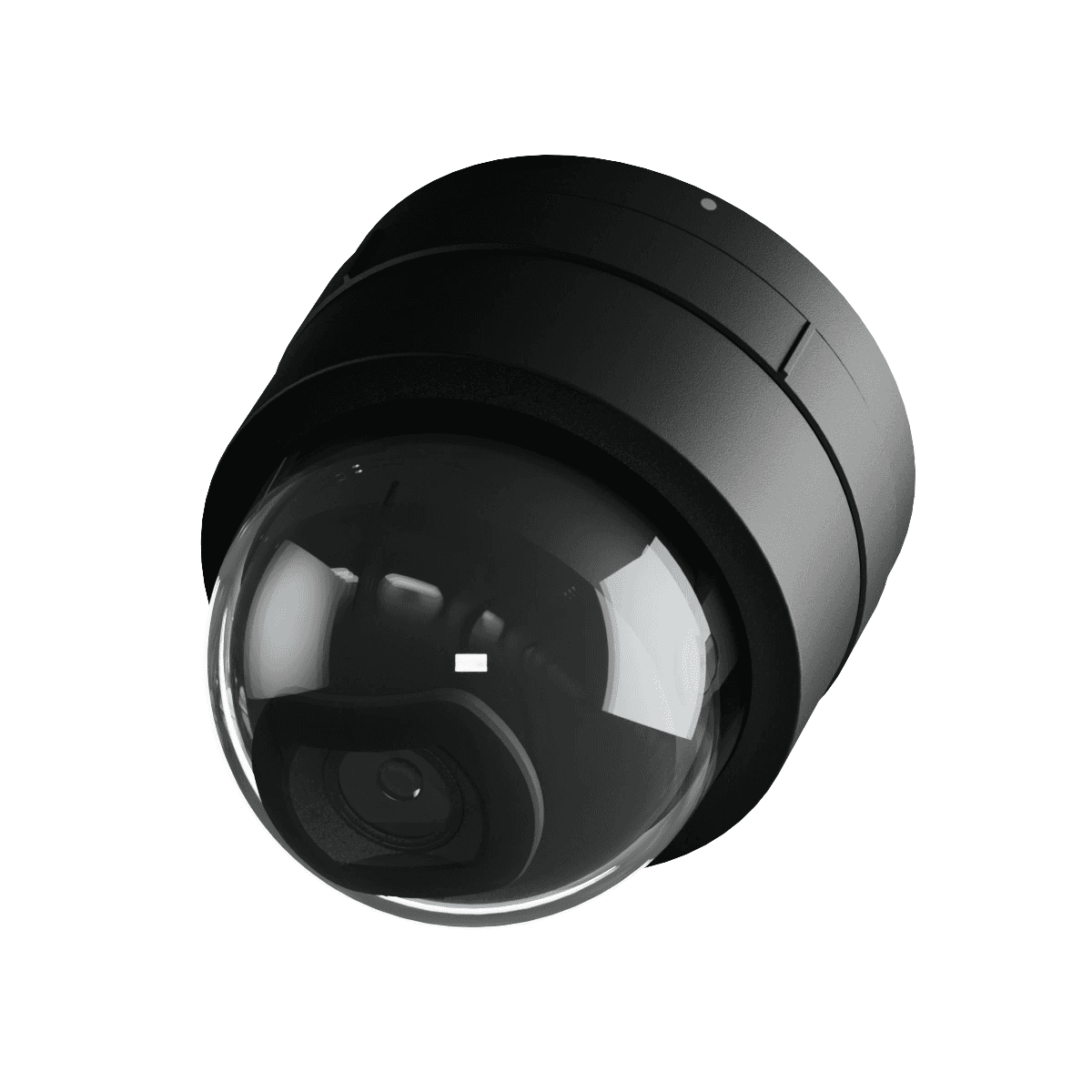

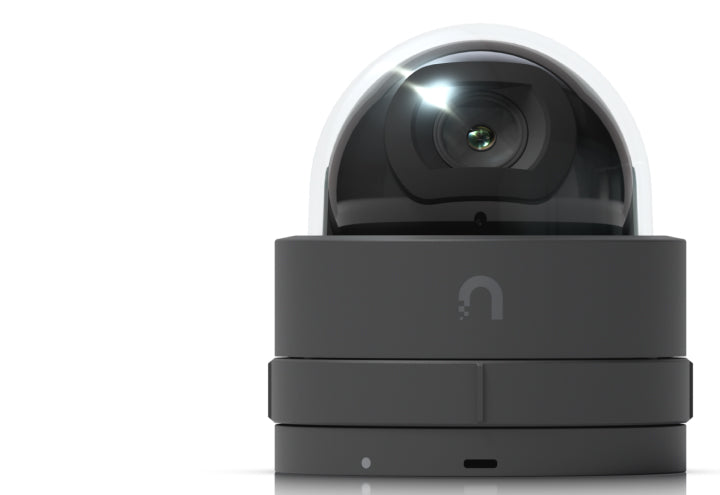

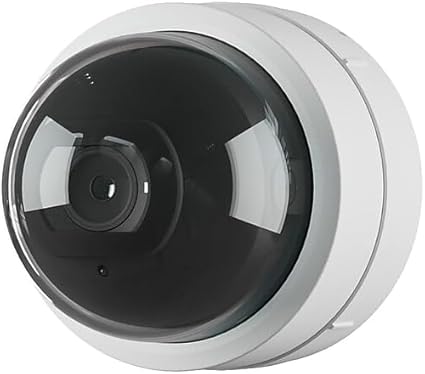

The UBIQUITI UVC-G5-Dome-Ultra G5 Dome Ultra is an ultra-compact and tamper-resistant 2K HD PoE camera with night vision, designed for low-profile indoor security. The camera features smart detection capabilities and multiple mounting options. An integrated IR LED with an automatic IR-cut filter enables sharp, reliable night vision in low-light or complete darkness.

• 2K Resolution
• IR Night Vision (20 m / 65 ft)
• Smart Detections (People, Vehicles, Animals)

Product Highlights

This vandal-resistant dome camera offers 2K resolution, IR night vision up to 20m, and supports smart detections for people, vehicles, and animals. It also features tamper resistance (IK06).

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UVC-G5-Dome-Ultra

Technical Specifications

• Networking Interface: 10/100 MbE RJ45 port
• Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
• Max. Frame Rate: 30 FPS
• Resolution: 4MP 2688 x 1512 (16:9)
• Sensor: 1/2.4" CMOS
• Lens: Fixed focal length
• Night Mode: Built-in IR LED illumination and IR cut filter
• Max. Power Consumption: 4.2W
• Supported Voltage Range: 37—57V DC
• Power Method: PoE
• Processor: Dual-core Arm® Cortex®-A7 based chip
• Ambient Operating Temperature: -20 to 40° C (-4 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Certifications: CE, FCC, IC
• IR Night Vision: 20 m (65 ft)
• Field of View: H: 102.4°, V: 54.9°, D: 120.6°
• Tamper Resistance: IK06
• Mounting: Surface mount (Included) Junction box, Ultra Flush mount (Optional)
• NDAA Compliant: ✓
• Manufacturer: Ubiquiti Inc.
• Part Number: UVC-G5-Dome-Ultra
• Item model number: G5
• Wattage: 4.2 watts
• Item Package Quantity: 1
• Mounting Type: Wall Mount
• Special Features: Night Vision
• Usage: all
