Product Description

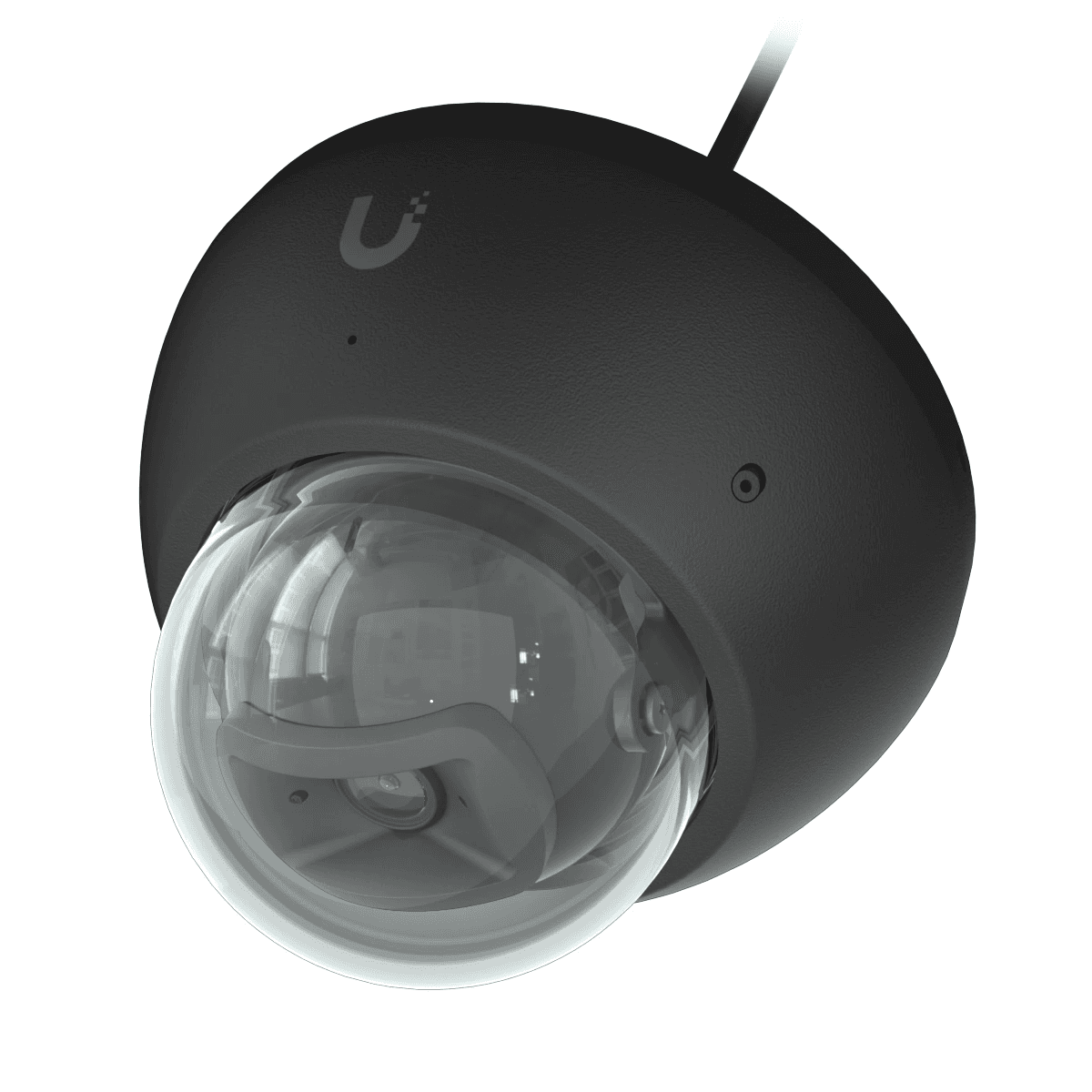

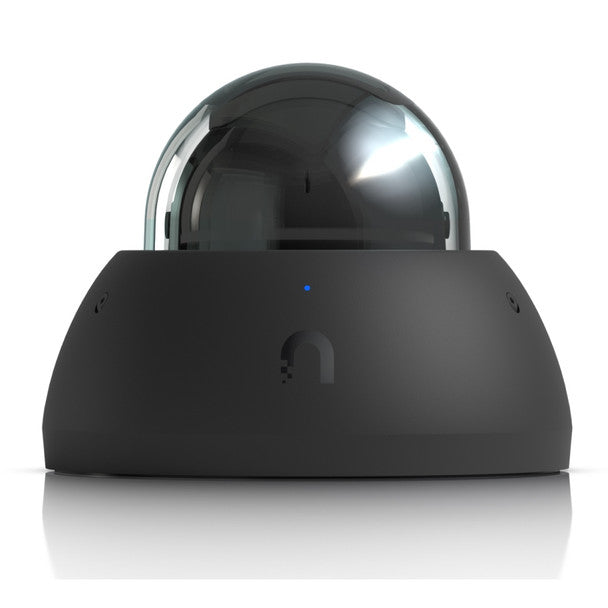

The UBIQUITI UVC-AI-DOME-B AI Dome is an all-weather, vandal-proof 4K PoE dome camera that offers enhanced AI capabilities and long-range IR night vision. It is well-suited for remote surveillance needs. The camera supports up to 3840 x 2160 video resolution and has a weatherproof IP66 rating for outdoor installation.
- Weatherproof IP66 Rated
- Up to 3840 x 2160 video resolution
- Up to 131.23 ft of night vision
Product Highlights
This 4K PoE dome camera is designed for robust performance in various climates, offering high-resolution video and advanced AI features.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: UVC-AI-DOME-B
Technical Specifications
-
Brand: Ubiquiti Networks
-
Part Number: UVC-AI-DOME-B
-
Item model number: UVC-AI-Dome-B
-
Item Package Quantity: 1
-

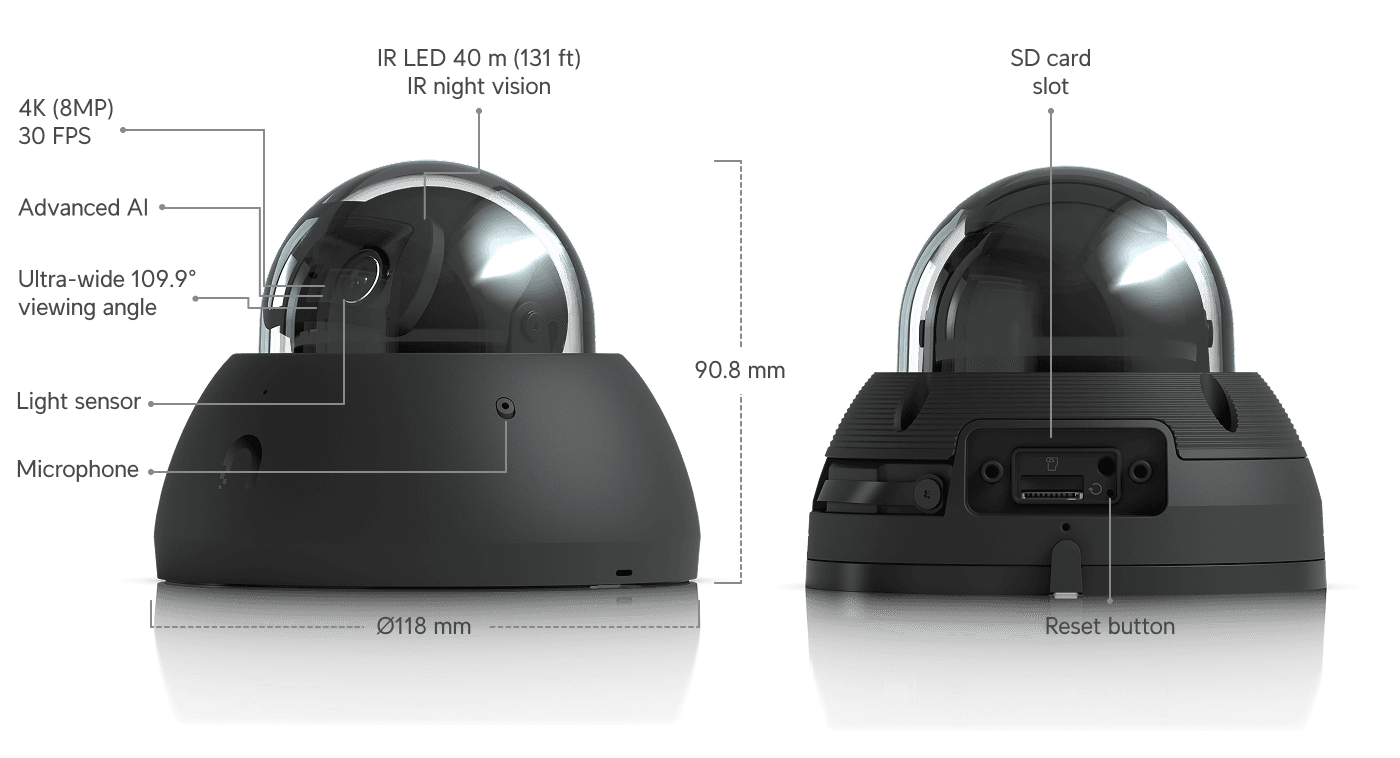

IR Night Vision: 40 m (131 ft)
-
Face Recognition: Yes
-
License Plate Recognition: Yes
-
Smart Detections (People, Vehicles, Animals): Yes
-
Resolution: 8MP 3840 x 2160 (16:9)
-
Field of View: H: 109.9°, V: 56.7°, D: 134.1°
-
Audio: Microphone
-
Weatherproofing: IP66
-
Tamper Resistance: IK10
-
Mounting: Arm, ceiling , pendant, wall mount, junction box
-
Networking Interface: GbE RJ45 port
-
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
-
Max. Frame Rate: 30 FPS
-
Sensor: 1/1.8" 8MP
-
Lens: Fixed focal length
-
Night Mode: Built-in IR LED illumination and IR cut filter
-
Max. Power Consumption: 10W
-
Supported Voltage Range: 42.5—57V DC
-
Power Method: PoE
-
Processor: Quad-core Arm® Cortex®-A53 based chip
-
Enclosure Material: Aluminum alloy, polycarbonate
-
Mount Material: Surface mount: polycarbonate
-
Button: (1) Factory-reset
-
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
-
Ambient Operating Humidity: 0 to 90% noncondensing
-
Certifications: CE, FCC, IC
-

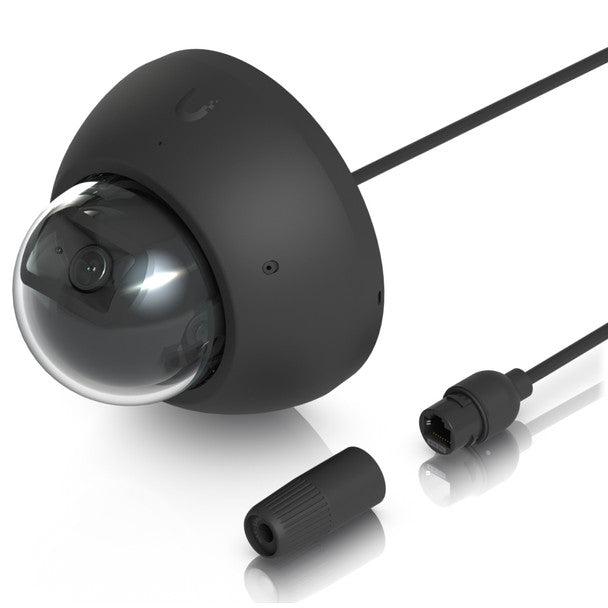

Cable Connector Type: RJ45
-
Cable Diameter: 4.5 mm (0.2")
-
Cable Length: 30 cm (1 ft)
-
Jacket Material: Thermoplastic elastomer
-
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
-
Expansion Slot: MicroSD Card
