Ubiquiti UVC-AI-360-W UniFi Video Camera AI 360 4MP

Product Description

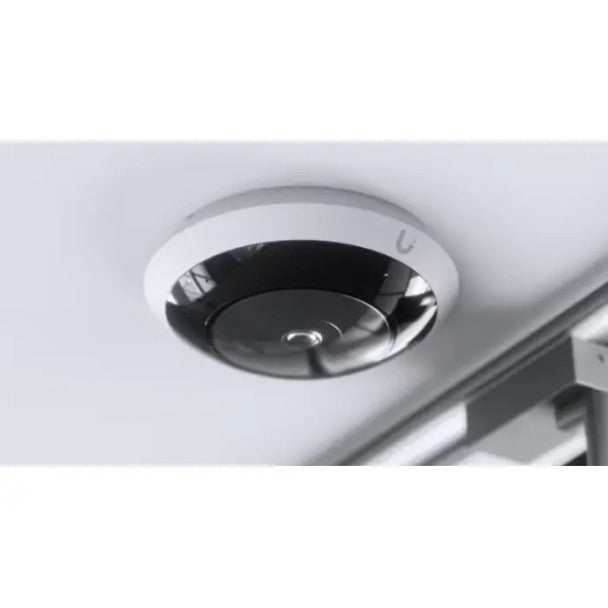

The UBIQUITI UVC-AI-360-W UniFi Video Camera AI 360 is an indoor/outdoor 2K PoE camera with pan-tilt-zoom functionality that offers full 360° surveillance. It features a 5MP CMOS sensor and a fisheye lens. The camera supports resolutions up to 4MP at 30 FPS and has built-in IR LED illumination for night vision up to 9 meters.

• 2K (4MP) video resolution
• Ultra-wide 360° view
• 9 m (30 ft) IR night vision
• Advanced AI: Detect people, vehicles, and more

Product Highlights

This camera is weather-resistant, vandal-resistant and connects and powers using PoE. It also has integrated 2-way audio.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UVC-AI-360-W

Technical Specifications

• Sensor: 5MP CMOS
• Lens: Fisheye lens
• View angle: 360°
• Night mode: Built-in IR LED illumination and IR cut filter
• Resolution: 4MP 1920 x 1920 (1:1)
• Max. frame rate: 30 FPS
• Processor: Quad-core Arm® Cortex®-A53 based chip
• Networking interface: GbE RJ45 port
• Power method: PoE
• Power supply: 48V DC, 0.18A PoE
• Max. power consumption: 8.64W
• Supported voltage range: 37—57V DC
• Ambient operating temperature: -20 to 40° C (-4 to 104° F)
• Ambient operating humidity: 10 to 90% noncondensing
• Microphone: Yes (Can be disabled)
• Speaker: Yes
• Web application: UniFi Protect: Version 1.10.0 and later
• Mobile app: UniFi Protect iOS™ and Android™
• Enclosure material: Aluminum alloy, polycarbonate, hard-coated dome
• Mount material: Polycarbonate, stainless steel
• Weatherproofing: IPX4
• Resistance: IK08
• Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, masking, text overlay
• LED: R/G/B/W
• Button: Factory reset
• Mounting: Surface mount
• Certifications: FCC, IC, CE
• Night Vision: Yes
• HD Recording: Yes
• Night Vision Distance: 29.53 ft
• Infrared (IR) Cut-off Filter: Yes
• Night Vision Type: Infrared
• Image Sensor Type: CMOS
• Effective Camera Resolution: 5 Megapixel
• Field of View: 360deg
• Color Supported: Color
• Maximum Video Resolution: 1920 x 1920
• Audio Support: Yes
• Remote Management: Yes
• Network (RJ-45): Yes
• Power Source Type: DC
• Input Voltage: 57 V DC
• Product Material: Polycarbonate
• Durability: Weather Resistant
• Vandal Resistant: Yes
• Form Factor: Fisheye
• Minimum Operating Temperature: -4deg F (-20deg C)
• Maximum Operating Temperature: 104deg F (40deg C)
• Maximum Operating Humidity: 90%
• Indoor/Outdoor: Indoor/Outdoor
• Impact Protection Rating: IK08
• Ingress Protection Rating: IPX4
• Camera Style: Fisheye
• Compliance: NDAA Compliant
• Environmental: Outdoor
• Max Power Consumption: 8.64 Watts
• Night Vision Range (ft): 30
• Operating Humidity: 0% to 90% (non-condensing)
• Operating Temperature: -20 °C to 40 °C (-4 °F to 104 °F)
• Power Supply: PoE
• Sensor Size: 5MP
• Technology: Network (IP)
