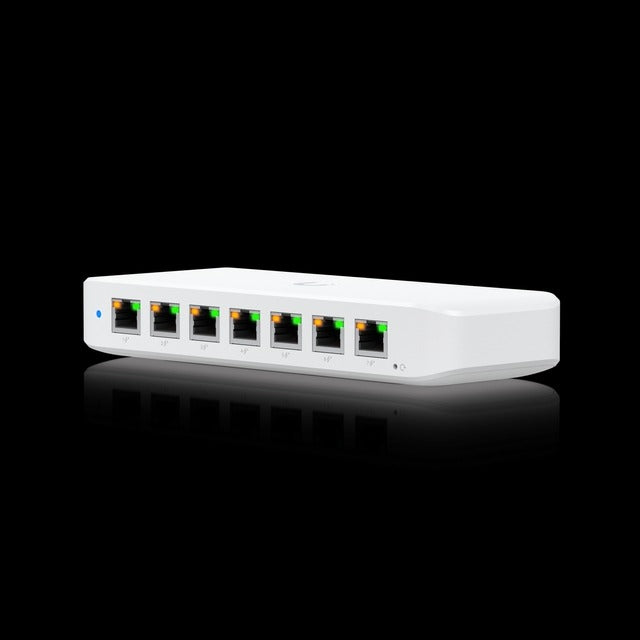

Ubiquiti usw-ultra-210w 8-port Gbe Poe Switch 202W

Product Description

The UBIQUITI usw-ultra-210w is a compact Layer 2 managed switch designed for network installations where space and power flexibility are priorities. It provides seven GbE PoE+ output ports and one GbE port that supports optional PoE++ input, giving installers the choice of AC or PoE-sourced power. With 202W of total PoE availability when powered by the included AC adapter, the switch can support a full complement of PoE-powered devices such as access points, IP cameras, and VoIP phones. Versatile mounting options make it suitable for a range of installation environments.

This switch is suited for small commercial and residential network deployments where a compact footprint is required. It fits well in structured wiring enclosures, equipment racks, or surface-mount applications. The PoE++ input capability allows the switch itself to be powered over an existing Ethernet run, which simplifies cable management in locations where AC power is not readily accessible at the switch location. Licensed network technicians and low-voltage installers typically handle deployment in both new construction and retrofit scenarios.

Key Features

• Seven GbE PoE+ output ports for powering downstream devices
• One GbE port with optional PoE++ input, allowing the switch to be powered over Ethernet
• 202W total PoE availability with included AC power adapter
• Layer 2 switching for VLAN and network segmentation support
• Compact form factor with versatile mounting options for flexible installation

Compatibility

Designed as an OEM-style Layer 2 GbE PoE switch suitable for integration into standard structured wiring and network switching applications.

Installation Notes

Installation should be performed by a qualified low-voltage or network technician in accordance with applicable local codes and TIA/EIA structured cabling standards. De-energize any upstream PoE source before connecting or disconnecting ports. When using PoE++ input for switch power, confirm the upstream PoE budget is sufficient before enabling downstream PoE output ports. Ensure the mounting surface and enclosure provide adequate ventilation for continuous operation.

Technical Specifications

• Switch Type: Layer 2
• Total Ports: 8
• PoE Output Ports: 7 x GbE PoE+
• Uplink/Input Port: 1 x GbE with optional PoE++ input
• Total PoE Availability: 202W
• Port Speed: Gigabit Ethernet (1000 Mbps)

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: usw-ultra-210w
