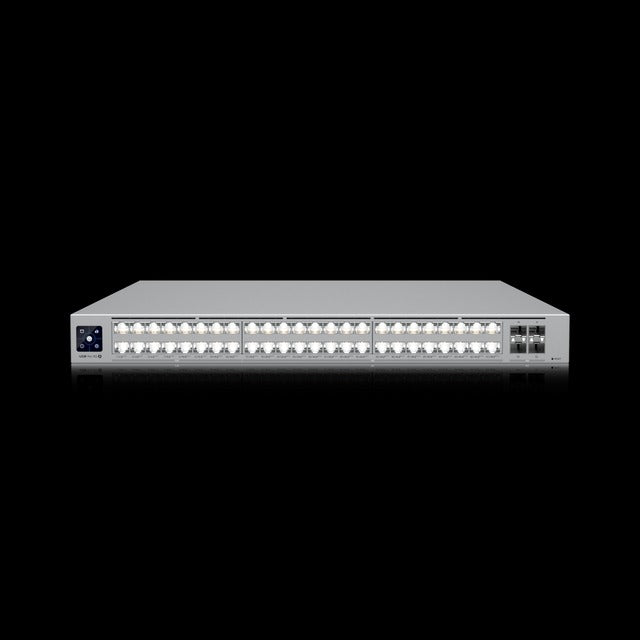

Ubiquiti usw-pro-xg-48-poe 48-port Layer 3 Poe Switch

Product Description

The UBIQUITI usw-pro-xg-48-poe is a professional-grade, 48-port Layer 3 managed PoE switch designed for high-density network deployments. It delivers 32 ports of 10 GbE and 16 ports of 2.5 GbE, all PoE+++ capable at up to 90 watts per port, for a total PoE budget of 1,080 watts. Four 25G SFP28 uplink ports provide high-throughput backbone connectivity. Etherlighting ports illuminate to indicate port location, link speed, and native VLAN or network assignment, giving technicians a fast visual reference during installation and troubleshooting. Network engineers and IT professionals deploy this switch in demanding enterprise or commercial environments.

This switch is suited for commercial and enterprise network installations where high-speed PoE density is required. The combination of 10 GbE and 2.5 GbE access ports supports power-hungry endpoint devices such as Wi-Fi 6 and Wi-Fi 6E access points, IP cameras, and VoIP systems. DC power backup support is available and requires a compatible UniFi RPS unit. Pairing the Etherlighting ports with UniFi Etherlighting Patch Cables delivers optimal port illumination for high-density patch environments.

Key Features

• 32 x 10 GbE PoE+++ ports, each capable of up to 90 watts output
• 16 x 2.5 GbE PoE+++ ports, each capable of up to 90 watts output
• 4 x 25G SFP28 uplink ports for high-speed backbone connectivity
• 1,080 watts total PoE availability across all ports
• Etherlighting port illumination shows location, link speed, and native VLAN assignment
• DC power backup ready with a compatible UniFi RPS unit

Compatibility

Etherlighting visual indicators are optimized when used with UniFi Etherlighting Patch Cables. DC power backup functionality requires a compatible UniFi RPS unit. Designed as a Layer 3 managed switch for integration into UniFi-managed network environments.

Installation Notes

Installation should be performed by a qualified network engineer or IT professional familiar with Layer 3 switching, VLAN configuration, and structured cabling standards. Power down or disconnect all endpoints before servicing port hardware or seating SFP28 modules. Follow local electrical codes and TIA-568 structured cabling standards when running patch and backbone cables. Do not exceed the total 1,080-watt PoE budget across simultaneously powered devices.

Technical Specifications

• Switch Architecture: Layer 3 managed
• 10 GbE PoE+++ Ports: 32
• 2.5 GbE PoE+++ Ports: 16
• 25G SFP28 Uplink Ports: 4
• Max PoE Per Port: 90 watts
• Total PoE Budget: 1,080 watts
• PoE Standard: PoE+++

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: usw-pro-xg-48-poe
