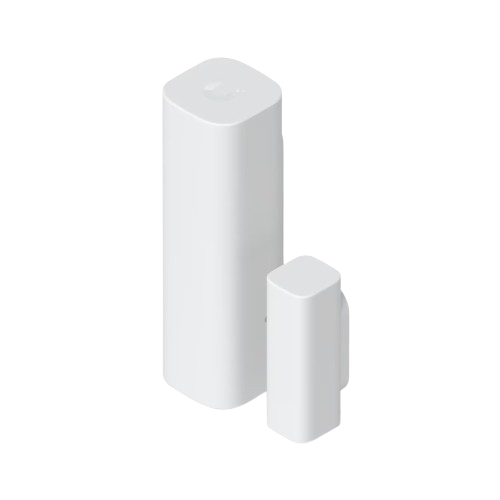

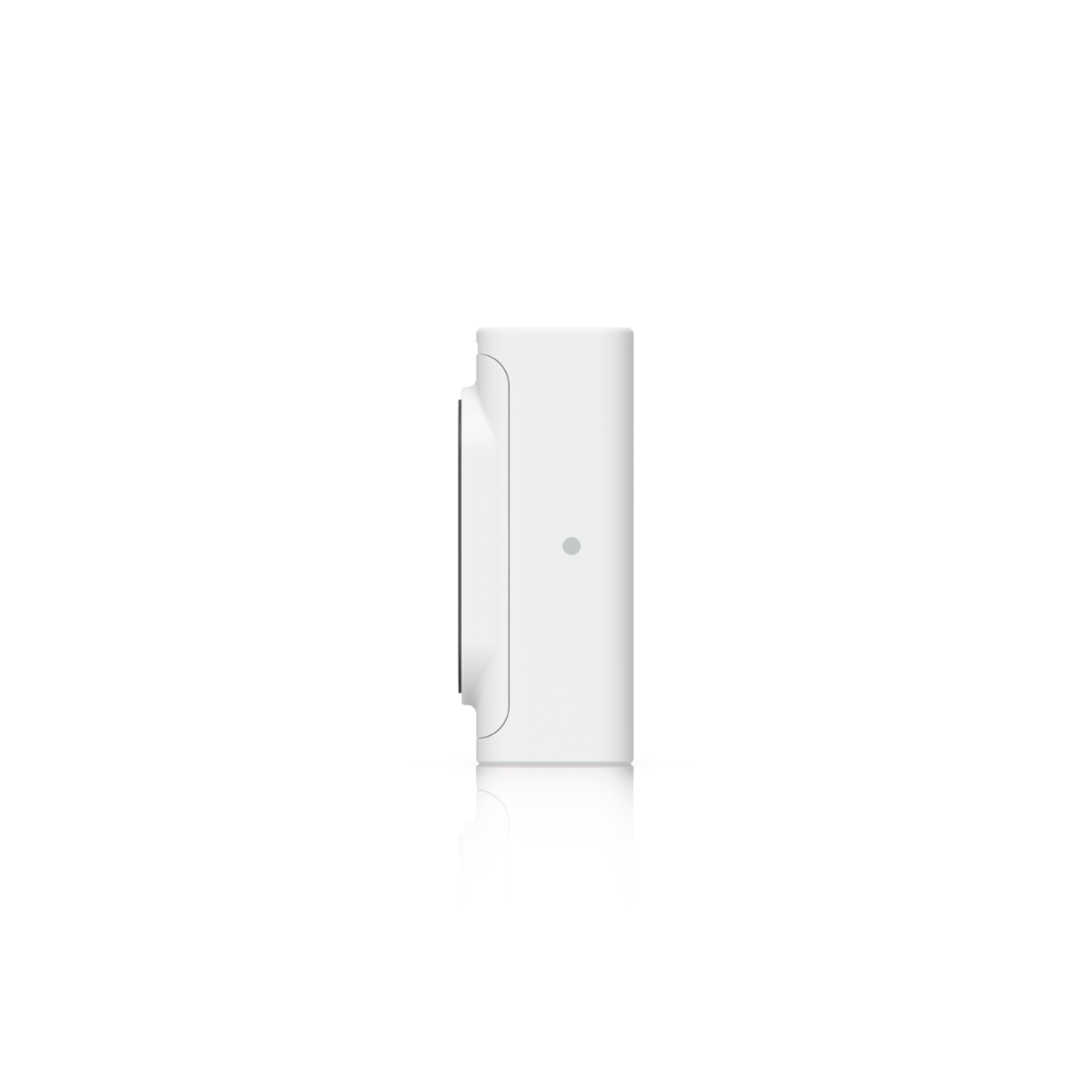

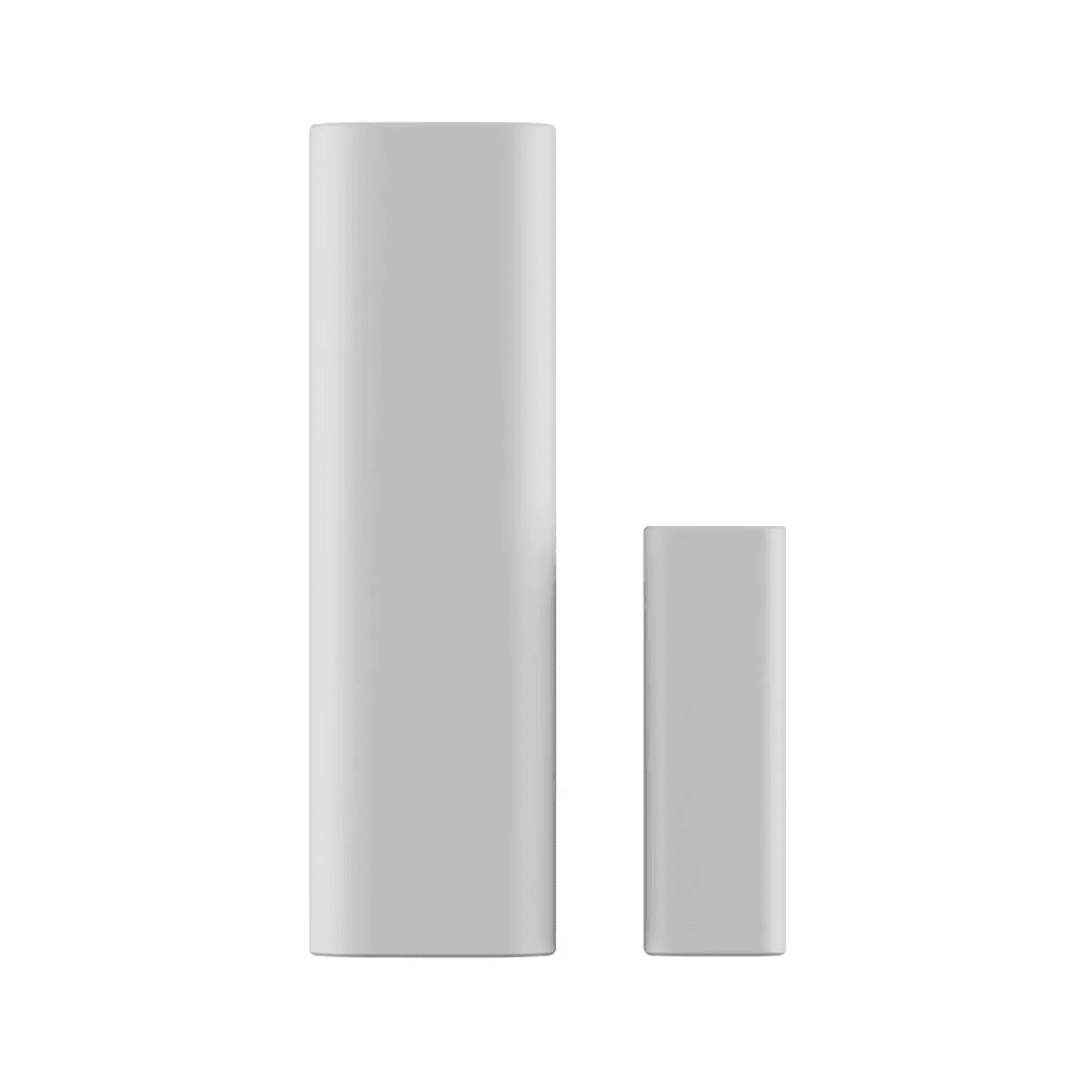

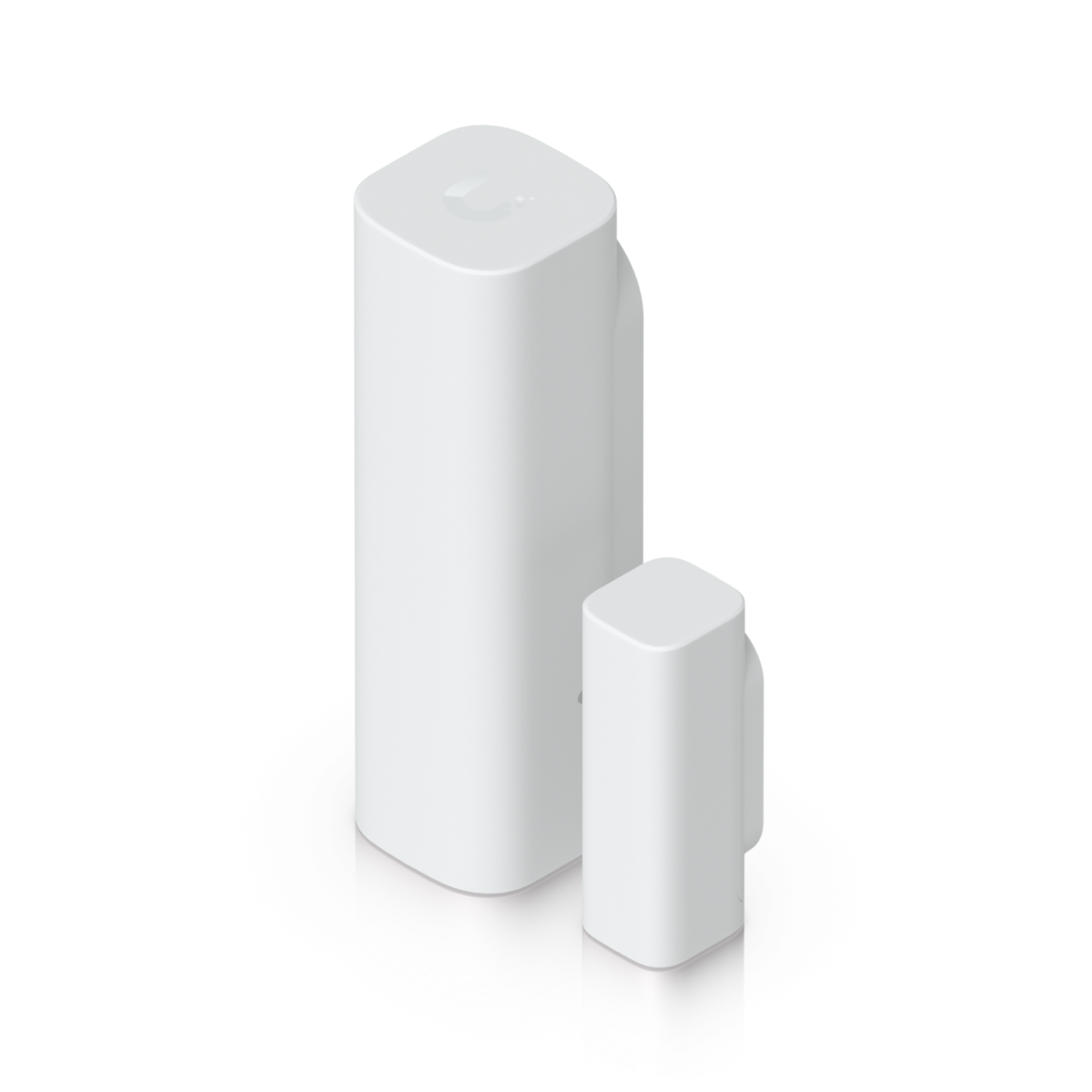

Ubiquiti USL-ENTRY Entry Sensor SuperLink 2 km Range 6-Year Battery

Product Description

The UBIQUITI USL-ENTRY Entry Sensor is a SuperLink sensor with up to 6-year battery life, designed for monitoring door and window open/closed status. The integrated magnetic contact sensor detects door open and close events with precision, supporting up to a 30 mm gap between the sensor and magnet. It uses the UniFi Protect application suite.

• SuperLink sensor
• Up to 6-year battery life
• Monitors door and window open/closed status

Product Highlights

This sensor features a long-distance, low-power connection and can be mounted with adhesive or screws. It has a SuperLink range of up to 2 km.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: USL-ENTRY

Technical Specifications

• Dimensions Device: 75.5 x 23.5 x 22.5 mm (3 x 0.93 x 0.89")
• Dimensions Magnet: 39 x 15.1 x 12.9 mm (1.5 x 0.6 x 0.5")
• Mounting: Adhesive and screw mount
• UniFi Application Suite: Protect
• Connectivity: SuperLink (Proprietary)
• Operating Frequency US: 915.6–927.6 MHz
• Operating Frequency EU: 865.1–869.5 MHz
• Antenna Gain SuperLink: 0 dBi
• Max. TX Power SuperLink: 14 dBm
• Max. Range SuperLink: 2 km (1.2 mi)
• Sensor Features Reed Switch: ✓
• Max. Power Consumption: 27.7mW
• Supported Voltage Range: 3V
• Power Method: Lithium battery CR123A
• Battery Life: Up to 6 years
• Weight Device: 41 g (1.4 oz)
• Weight Magnet: 22 g (0.8 oz)
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• Buttons: (1) Factory reset (1) Function button (1) Tamper switch
• LEDs: (1) Status: R/B/W (1) Signal: B/R
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• Certifications: FCC, IC, CE
• NDAA Compliant: ✓
• Application Requirements Web Application: UniFi Protect
• Mobile App: UniFi Protect iOS™ and Android™
