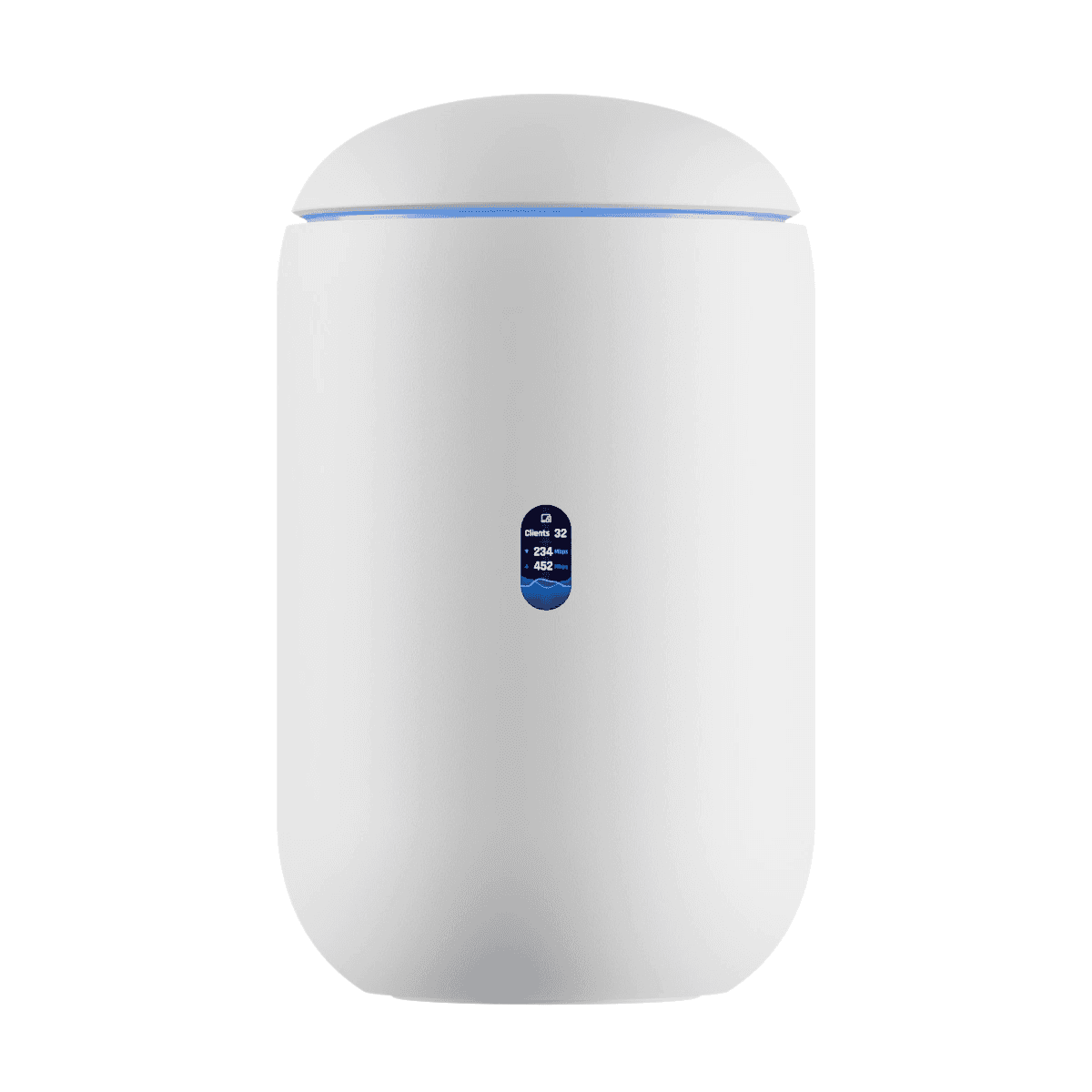

Ubiquiti UDR7 Dream Router 7

Product Description

The UBIQUITI UDR7 Dream Router 7 is a desktop 10G cloud gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support. It runs the full UniFi application suite with support for 30+ managed UniFi devices and 300+ simultaneously connected users. The router features a 2.5 GbE RJ45 port and a 10G SFP+ port.

• Full UniFi Suite Support
• Runs the full UniFi application suite with support for 30+ managed UniFi devices and 300+ simultaneously connected users.
• Integrated WiFi

Product Highlights

The Dream Router 7 is a compact desktop router with integrated WiFi 6/6E, WiFi 7, and a UniFi Application Suite.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UDR7

Technical Specifications

• UniFi Application Suite: Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
• Managed UniFi Devices: 30+
• Simultaneous Users Connected: 300+
• Max. WAN Port Count: 4
• Default WAN Ports: (1) 10G SFP+, (1) 2.5 GbE RJ45
• Port Layout 2.5 GbE RJ45: 4 (1 PoE) (2.5G/1G/100M/10M)
• Port Layout 10G SFP+: 1 (10G/1G)
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop
• Coverage Area: 160 m² (1,750 ft²)
• Stateful Firewall: ✓
• Application-Aware Layer 7 Firewall: ✓
• DPI & Traffic Identification: ✓
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
• Content Filtering: ✓
• Intrusion Prevention (IPS/IDS): ✓
• Ad Blocking: ✓
• IDS/IPS Signatures: 20,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: ✓
• License-Free SD-WAN: ✓
• Site-to-Site VPN Site Magic: ✓
• Site-to-Site VPN IPsec: ✓
• Site-to-Site VPN OpenVPN: ✓
• VPN Server Identity Endpoint One-Click VPN: ✓
• VPN Server Teleport Zero-Configuration VPN: ✓
• VPN Server WireGuard: ✓
• VPN Server OpenVPN: ✓
• VPN Server L2TP: ✓
• VPN Client OpenVPN: ✓
• VPN Client WireGuard: ✓
• Multi-WAN Load Balancing: ✓
• Dynamic Routing OSPF: ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 2,000
• Policy-based WAN and VPN Routing: ✓
• Customizable DHCP Server: ✓
• IPv6 ISP Support: ✓
• IGMP Proxy: ✓
• Virtual Network Override: ✓
• WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
• Throughput 6 GHz: 5.7 Gbps
• Throughput 5 GHz: 4.3 Gbps
• Throughput 2.4 GHz: 688 Mbps
• MIMO 6 GHz: 2 x 2 (DL/UL MU-MIMO)
• MIMO 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• MIMO 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• Antenna Gain 6 GHz: 6 dBi
• Antenna Gain 5 GHz: 7 dBi
• Antenna Gain 2.4 GHz: 5 dBi
• Max. TX Power 6 GHz: 24 dBm
• Max. TX Power 5 GHz: 26 dBm
• Max. TX Power 2.4 GHz: 23 dBm
• Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• Max. BSSIDs: 4 per Radio
• Supported Data Rates 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
• Supported Data Rates 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• Supported Data Rates 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• Supported Data Rates 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• Supported Data Rates 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Supported Data Rates 802.11b: 1, 2, 5.5, 11 Mbps
• Supported Data Rates 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• NVR Storage: Pre-installed 64GB microSD for NVR
• Expansion Slot: MicroSD Card
• PoE Budget: 15.4W
• Max. PoE Wattage per Port by PSE PoE: 15.4W
• Voltage Range PoE Mode: 44-57V
• Max. Power Consumption: 26W (Excluding PoE output)
• Power Method: Universal AC input, 100–240V AC, 1.5A Max, 50/60 Hz
• Power Supply: AC/DC, Internal, 50W
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 89 BTU/hr (Excluding PoE Output)
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• Enclosure Material: Polycarbonate
• LCM Display: 0.96" status display
• Management Ethernet: ✓
• Management Bluetooth: ✓
• LEDs System: ✓
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 05650-25-08356
• VLAN: 802.1Q
• Guest Traffic Isolation: ✓
• Application Requirements UniFi Network: Version 9.0.108 and later
• Brand: Ubiquiti Networks
• Model Name: UDR7
• Special Feature: Advanced Network Management, High-Speed Connectivity Options
• Frequency Band Class: Quad-Band
• Wireless Communication Standard: 802.11ad, 802.11ax
• Compatible Devices: UniFi devices
• Recommended Uses For Product: Home
• Connectivity Technology: Ethernet
• Antenna Type: Fixed
• Item model number: UB-UCG-UDR7
• Type: Cloud Gateways
• Series: WiFi Integrated
• Wireless Standard: BE5700
• Wireless Technology: 802.11b
• Antenna: Internal
• Data Rates: WiFi 6 (802.11ax) Data Transfer Rate Up to 2400Mbps
• Security: VLAN Segmentation
• IPS/IDS Threat Detection: VPN Features
• VPN Support: L2TP
• Ports & Connectors: 3 x 10/100/1000 LAN
