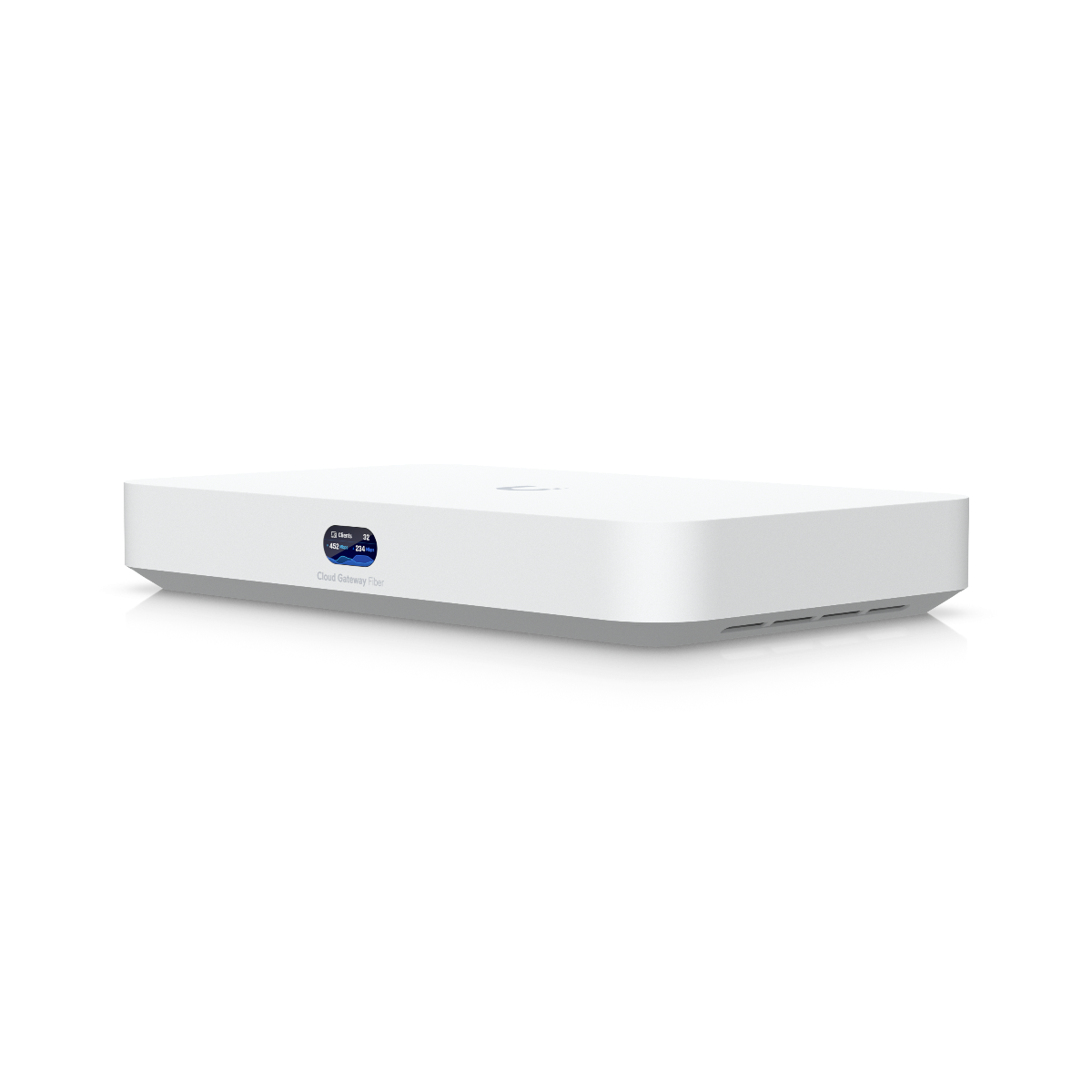

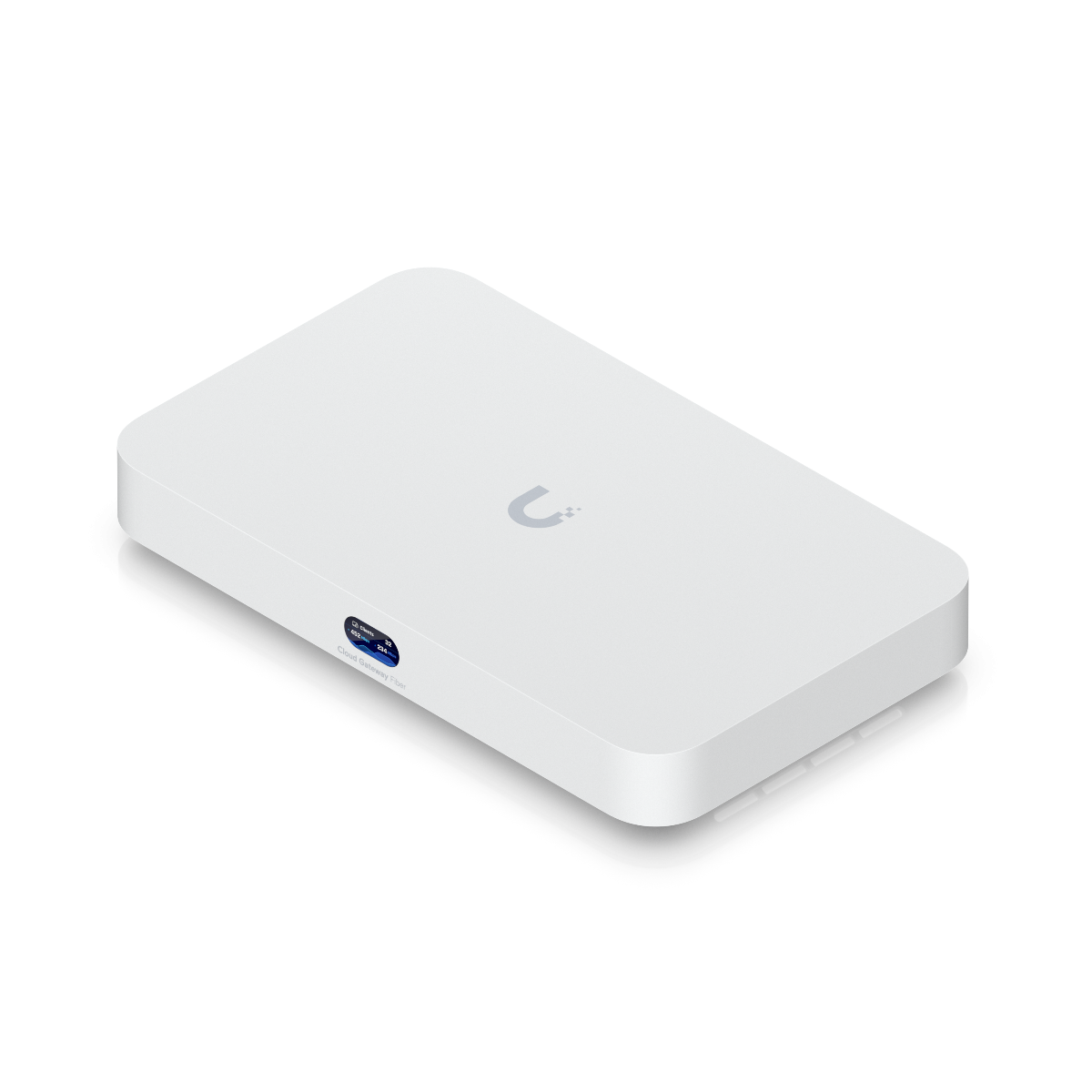

Ubiquiti UCG-FIBER Cloud Gateway Fiber

Product Description

The UBIQUITI UCG-FIBER Cloud Gateway Fiber is a desktop gateway designed for managing UniFi devices. It features a suite of UniFi applications and supports 50+ managed UniFi devices and 500+ simultaneous users. The gateway has a maximum of 6 WAN ports, including 10G SFP+ and 10 GbE RJ45 ports, and offers IDS/IPS throughput of 5 Gbps.

• Full UniFi Suite Support
• Compact desktop form factor
• IDS/IPS throughput of 5 Gbps

Product Highlights

This gateway supports license-free SD-WAN, site-to-site VPN, dynamic routing, advanced QoS, and an integrated RADIUS server.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UCG-FIBER

Technical Specifications

• UniFi Application Suite: Network ✓, Protect ✓, Access ✓, Talk ✓, Connect ✓
• Managed UniFi Devices: 50+
• Managed Cameras: (15) HD, (8) 2K, (5) 4K
• Managed Access Hubs: 50
• Simultaneous Users Connected: 500+
• Max. WAN Port Count: 6
• Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45

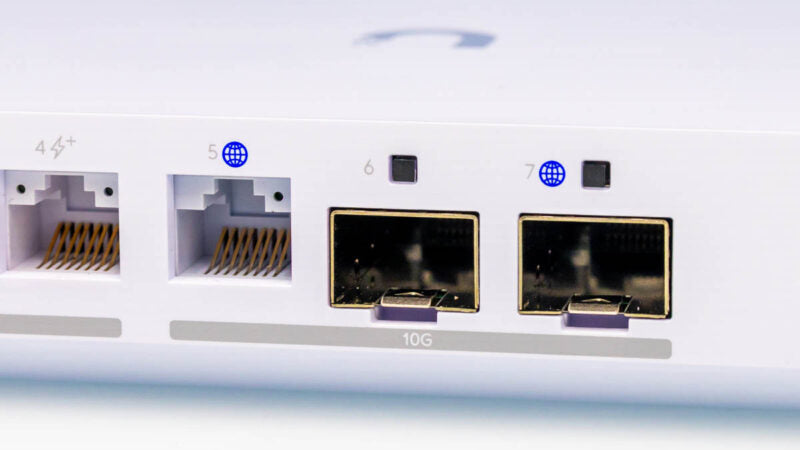

• Port Layout: 2.5 GbE RJ45: 4 (2.5G/1G/100M/10M), 10 GbE RJ45: 1 (10G/2.5G/1G), 10G SFP+: 2 (10G/1G)
• IDS/IPS Throughput: 5 Gbps
• Form Factor: Compact desktop
• Stateful Firewall: ✓
• Application-Aware Layer 7 Firewall: ✓
• DPI & Traffic Identification: ✓
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
• Content Filtering: ✓
• Intrusion Prevention (IPS/IDS): ✓
• Ad Blocking: ✓
• IDS/IPS Signatures: 55,000+ with CyberSecure
• VLAN/Subnet-based Traffic Segmentation: ✓
• License-Free SD-WAN: ✓
• Site-to-Site VPN Site Magic: ✓
• IPsec: ✓
• OpenVPN: ✓
• VPN Server Identity Endpoint One-Click VPN: ✓
• Teleport Zero-Configuration VPN: ✓
• WireGuard: ✓
• L2TP: ✓
• VPN Client OpenVPN: ✓
• Multi-WAN Load Balancing: ✓
• Dynamic Routing OSPF: ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 4,000
• Virtual Network Override All Traffic Flows: ✓
• NVR Storage: Selectable NVMe SSD up to 2 TB
• PoE Budget: 30W
• Voltage Range PoE Mode: 50-57V
• Max. Power Consumption: 29.4W (Excluding PoE output)
• Power Method: DC jack (54V DC/1.1A)
• Power Supply: 54V DC/1.1A (Adapter included)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 100 BTU/hr (Excluding PoE Output)
• Processor: Quad-core ARM® Cortex®-A73 at 2.2 GHz
• System Memory: 3 GB
• Enclosure Material: Polycarbonate
• LCM Display: 0.96" status display
• Management: Ethernet, Bluetooth
• LEDs Ethernet: ✓
• SFP+: ✓
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, SRRC, Anatel: 04395-25-08356
• Type: Cloud Gateways
• Series: Compact
• Standard Memory: 3 GB
• Network Management: Managed
• Rack Mountable: No
• Stackable: No
• Data Transfer Rates: Network Speeds 100/1000/2500/5000Mbps/10Gbps
• Connector Type: RJ-45, SFP+
• Managed Options: Security Protocols VLANs: Subnet-based
• Port Types: LAN WAN SFP+
• Operating Temperature Range: 0° - 40° C (32° to 104°F)
• Operating Humidity Range: 5% to 95% Non Condensing
• Power Input: 54V DC
