Product Description

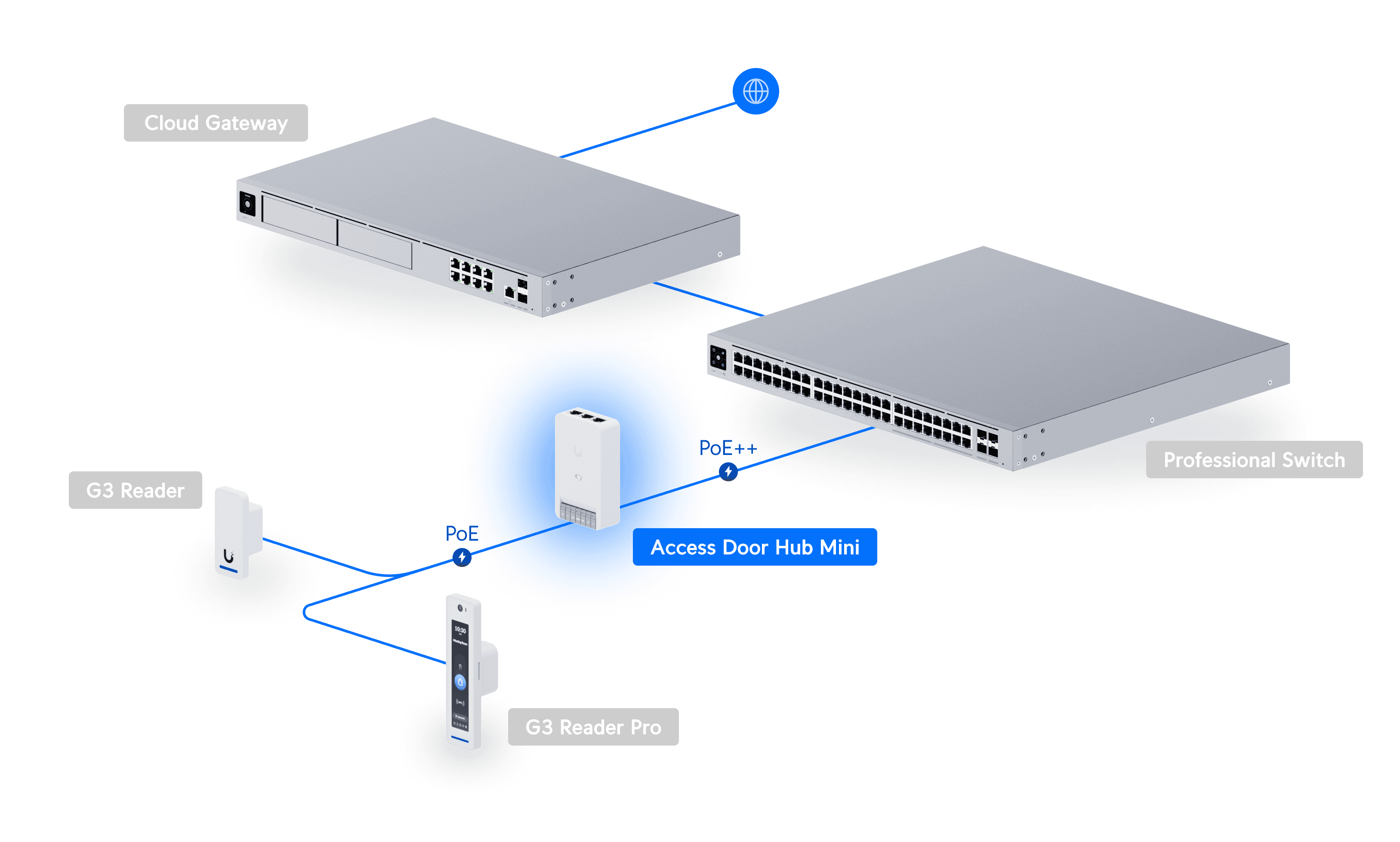

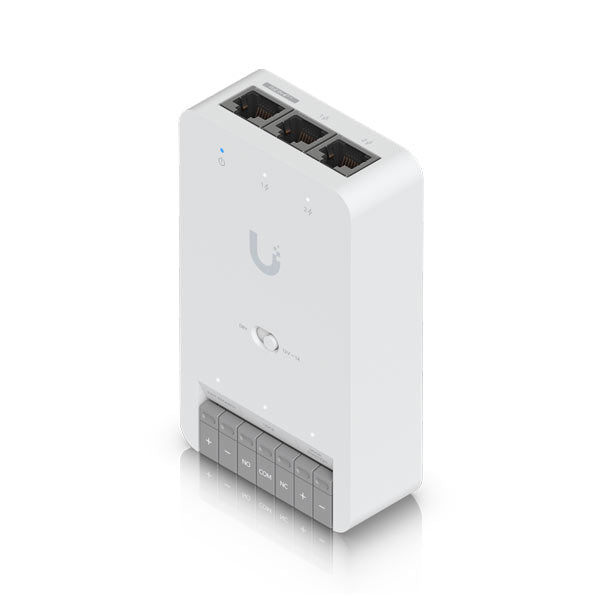

The UBIQUITI UA-HUB-DOOR-MINI Door Hub Mini is a compact access control hub designed for managing a single door. It supports up to 3,000 users and features input terminals for door exit requests and position monitoring. The device is powered via PoE++ and offers networking through three GbE RJ45 ports. It includes dry and wet output relays and is designed for indoor use.
- Supports 1 door
- Maximum user count of 3,000
- PoE++ powered
- Three GbE RJ45 ports
- Dry and wet output relays
- DIN-rail mounting
Product Highlights
Compact access control for single door management with PoE++ support and multiple connectivity options.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: UA-HUB-DOOR-MINI
-
Country of Origin: Australia
Technical Specifications
-
Supported Doors: 1
-
Maximum User Count: 3,000
-

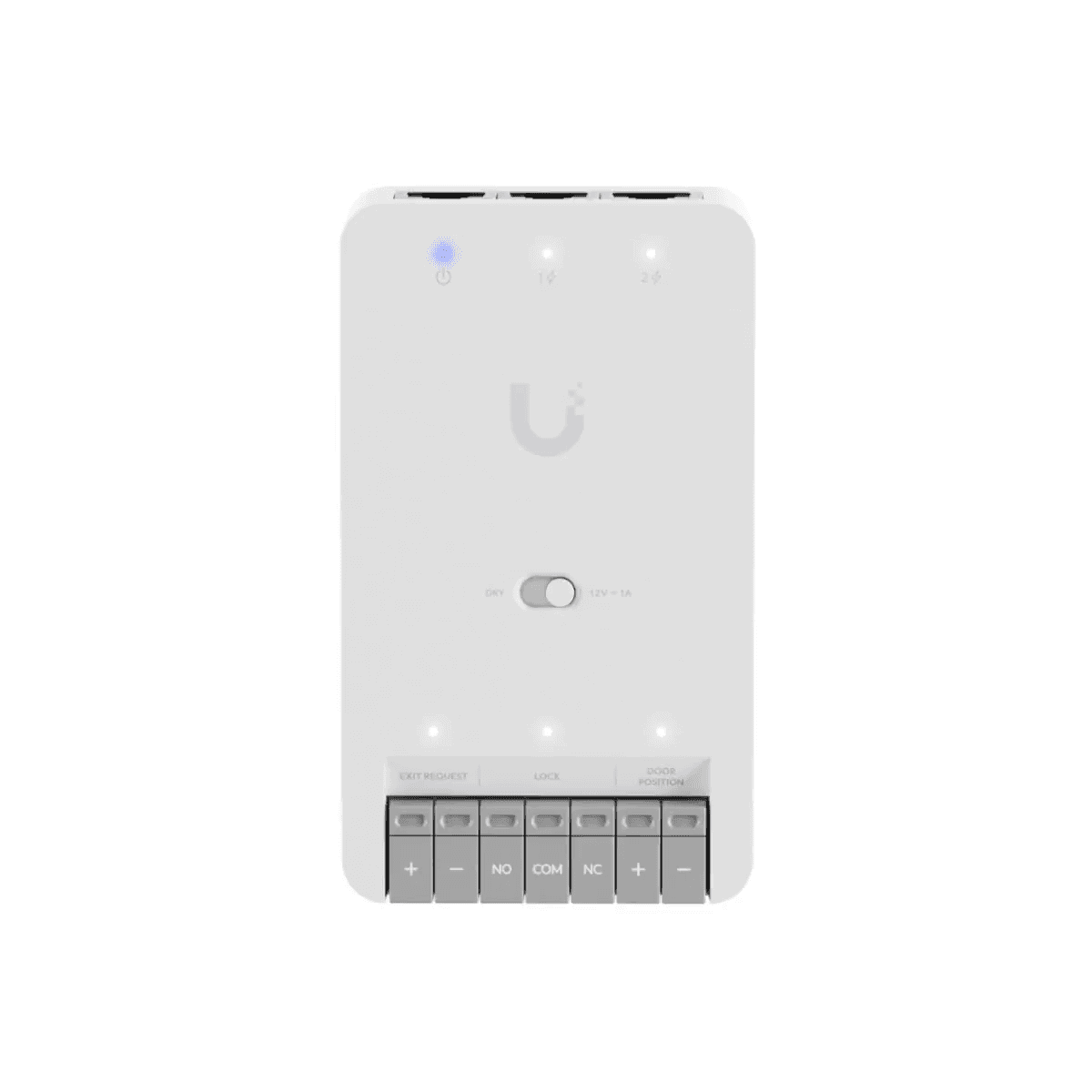

Input Terminals: (1) Door exit request, (1) Door position
-
Power Method: PoE++
-
UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
-
Enclosure Material: Polycarbonate, metal
-
Mounting: DIN-rail (Included)
-
Dry Output Relay: 30V DC, 1A
-
Wet Output Relay: 12V DC, 1A
-
Indoor and Outdoor Use: Indoor only
-
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
-
Ambient Operating Humidity: 5 to 90% noncondensing
-

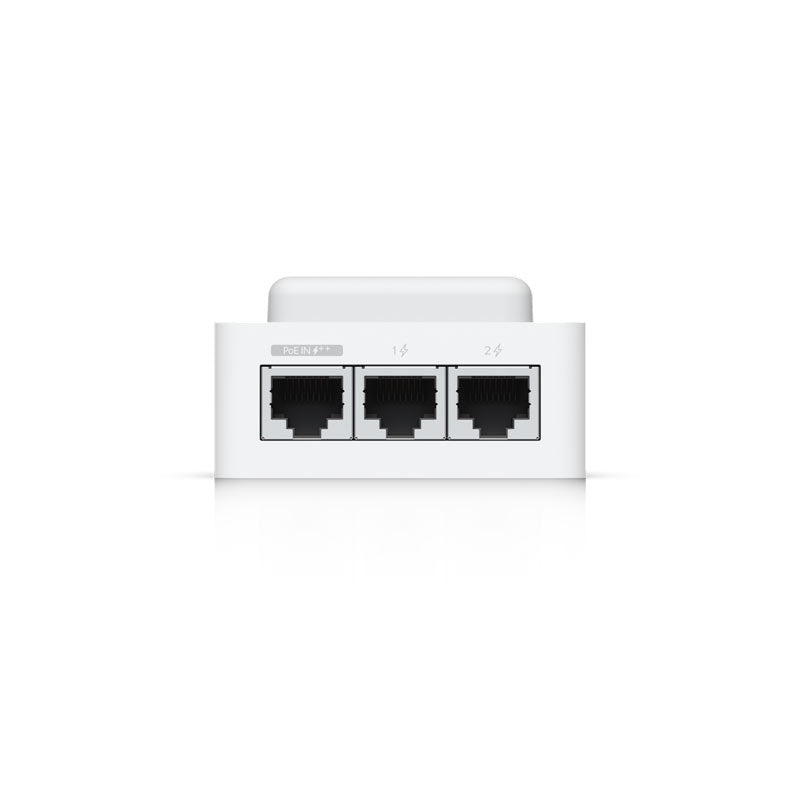

Networking Interface: (3) GbE RJ45 ports
-
PoE Interface: (1) PoE++ input, 50V DC, 1A, (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)
-
Max. Power Consumption: 19W (Without PoE output), 50W (With PoE output)
-
LEDs: W/B
-
Buttons: (1) Factory reset, (1) Dry/Wet switch
-
Recommend Max. Cable Length UA-Lock-Electric (400mA): 24 AWG length: 25 m (82 ft), 22 AWG length: 42 m (138 ft), 20 AWG length: 66 m (217 ft), 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-540kg (500mA): 24 AWG length: 12 m (29 ft), 22 AWG length: 20 m (66 ft), 20 AWG length: 30 m (98 ft), 18 UACC-Cable-DoorLockRelay length: 46 m (262 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-270kg (800mA): 24 AWG length: 12 m (29 ft), 22 AWG length: 20 m (98 ft), 20 AWG length: 30 m (167 ft), 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
-
Recommend Max. Cable Length Other locks (1A): 24 AWG length: 9 m (30 ft), 22 AWG length: 15 m (49 ft), 20 AWG length: 24 m (79 ft), 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
-
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
