Product Description

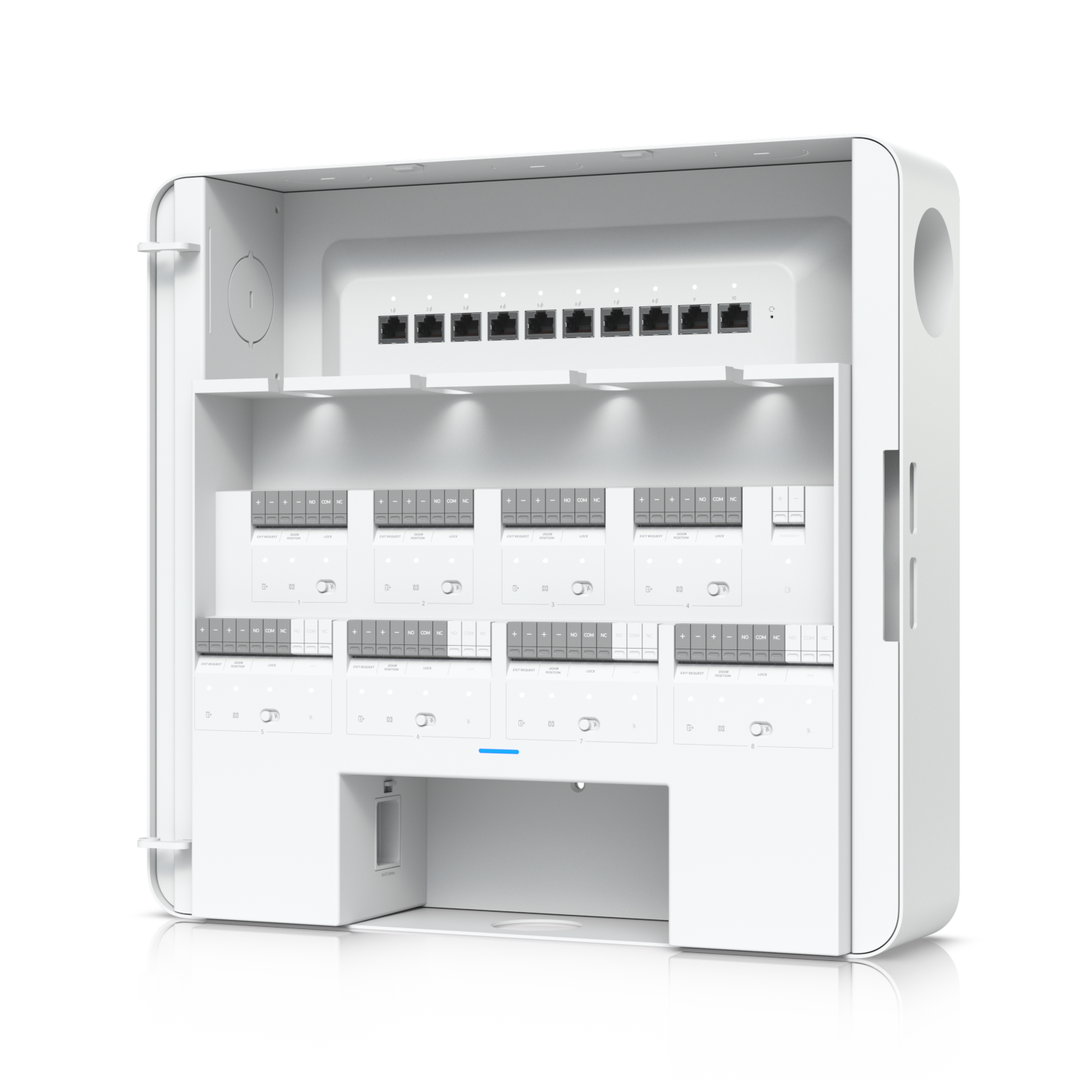

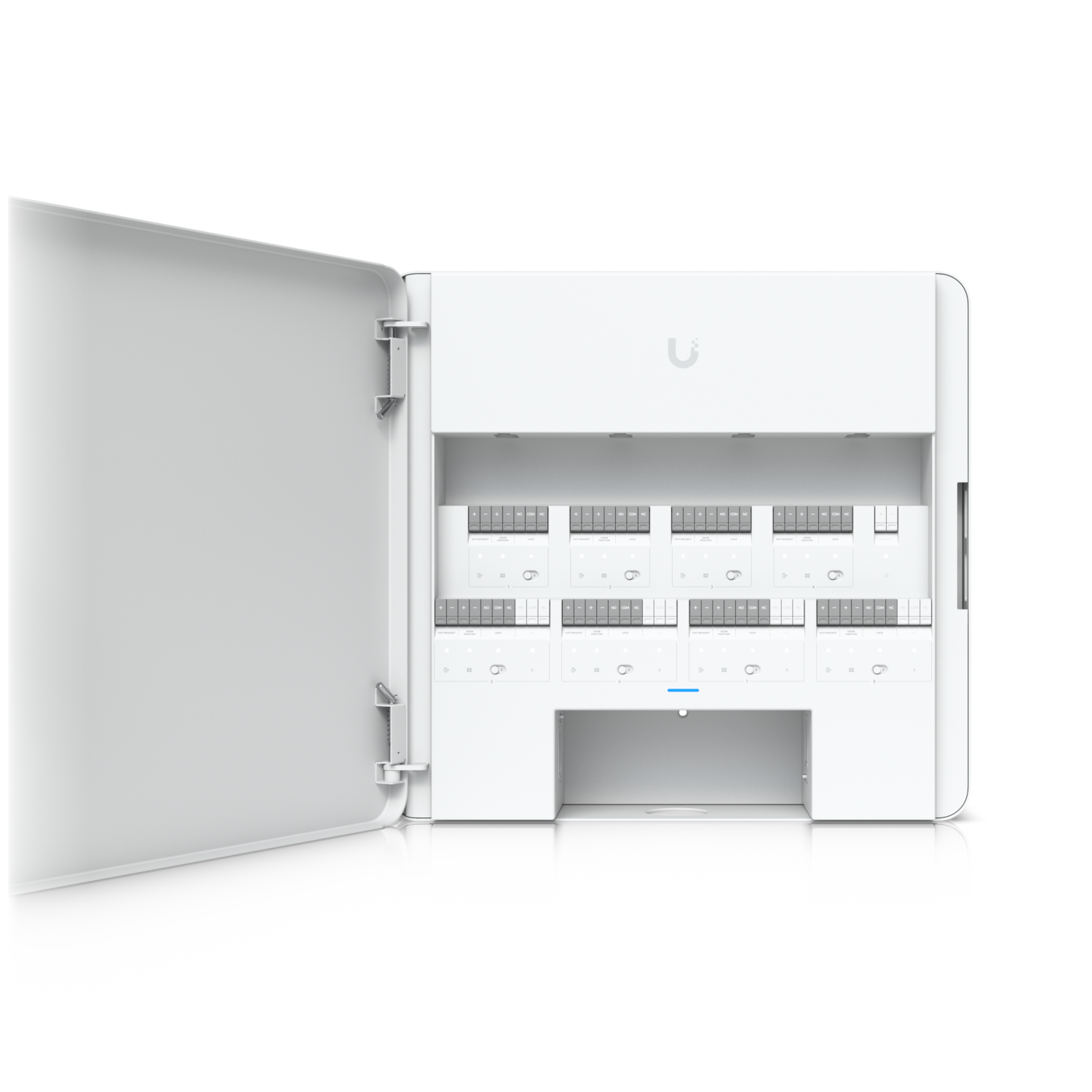

The UBIQUITI EAH-8 Enterprise Access Hub provides entry and exit control for up to eight doors with battery backup support. It supports a maximum user count of 10,000 and features input terminals for door exit requests, door position, and emergency situations. The device is NDAA compliant and has UL 294 Level I ratings.
- Supports 8 doors
- Maximum user count of 10,000
- Input terminals for door exit request, door position, and emergency
- NDAA Compliant
- UL 294 Level I ratings
- PoE+ outputs
Product Highlights
Enterprise-grade access hub with entry and exit control and battery backup support. Ideal for large-scale deployments, this hub integrates seamlessly with the UniFi Access application.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: EAH-8
-
Country of Origin: China
Technical Specifications
-
Supported Doors: 8
-
Maximum User Count: 10,000
-
Input Terminals: (8) Door exit request, (8) Door position, (1) Emergency
-
Power Method: Universal input, 100–240V AC, Max. 4.4A, 50/60 Hz, 32–48V DC Lead Acid Battery, Max. 7.5A @32V
-
NDAA Compliant: ✓
-
UL 294 Level: Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I
-
Digital Input: (8) Inputs for request-to-exit devices, (8) Inputs for door position sensors, (1) Emergency
-
Dry Output Relay: (8) Lock terminals (12V or Dry), (4) AUX terminals for advanced setup (Chime/Siren/Door opener)
-
Powered Output Relay: Lock: 12V DC, 1A/ Dry, Aux: Dry only
-
Indoor and Outdoor Use: Indoor only
-
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
-
Ambient Operating Humidity: 5 to 95% noncondensing
-
Networking Interface: (10) 10/100/1000 Base-T
-
PoE Interface: (8) PoE+
-
Power Supply: AC/DC, internal
-
Max. Power Consumption: 240W
-
Max. PoE Wattage per Port: 30W
-
LEDs: W/B
-
Buttons: (1) Factory reset
-
Recommend Max. Cable Length UA-Lock-Electric (400mA) 24 AWG length: 25 m (82 ft)
-
Recommend Max. Cable Length UA-Lock-Electric (400mA) 22 AWG length: 42 m (138 ft)
-
Recommend Max. Cable Length UA-Lock-Electric (400mA) 20 AWG length: 66 m (217 ft)
-
Recommend Max. Cable Length UA-Lock-Electric (400mA) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-540kg (500mA) 24 AWG length: 20 m (66 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-540kg (500mA) 22 AWG length: 32 m (105 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-540kg (500mA) 20 AWG length: 51 m (167 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-540kg (500mA) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-270kg (800mA) 24 AWG length: 12 m (29 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-270kg (800mA) 22 AWG length: 20 m (98 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-270kg (800mA) 20 AWG length: 30 m (167 ft)
-
Recommend Max. Cable Length UA-Lock-Magnetic-270kg (800mA) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
-
Recommend Max. Cable Length Other locks (1A) 24 AWG length: 9 m (30 ft)
-
Recommend Max. Cable Length Other locks (1A) 22 AWG length: 15 m (49 ft)
-
Recommend Max. Cable Length Other locks (1A) 20 AWG length: 24 m (79 ft)
-
Recommend Max. Cable Length Other locks (1A) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
-
CAN/ULC-60839-11-1 Grade: Grade assignment: I
-
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
-
Management Application: Access
-
Brand Name: Ubiquiti
-
Manufacturer: Ubiquiti Inc.
-
Manufacturer Part Number: EAH-8
-
Product Line: UniFi
-
Product Model: EAH-8-US
-
Product Series: UA
-
Product Type: Access Hub
-
Depth: 14"
-
Height: 4.1"
-
Width: 15"
-
Input Voltage: 44-57V DC
-
Display Screen Type: LED
-
Environmentally Friendly: Yes
-

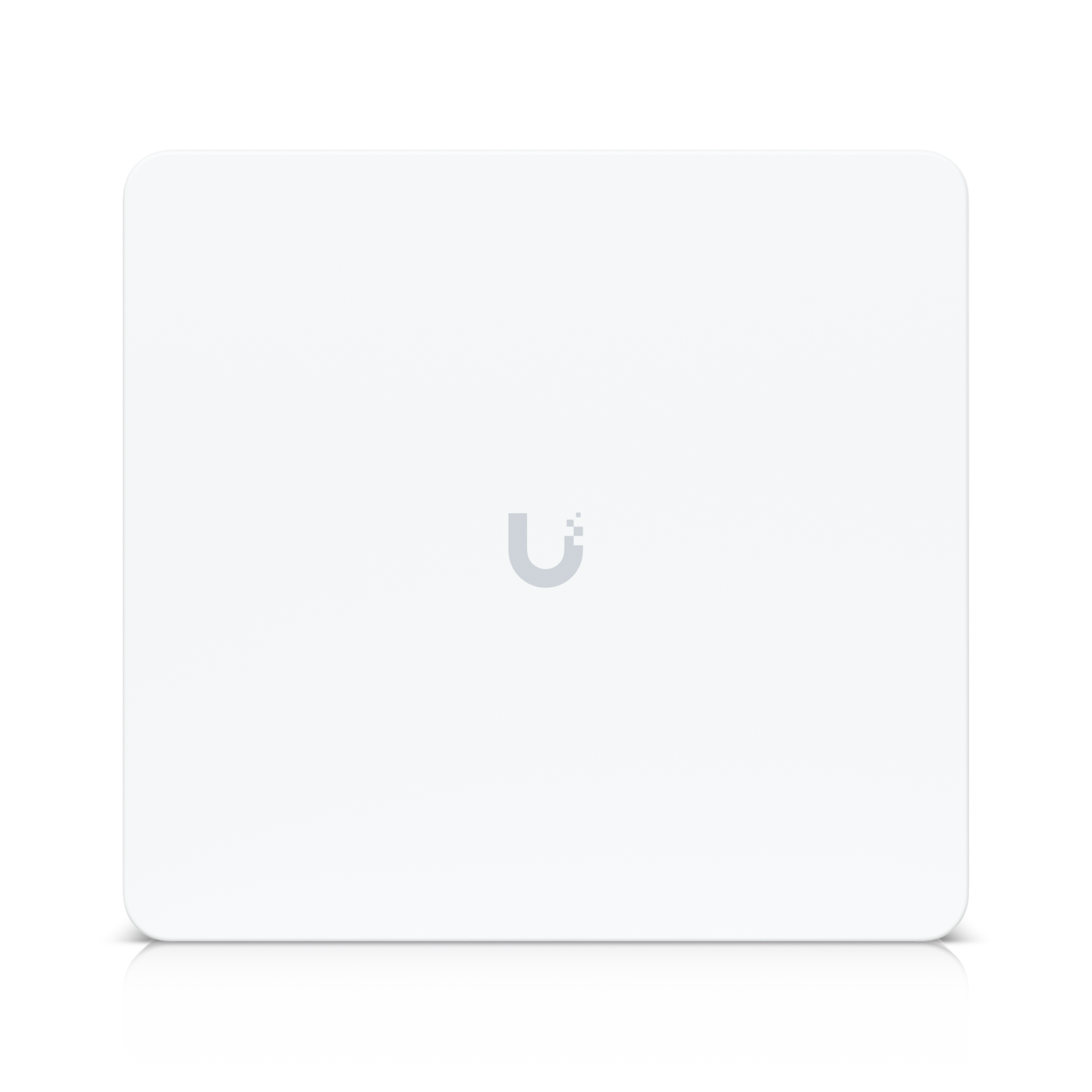

Enclosure Material: SGCC steel housing with polycarbonate cover
-
Mount Material: SGCC steel
-

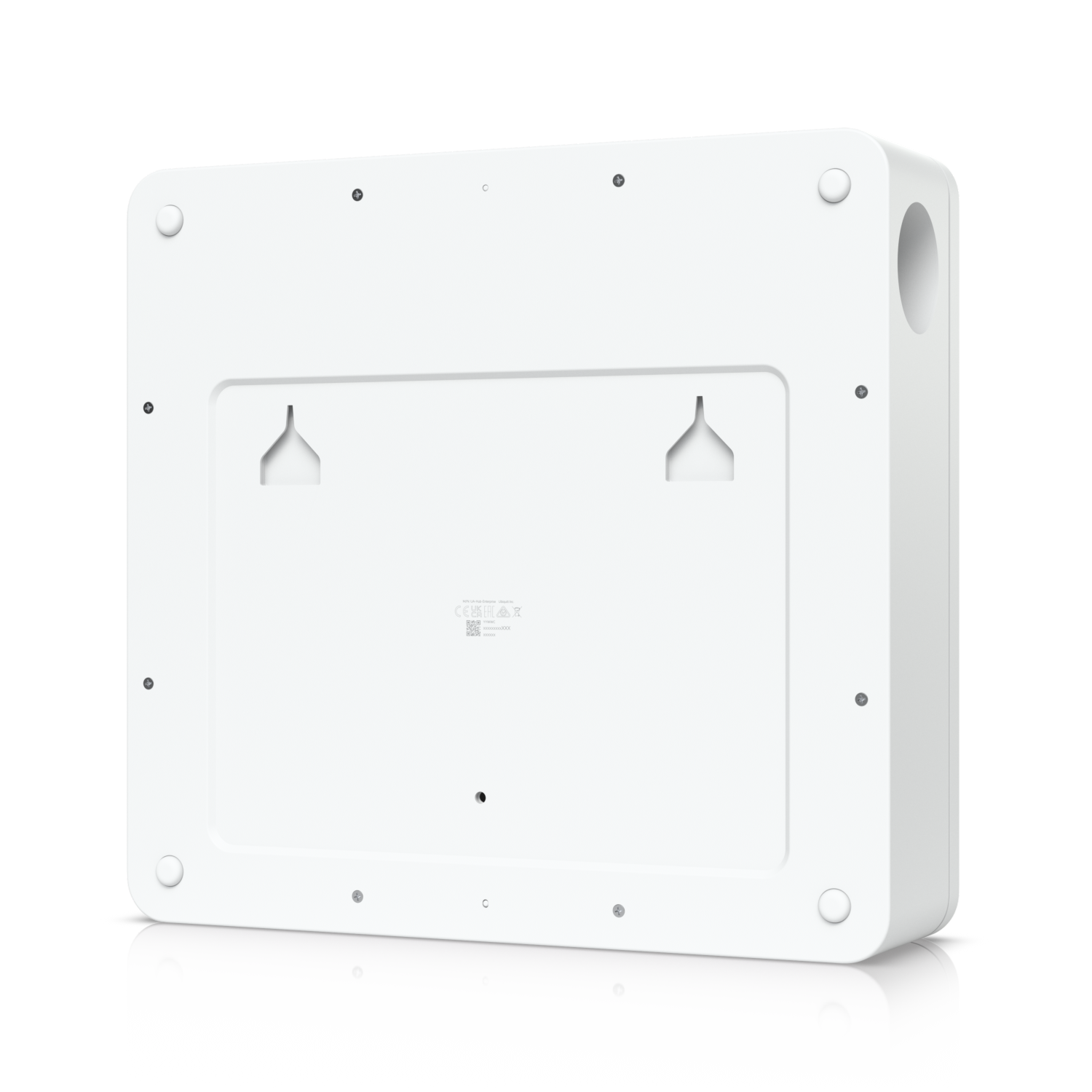

Mounting: Wall
-
Total Available PoE: 60W
-
PoE Cabling Requirements: Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2) for patch cords; 24 AWG (0.21 mm2) for horizontal or riser cable.
-
LED System: Steady blue: adopted, device is ready
Steady white: pending adoption
Blinking white/blue: upgrading firmware
Breathing white: system initiating
-
Voltage Range PoE Mode: 44–57V DC
-
Operating Environment: Indoor use only
-
Enclosure material: SGCC housing with PC cover
-
Mounting material: SGCC wall mount plate
