Description

Product Description

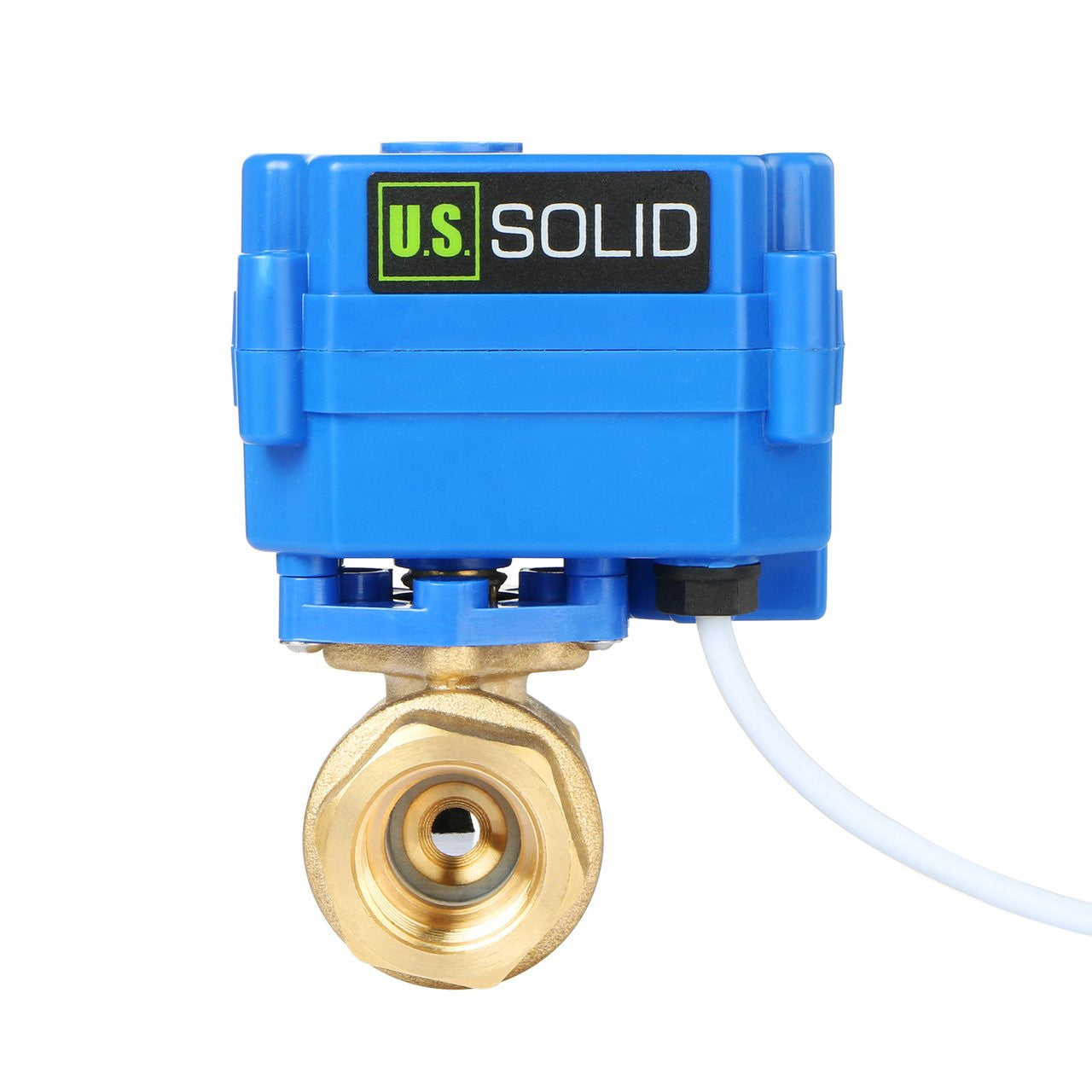

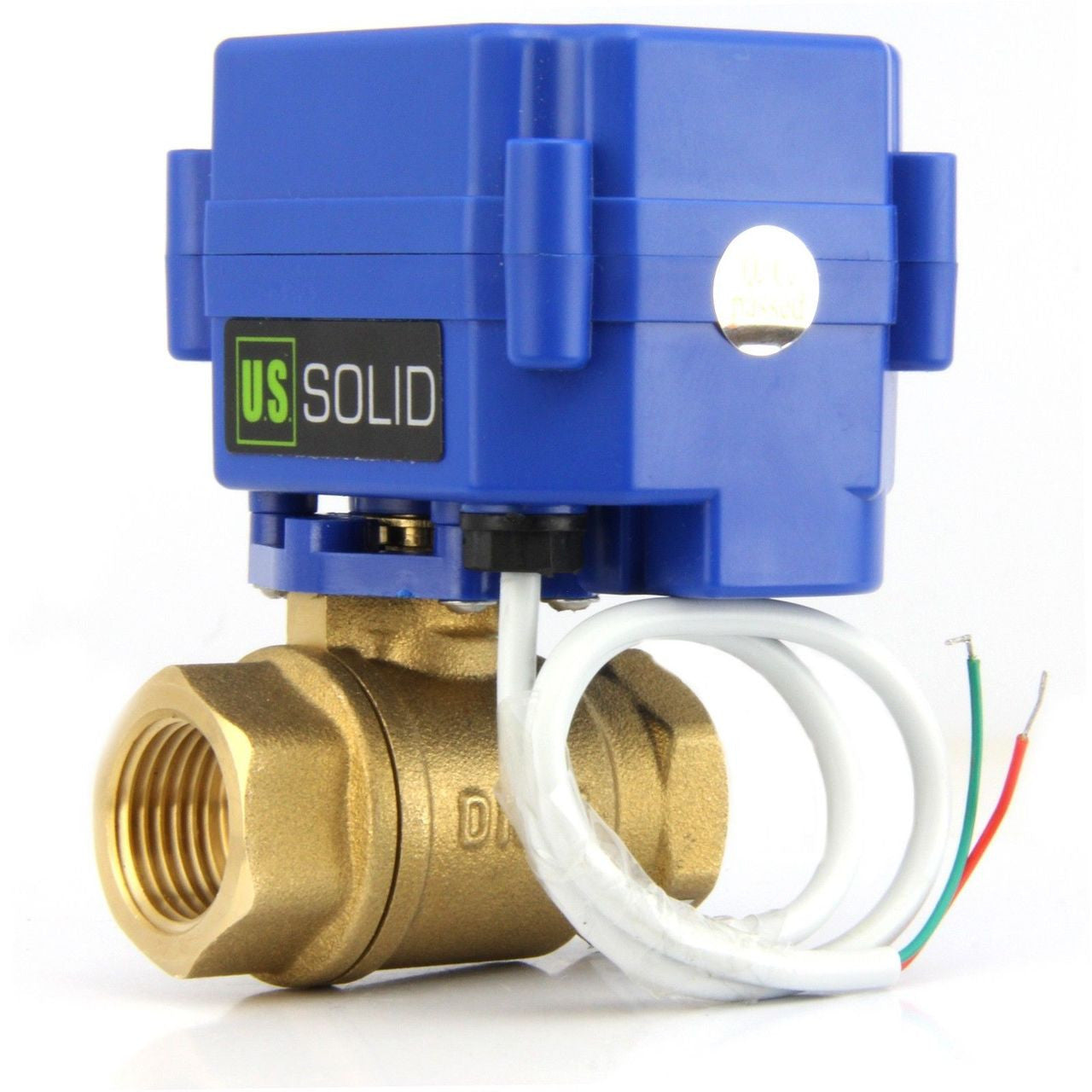

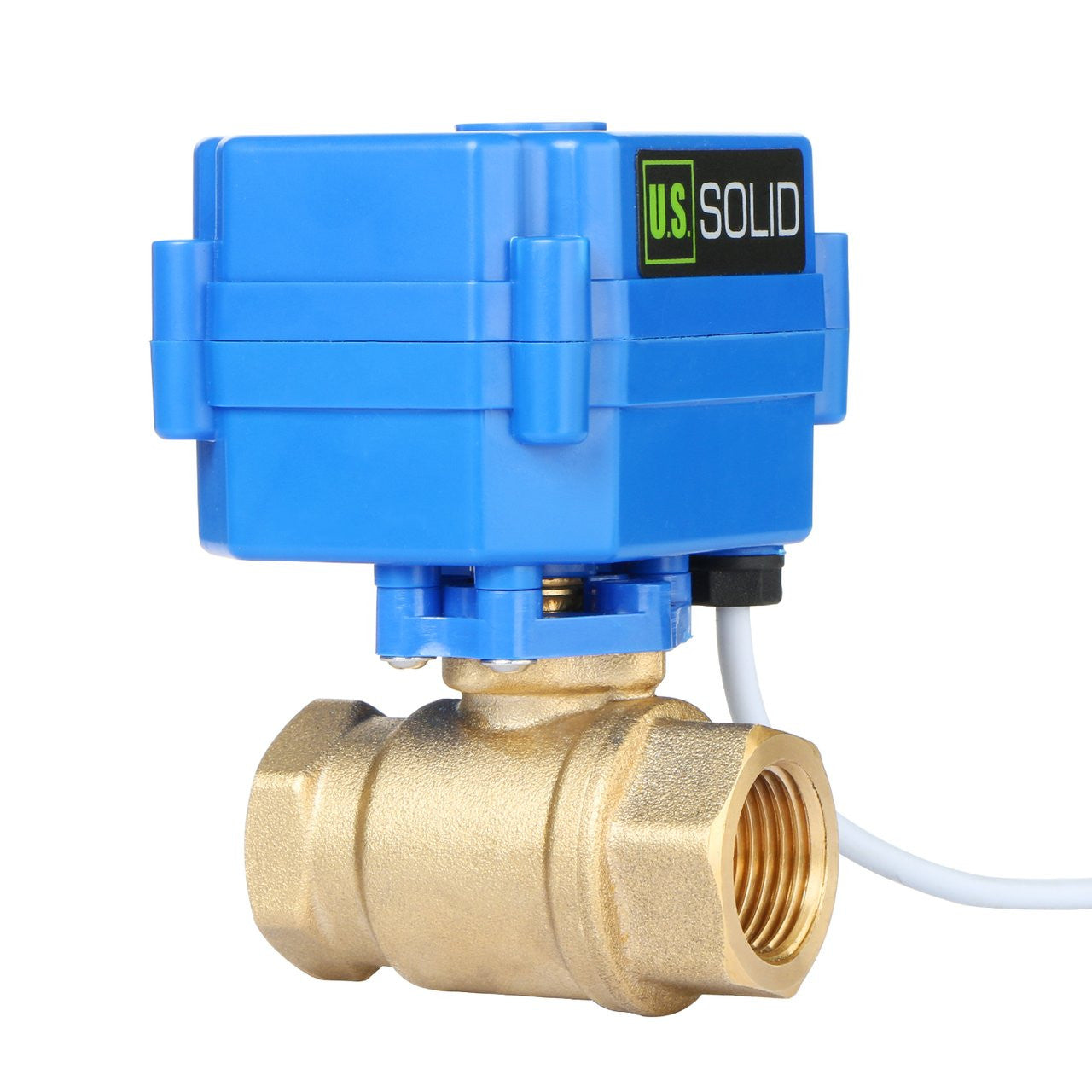

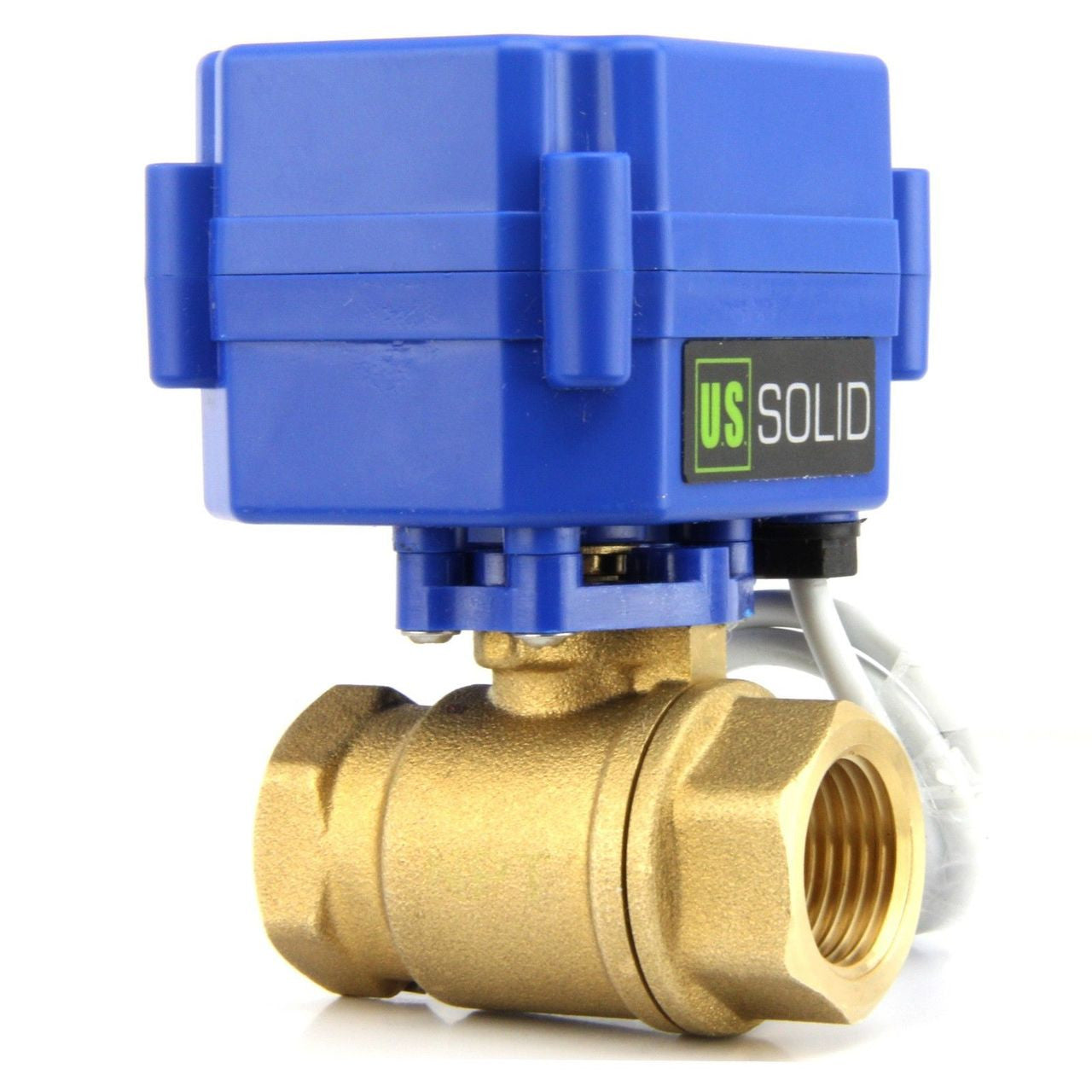

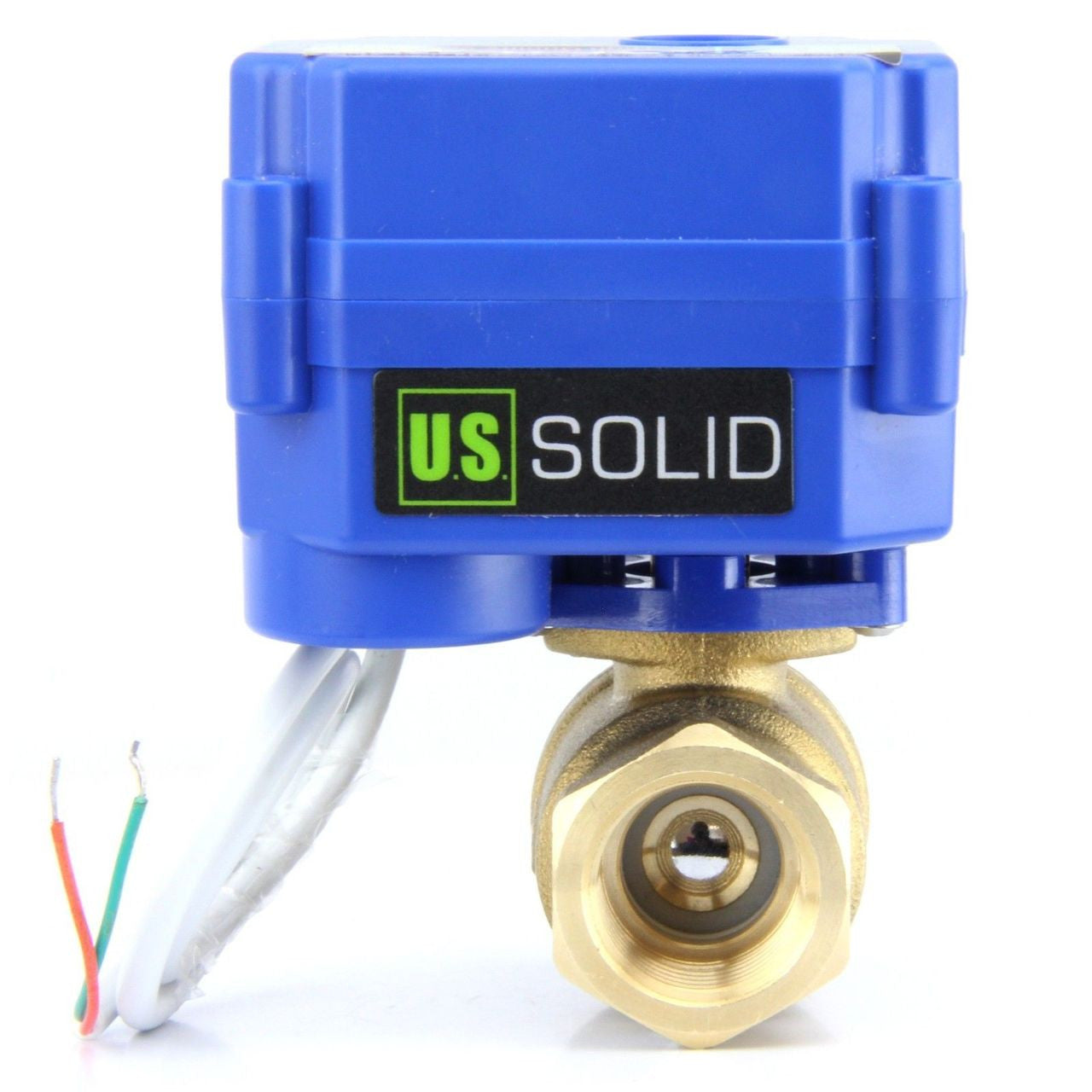

U.S. Solid JFMSV00010 is a 1/2" brass motorized ball valve with a full port bore and a 2-wire auto-return actuator. It operates on 9�24V AC/DC, opens and closes in 3�5 seconds, and uses minimal power to hold position; actuator housing is IP65 rated. The valve features a PTFE ball seal, 2 N�m torque, 5 W max power, and a 1.0 MPa pressure rating. Not suitable for drinking water. Applications include home automation, water systems, brewing, propane systems, and emergency shutoff.

  • 2-wire auto-return (normally closed) actuator; closes on power loss
  • Operates on 9�24V AC/DC; opens/closes in 3�5 seconds and holds position with negligible power
  • Brass full-port valve with PTFE ball seal; 1.0 MPa pressure rating, 2 N�m torque, IP65 motor housing

Product Highlights

Full-port 1/2" brass motorized ball valve, 9�24V AC/DC, 2-wire auto-return, IP65, PTFE seal

Product Information

Standard Information

  • Brand: U.S. SOLID
  • Manufacturer Part Number: JFMSV00010
Technical Specifications
Brand
U.S. Solid
Model
USS-MSV00010
MPN
JFMSV00010
Size
1/2"
Valve Material
Brass
Ball Seal Material
PTFE
Wiring Type
2-wire auto-return
Default Position
Normally closed (closes on power loss)
Input Voltage
9-24V AC/DC
Actuation Time
3-5 seconds
Maximum Power
5 W
Maximum Torque
2 N�m
Maximum Operating Pressure
1.0 MPa
Flow Medium Temperature Range
0�C to 90�C
Ambient Temperature Range
-10�C to 40�C
Cycle Life
80,000 to 100,000 cycles
Bore Type
Full port
Thread Type
NPT / G
Enclosure Rating
IP65
