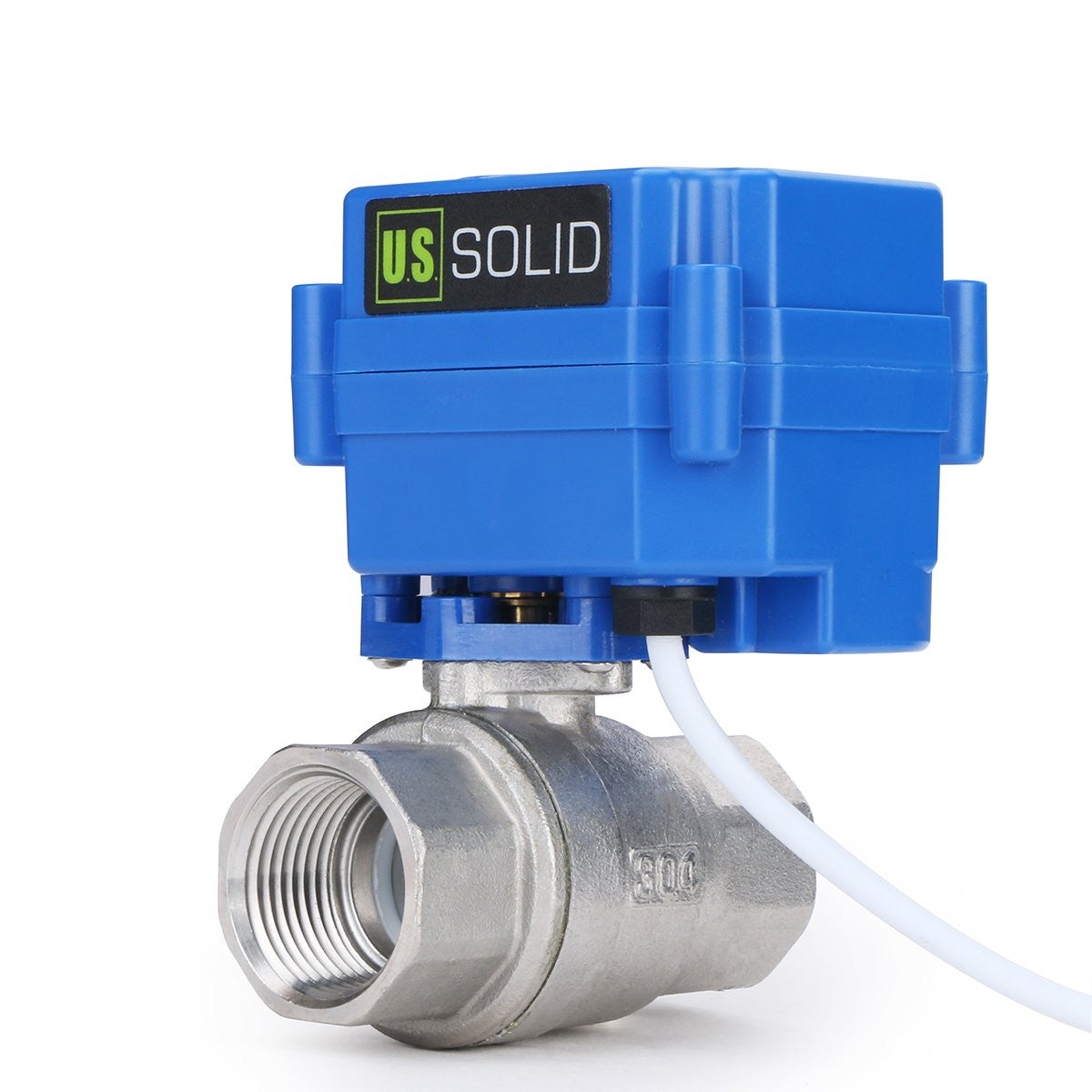

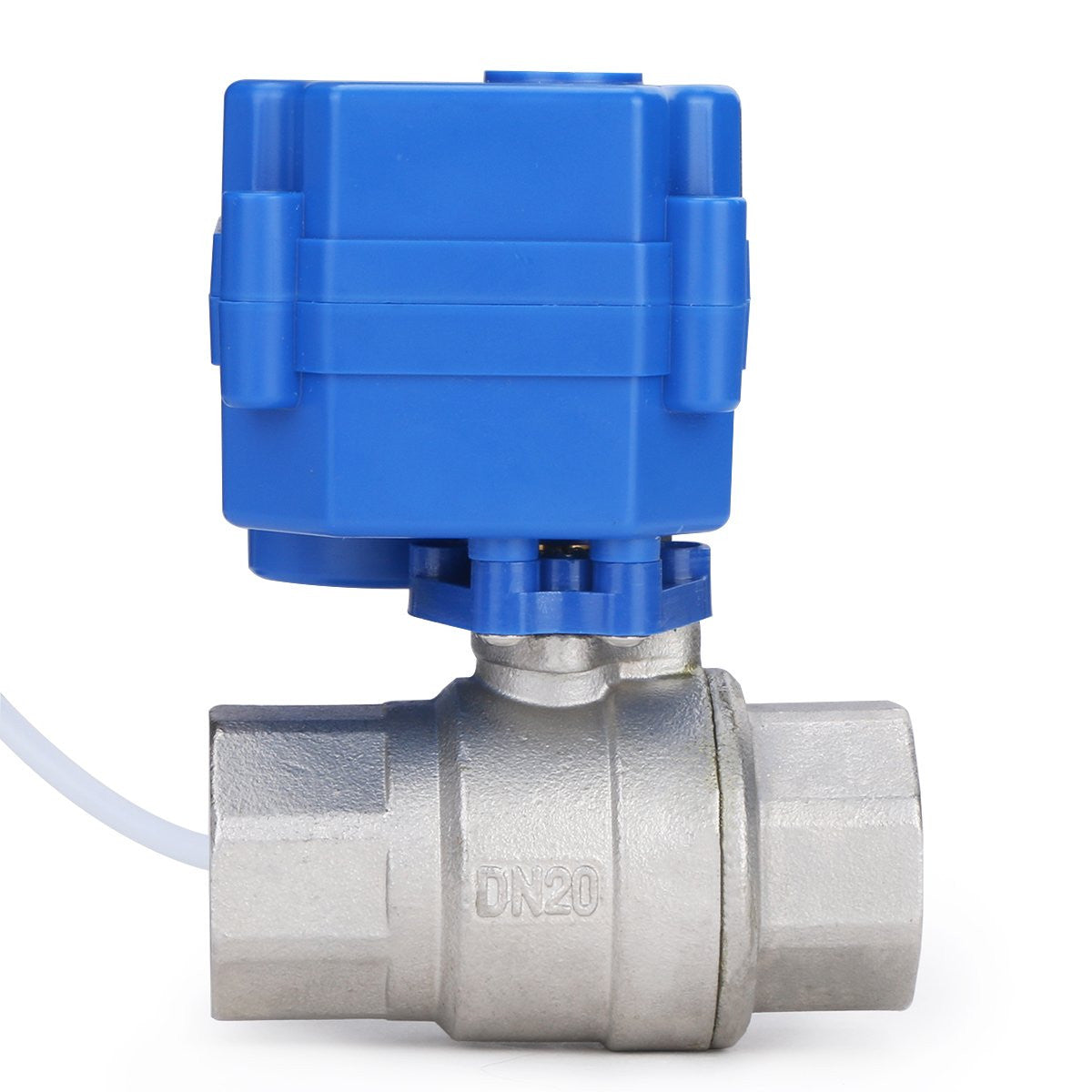

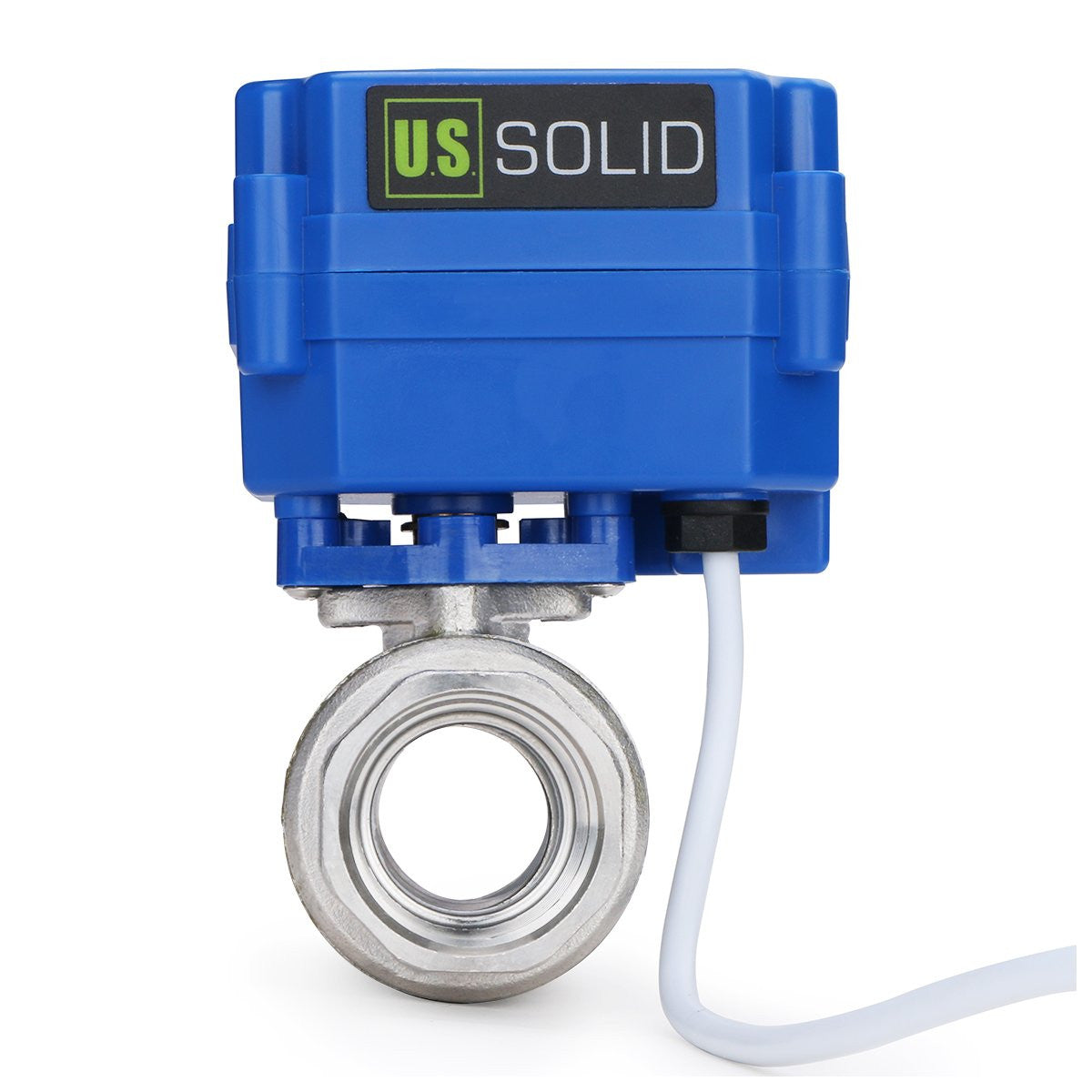

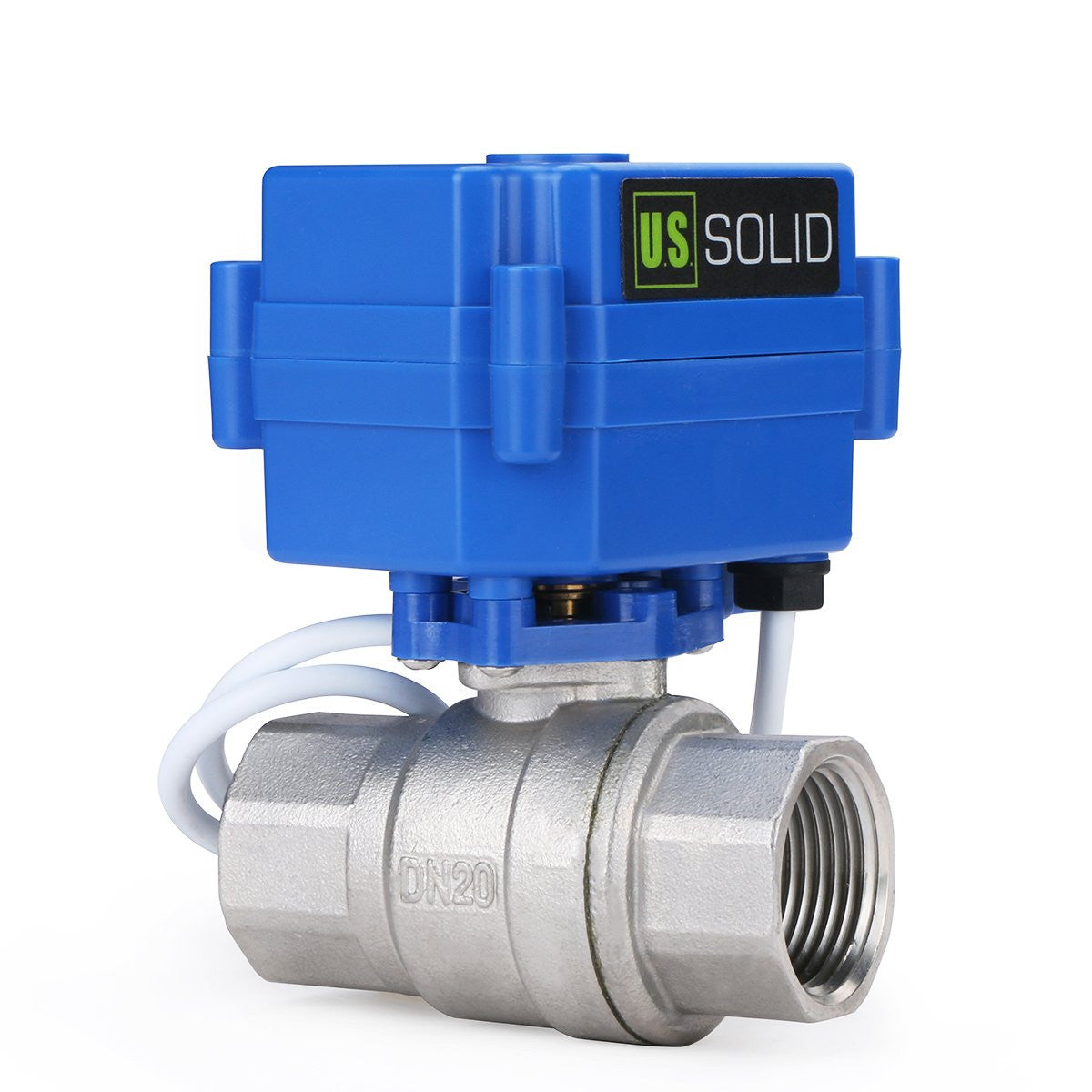

U.S. Solid JFMSV00008 Motorized Ball Valve 9-24 V AC/DC (3/4 inches)

Product Description

U.S. Solid JFMSV00008 is a motorized stainless steel ball valve with a 3/4 inch full port and a 2-wire auto-return actuator that operates on 9-24 V AC/DC. It opens or closes in 3�5 seconds, draws almost no power while holding position, and provides up to 2 N�m torque with a maximum medium pressure of 1.0 MPa. The valve uses an SS304 body with a PTFE ball seal; motor housing is rated IP65 and NSF certified for potable water.

• Operates on 9�24 V AC/DC; open/close time 3�5 seconds; max power 5 W and max torque 2 N�m
• SS304 stainless steel body with PTFE ball seal; NSF/ANSI/CAN 61 and CE certified; IP65 motor housing
• 2-wire auto-return (normally closed) operation; 3/4 in full port NPT/G thread; life expectancy 80,000�100,000 cycles

Product Highlights

3/4 in SS304 full port motorized ball valve with 2-wire auto-return, 9�24 V AC/DC operation, IP65 motor housing, NSF certified

Product Information

Standard Information

• Brand: U.S. SOLID
• Manufacturer Part Number: JFMSV00008

Technical Specifications

• Brand: U.S. Solid
• MPN: JFMSV00008
• Model: USS-MSV00008
• Size / Diameter: 3/4 in
• Input Voltage: 9 - 24 V AC/DC
• Max Power: 5 W
• Operating Time: 3 - 5 seconds
• Max Torque: 2 N�m
• Max Medium Pressure: 1.0 MPa
• Valve Material: SS304 stainless steel
• Ball Seal: PTFE
• Wiring Type: 2-wire auto-return
• Operating State: Normally closed (N/C)
• Bore Type: Full port (NPT)
• Thread Type: NPT / G
• Suitable Media: Water; liquids and gases (see notes)
• Temperature Range (flow medium): 0�C to 90�C
• Ambient Temperature Range: -10�C to 40�C
• Life Expectancy: 80,000 to 100,000 cycles
• Enclosure Rating: IP65
• Certifications: NSF/ANSI/CAN 61, CE
• Technical Standard: NPT
• Valve Operation: Motorized
• Condition: New
• UPC: 0888107092773, 0888107083368
• eBay Product ID (ePID): 744073005
