Description

Product Description

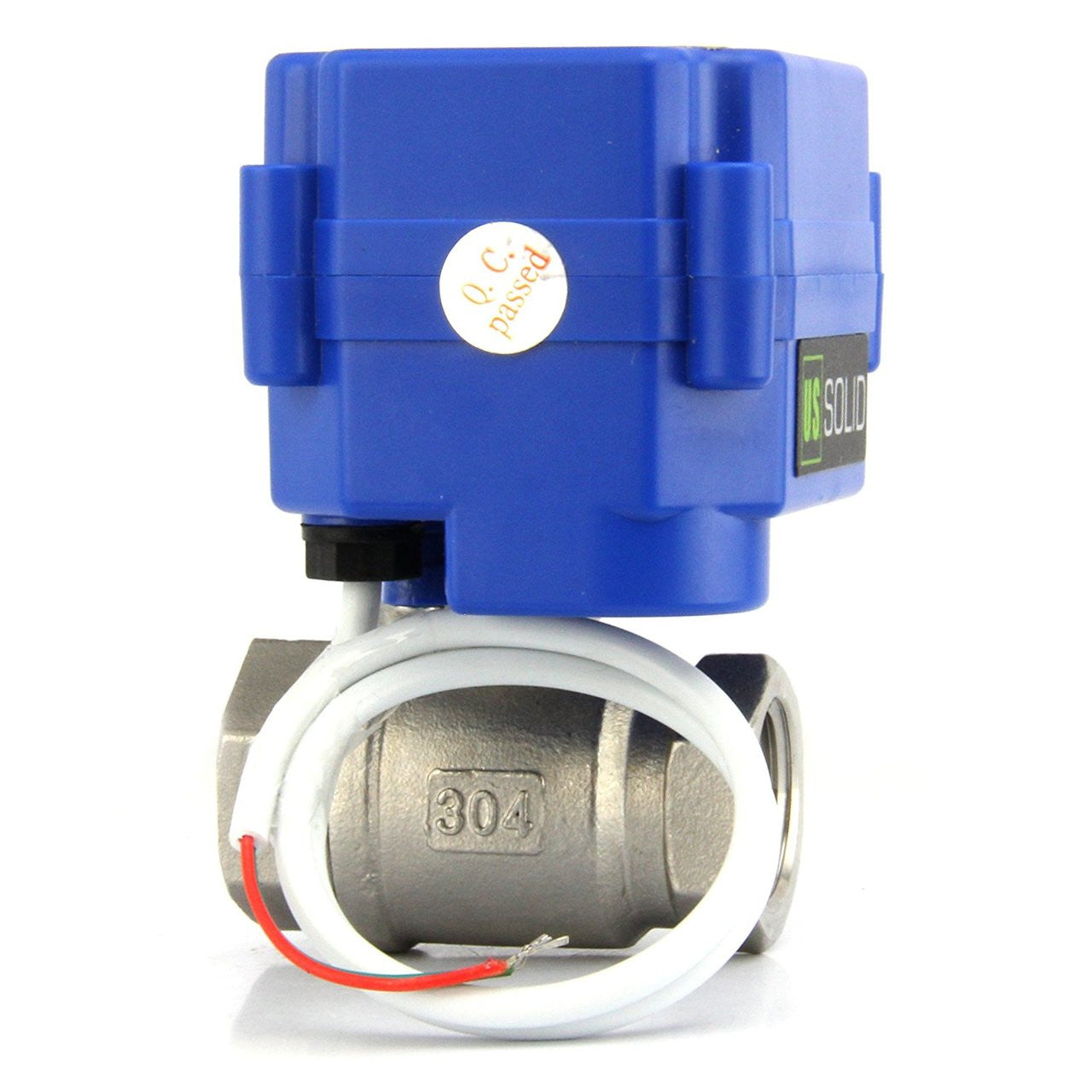

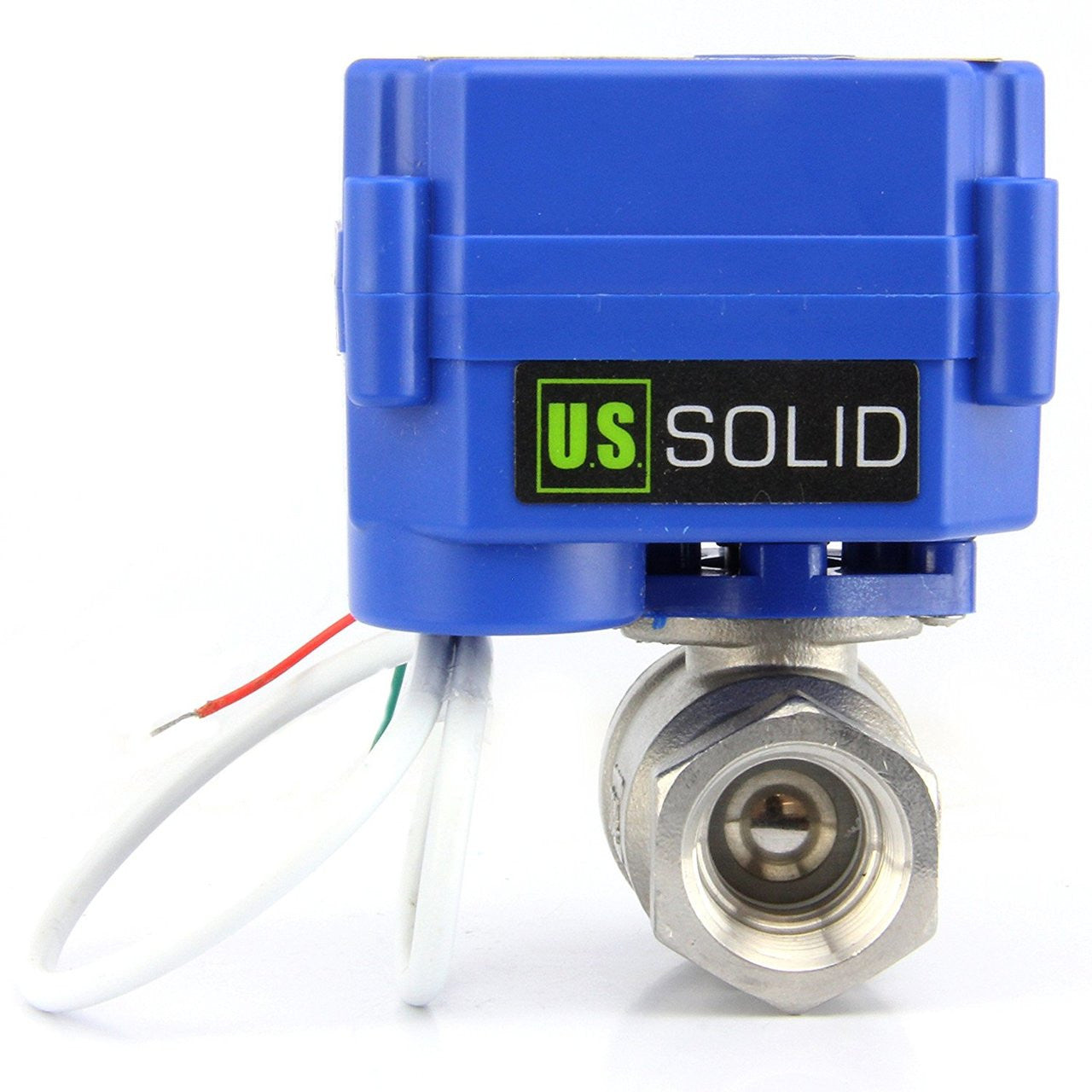

U.S. Solid JFMSV00007 is a motorized 1/2 inch stainless steel (SS304) full-port ball valve for automated on/off flow control. It operates on 9�24V AC/DC with a 2-wire auto-return (normally closed) actuator, cycles in 3�5 seconds, and consumes up to 5 W while providing 2 N�m torque. The valve is IP65 rated, NSF/ANSI/CAN 61 certified, and rated to 1.0 MPa with a flow medium range of 0�90�C and life expectancy of 80,000�100,000 cycles.

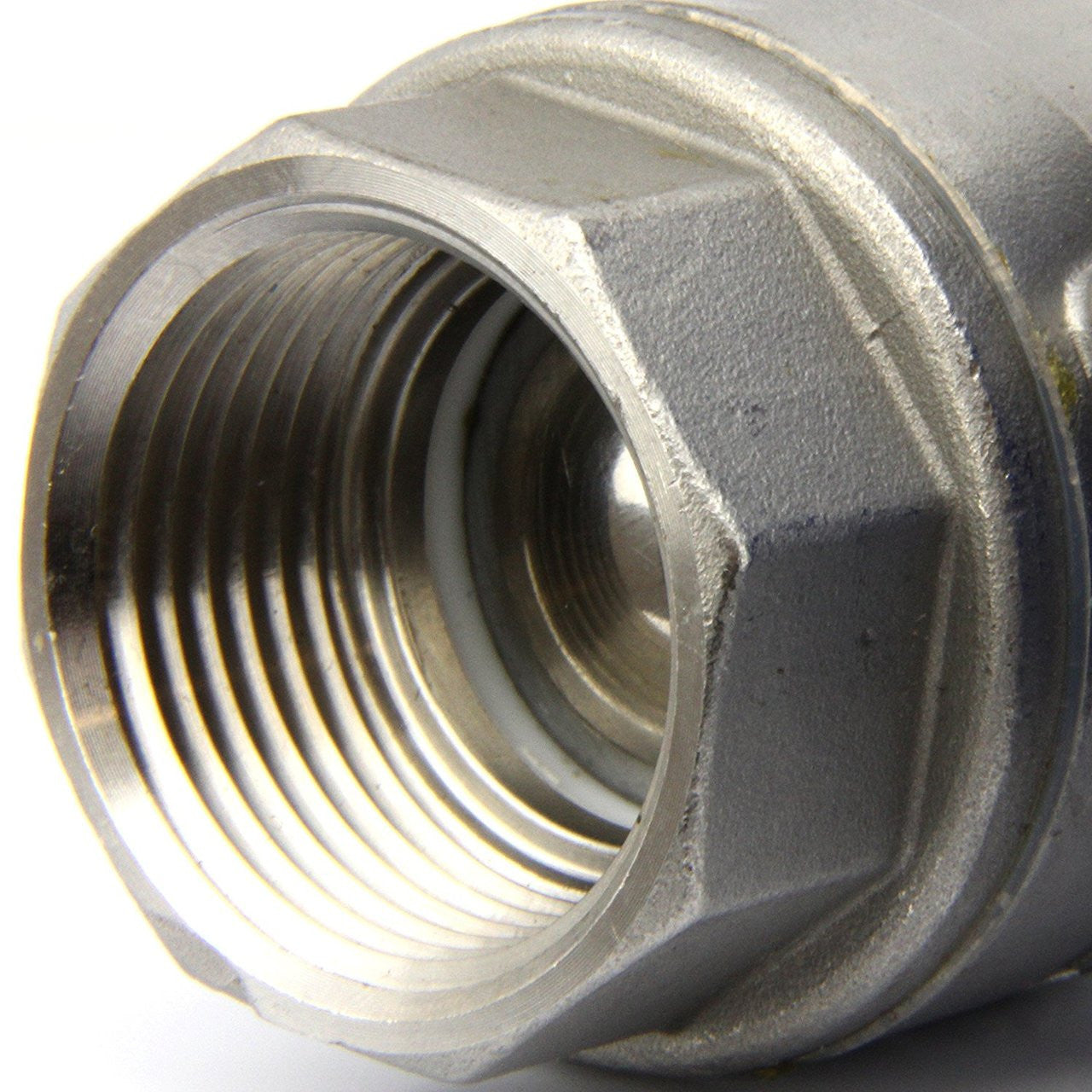

  • Full-port 1/2 inch SS304 construction with PTFE ball seal for low flow resistance
  • 2-wire auto-return (normally closed) operation on 9�24V AC/DC; opens/closes in 3�5 seconds and holds position with negligible power
  • IP65 motor housing, NSF/ANSI/CAN 61 certification, max pressure 1.0 MPa, flow medium 0�90�C, ambient -10�40�C

Product Highlights

1/2 inch SS304 full-port motorized ball valve, 9�24V AC/DC, 2-wire auto-return, IP65, NSF certified

Product Information

Standard Information

  • Brand: U.S. SOLID
  • Manufacturer Part Number: JFMSV00007
Technical Specifications
Brand
U.S. Solid
MPN
JFMSV00007
Model
USS-MSV00007
GTIN
0888107092674
UPC
0888107092674
Size
1/2 inch
Port Type
Full port
Valve Material
SS304 (stainless steel)
Housing Material
Stainless steel
Ball Seal
PTFE
Seal Material
PTFE, EPDM
Wiring Type
2-wire auto return
Operating State
Normally closed (auto return)
Input Voltage
9-24V AC/DC
Max Power
5 W
Output Torque
2 N�m
Max Pressure
1.0 MPa
Operating Time
3-5 seconds
Life Expectancy
80,000 to 100,000 cycles
Flow Medium Temperature Range
0�C to 90�C
Ambient Temperature Range
-10�C to 40�C
Enclosure Rating
IP65
Thread Type
NPT/G
Certifications
NSF/ANSI/CAN 61, CE (referenced)
