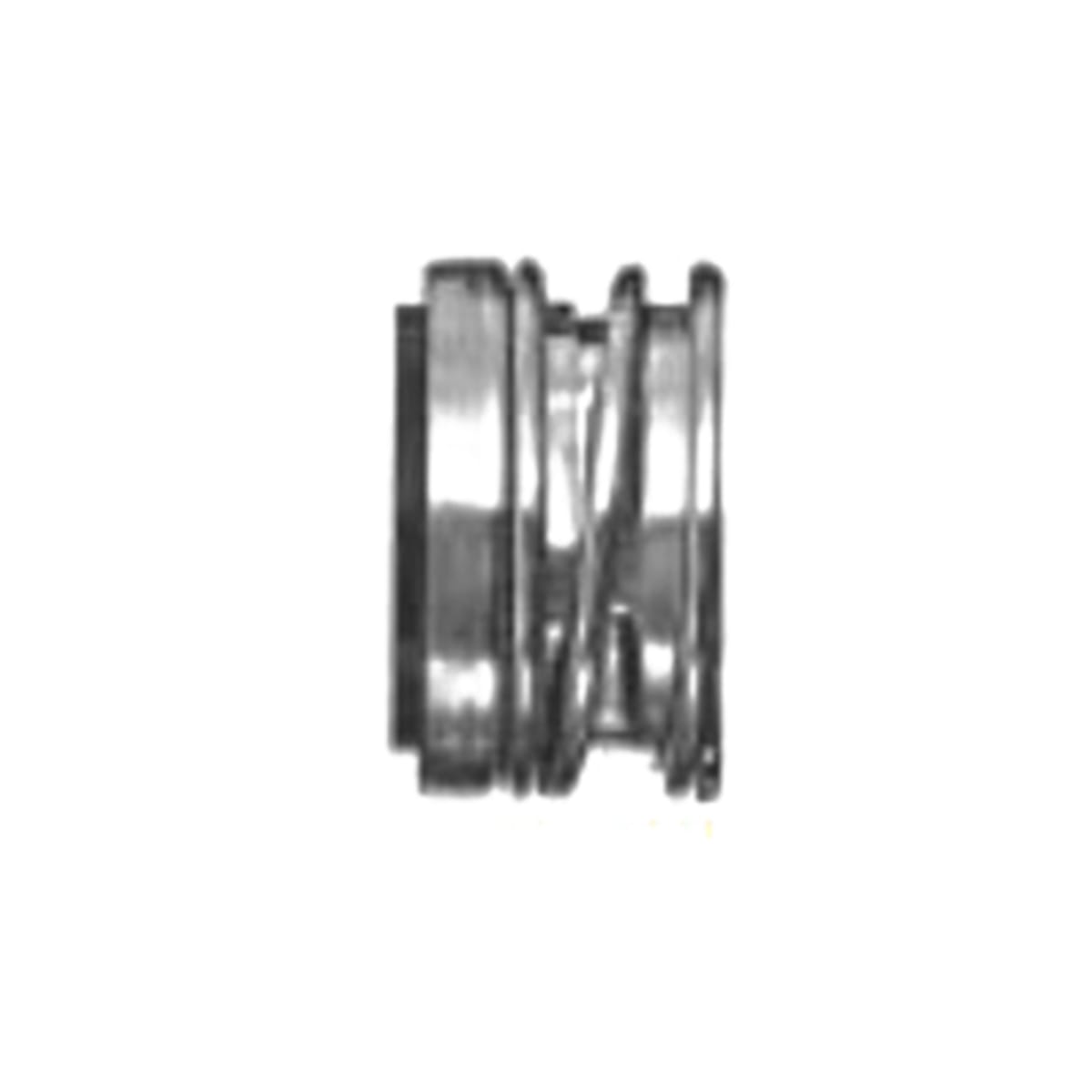

U.S. Seal VG-201 Pump Seal, 3/4 Shaft, 1.295 OD, Buna

Product Description

U.S. Seal VG-201 is a pump seal designed for 3/4 shaft applications. The seal features a Buna elastomer for durability and resistance to wear. It has a molded plastic ring and a stainless steel metal body ensuring reliability in various pumps. Use this product in electric motors and pumps that require robust sealing capabilities.

• Buna elastomer for enhanced durability
• Stainless steel spring and ceramic mating ring for reliable performance
• 1 cup mounted mating ring design for ease of installation

Product Highlights

This pump seal is ideal for electric motor applications, providing effective sealing to prevent leaks.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part Number: VG-201

Technical Specifications

• Dimensions: 0.406 inch T seat x 0.718 inch H operating
• Shaft Size: 0.75 inch
• Outside Diameter: 1.295 inch
• Material: Buna-N
• Type: V Head Type
• Seat Bore: 1.375 inch
• OEM ID: PUMVG201
• Series: U.S. Seal 1 Cup Mounted Pump Seal
