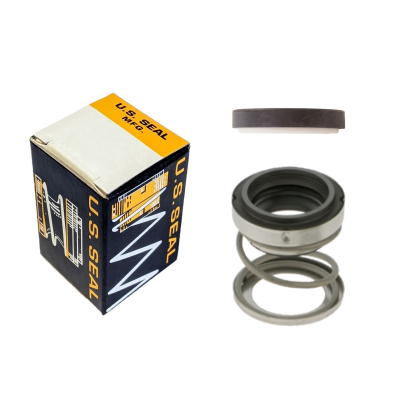

U.S. Seal PS-758 Pump Seal, 1-1/2 Shaft, 2.187 OD, Buna-N

Product Description

The U.S. Seal PS-758 Pump Seal is designed for pumps requiring a durable and efficient sealing solution. This 1 cup mounted pump seal features a Buna-N material that provides reliability in various applications. It is suitable for shafts up to 1.5 inches in diameter and has an outer diameter of 2.187 inches.

• Compatible with C head type designs
• Temperature rating ranges from -40 to 400 degrees Fahrenheit
• Non-clogging elastomer bellows seal

Product Highlights

Utilize this seal for effective leakage prevention in pump systems. Designed to withstand extreme temperatures, it ensures long-lasting performance in various environments.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part Number: PUMUS758

Technical Specifications

• Type: C head type
• Material: Buna-N
• Shaft Size: 1.5 inches
• Outside Diameter: 2.187 inches
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Dimensions: 0.437 inches T Seat x 1.125 inches H Operating
• OEM ID: PUMUS758
