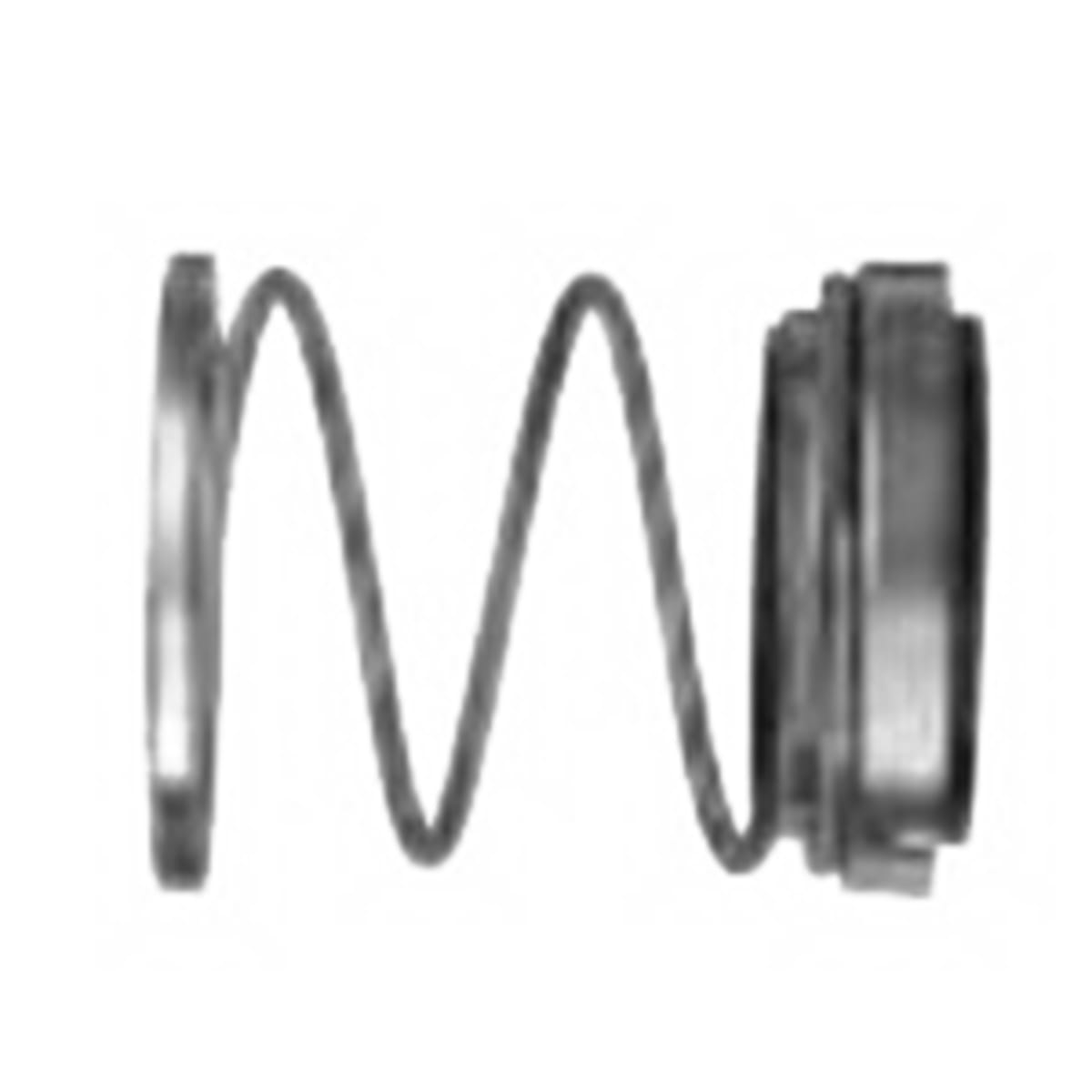

U.S. Seal PS-756 Pump Seal, 1-1/4 Shaft, 1.937 OD, Buna-N

Product Description

The U.S. Seal MFG. PS-756 Pump Seal is designed for effective sealing in pump applications. This seal is suitable for shafts with a diameter of one and one-quarter inches and has an outer diameter of one point nine three seven inches. The seal features a Buna secondary seal, ensuring durability and performance. It is engineered to withstand a temperature range from negative forty degrees to four hundred degrees Fahrenheit.

• Constructed with a carbon ring and stainless steel components.
• Features a non-clogging elastomer bellows seal.
• Rated for pressures up to 150 psi.

Product Highlights

This pump seal provides reliable sealing for various pump types, ensuring minimal leakage and extended service life.

Product Information

Standard Information

• Type: C Head Type
• Material: Buna-N

Technical Specifications

• Shaft Size: 1.25 Inch
• Outside Diameter: 1.937 Inch
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 400 °F
• Seat Bore: 1.875 Inch
• Dimensions: 0.437 Inch T Seat x 1.062 Inch H Operating
