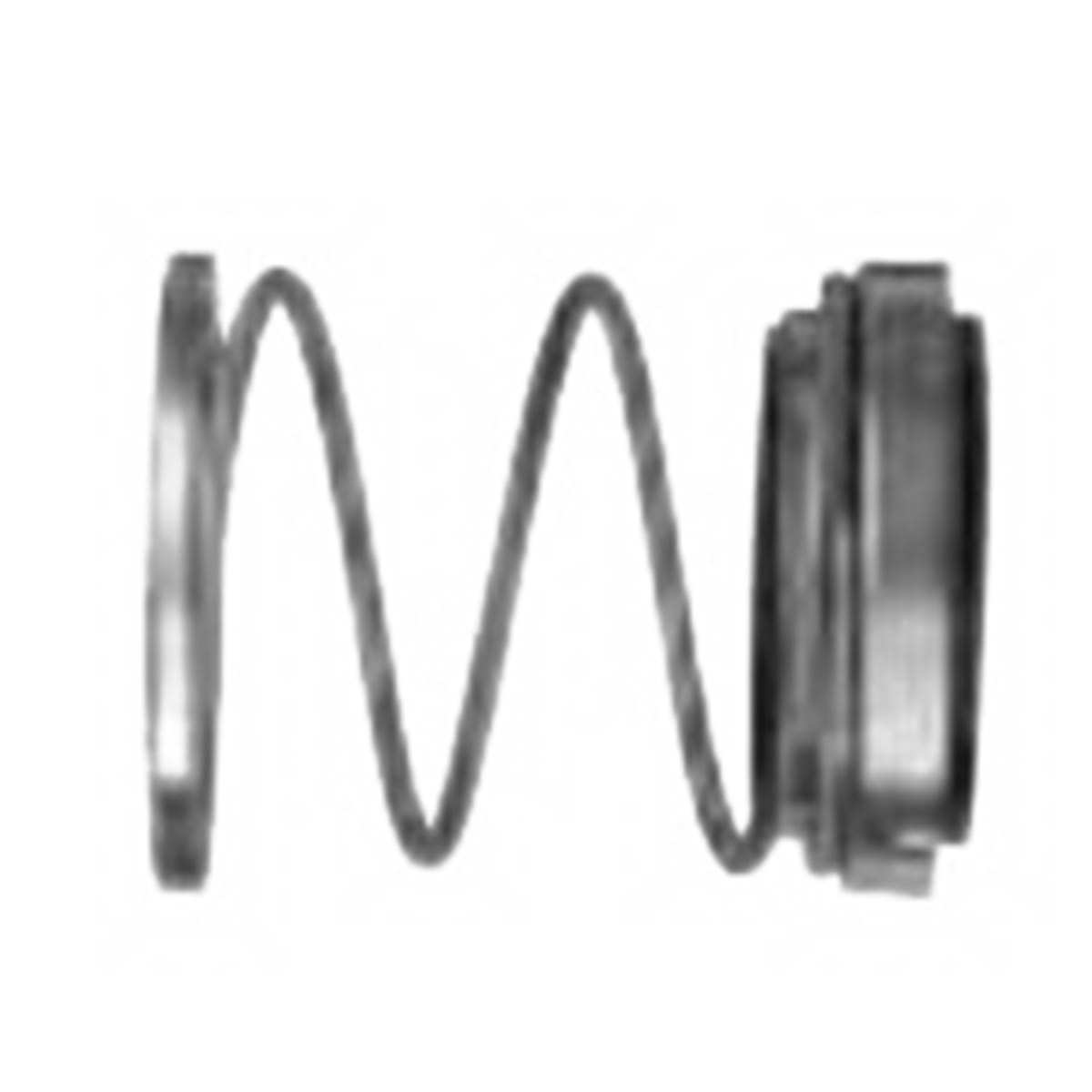

U.S. Seal PS-357 Pump Seal, 1 Shaft, 1.687 OD, Buna-N

Product Description

The U.S. Seal PS-357 Pump Seal is designed for cup mounted applications. This product measures one inch in shaft size and has an outside diameter of one point six eight seven inches. Constructed with Buna-N material, it provides effective sealing for various pump mechanisms.

• Buna-N material construction
• Designed for cup-mounted applications
• Temperature rated from negative forty to four hundred degrees Fahrenheit

Product Highlights

This seal is suitable for high pressure and temperature conditions, making it ideal for many pumping systems. Its design ensures durability and reliability in operation.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part Number: PUMUS357

Technical Specifications

• Shaft Size: 1 Inch
• Outside Diameter: 1.687 Inch
• Seat Bore: 1.625 Inch
• Material: Buna-N
• Pressure Rating: 150 psi
• Temperature Rating: -40 to 400 °F
• Dimensions: 0.437 Inch T Seat x 1 Inch H Operating
• Type: C Head Type
