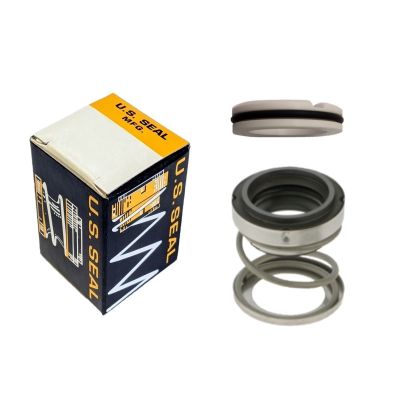

U.S. Seal PS-356V Pump Seal, 1-1/8 Shaft, 1.812 OD, Viton

Product Description

The U.S. Seal PS-356V Pump Seal features a three O-ring design that ensures a reliable seal for various applications. Made of Viton, this pump seal can withstand extreme temperatures and pressure. The seal is built to fit shafts measuring one and one-eighth inches in diameter and has an outside diameter of one point eight twelve inches. It is an essential component for pumps that require a durable and effective sealing solution.

• Three O-ring mating ring design for enhanced sealing strength
• Compatible with pumps requiring one and one-eighth inch shafts
• Temperature range: -40 to 400 degrees Fahrenheit

Product Highlights

Designed for various pumping applications, this pump seal provides effective sealing with a simple installation.

Product Information

Standard Information

• Type: C Head Type
• Material: Viton

Technical Specifications

• Shaft Size: 1.125 Inch
• Outside Diameter: 1.812 Inch
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Pressure Rating: 150 psi
• Dimensions: 0.437 Inch T Seat x 1.062 Inch H Operating
• OEM ID: PUMUS356V
