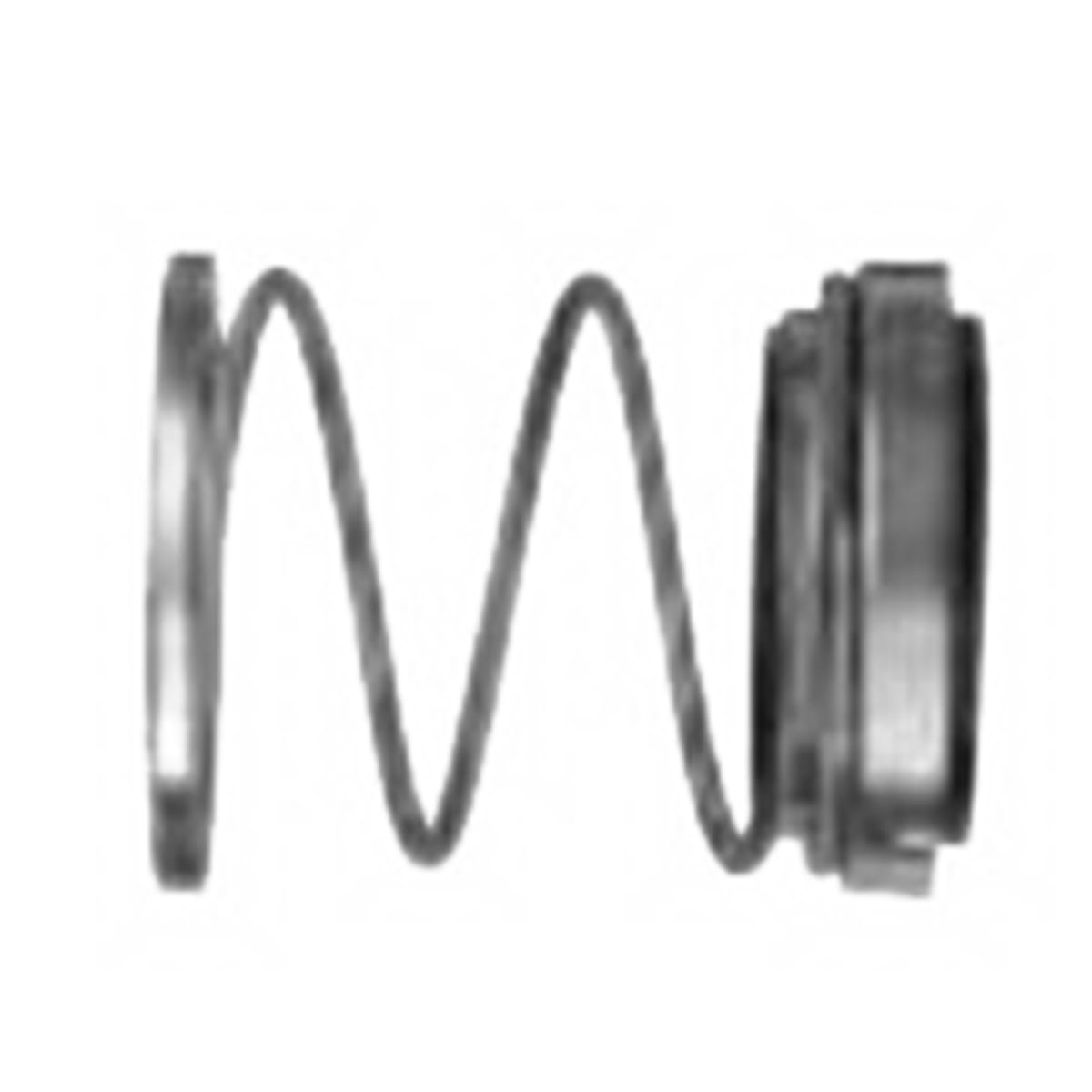

U.S. Seal PS-347V-CMS Pump Seal, 1-1/2 Shaft, 2.187 OD, Viton

Product Description

The U.S. Seal PS-347V-CMS is a reliable pump seal designed for cup mounted applications. This product features a shaft size of one and a half inches and an outer diameter of two point one eight seven inches, making it suitable for various pump systems.

• Viton secondary seal for enhanced durability.
• Temperature rating ranging from minus forty to four hundred degrees Fahrenheit.
• Elastomer bellows seal designed to prevent clogging.

Product Highlights

Engineered for use in numerous industrial applications, this pump seal is built to withstand high pressures and temperatures. It is suitable for pumps needing a reliable seal for optimal operation.

Product Information

Standard Information

• Brand: U.S. SEAL MFG.
• Part Number: PUMUS347V-CMS

Technical Specifications

• Type: C Head Type
• Material: Viton
• Shaft Size: 1.5 Inch
• Outside Diameter: 2.187 Inch
• Pressure Rating: 150 psi
• Temperature Rating: 400 °F
• Seat Bore: 2.125 Inch
• Dimensions: 0.437 Inch T Seat x 1.125 Inch H Operating
