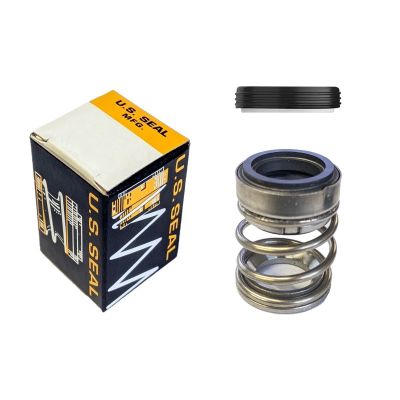

U.S. Seal PS-290 Pump Seal 5/8 Shaft 1.062 OD Buna-N

Product Description

The U.S. Seal PS-290 is a reliable pump seal designed for effective operation in various pumping applications. This product features a C head type and is suitable for a shaft size of five eighths inch. The outside diameter is one point zero sixty-two inches, making it a practical choice for different pump models.

• Buna Secondary Seal and Carbon Ring for durability
• Temperature rating of minus forty to four hundred degrees Fahrenheit
• Designed to prevent clogging with a single coil spring

Product Highlights

This pump seal is particularly well-suited for pumps requiring a non-clogging sealing solution. Its elastomer bellows seal and stainless steel components enhance reliability.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part Number: PUMUS290

Technical Specifications

• Shaft Size: 0.625 Inch
• Outside Diameter: 1.062 Inch
• Temperature Rating: 400 degrees Fahrenheit
• Pressure Rating: 150 psi
• Material: Buna-N
• Seat Bore: 1.25 Inch
• Dimensions: 0.406 Inch T Seat x 0.875 Inch H Operating
