U.S. Seal PS-200V Pump Seal, 5/8 Shaft, 1.218 OD, Viton

Product Description

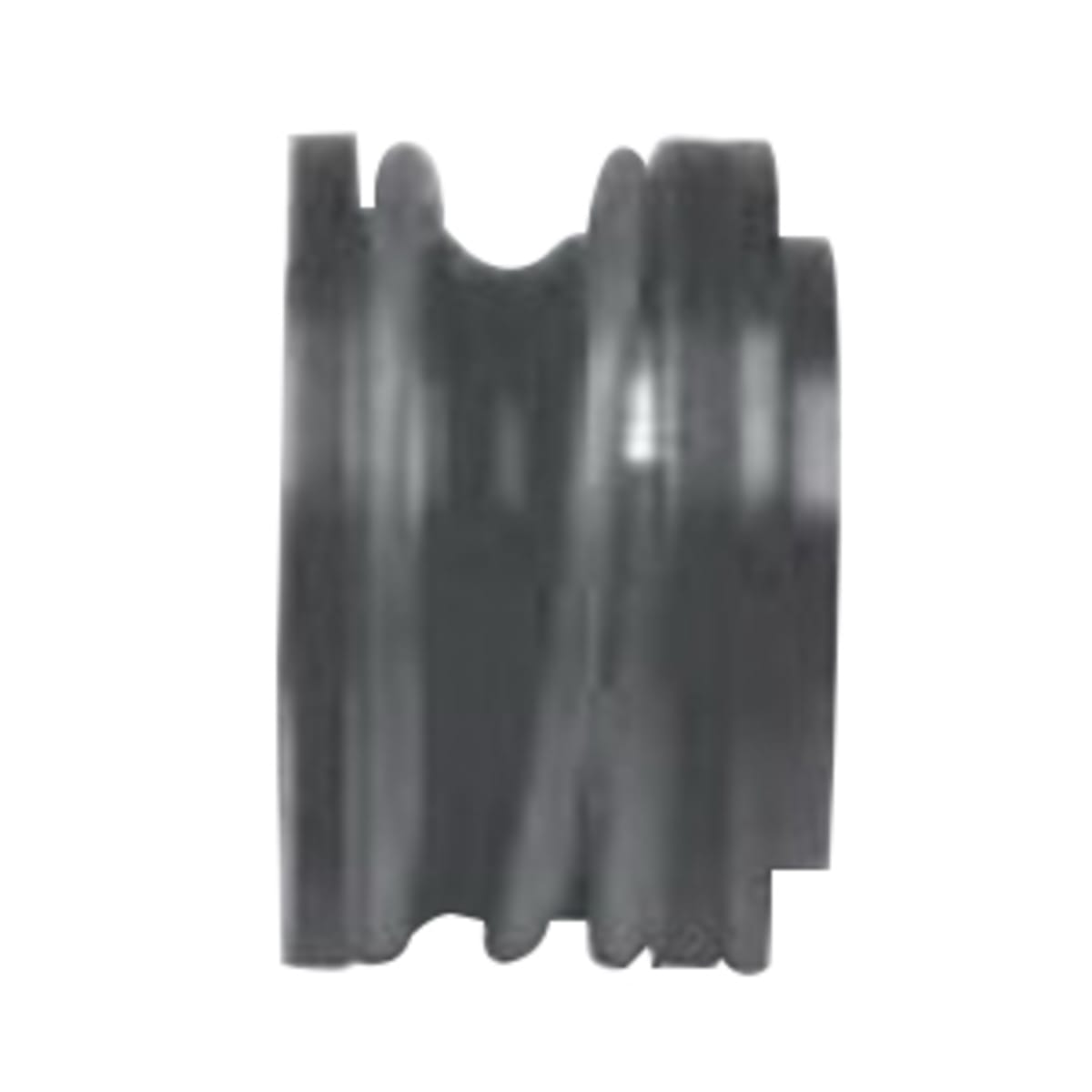

The U.S. Seal PS-200V is designed as a pump seal for shafts measuring five eighths of an inch. It features a one point two eighteen inch outside diameter with a durable Viton material construction. This seal is suitable for various applications where reliability and effectiveness are required.

• Easy installation with a factory-assembled design.
• Temperature range from negative forty to four hundred degrees Fahrenheit.
• Effective for use in pumps and machinery requiring robust sealing.

Product Highlights

This product ensures optimum performance in various pumping applications, featuring a reliable elastomer bellows for maximum flexibility against shaft movement and wear.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part Number: PUMUS200V

Technical Specifications

• Item Name: Pump Seal
• Shaft Size: 0.625 Inch
• Outside Diameter: 1.218 Inch
• Temperature Rating: 400 °F
• Pressure Rating: 75 psi
• Material: Viton
• Dimensions: 0.406 Inch T Seat x 0.718 Inch H Operating
• OEM ID: PUMUS200V
