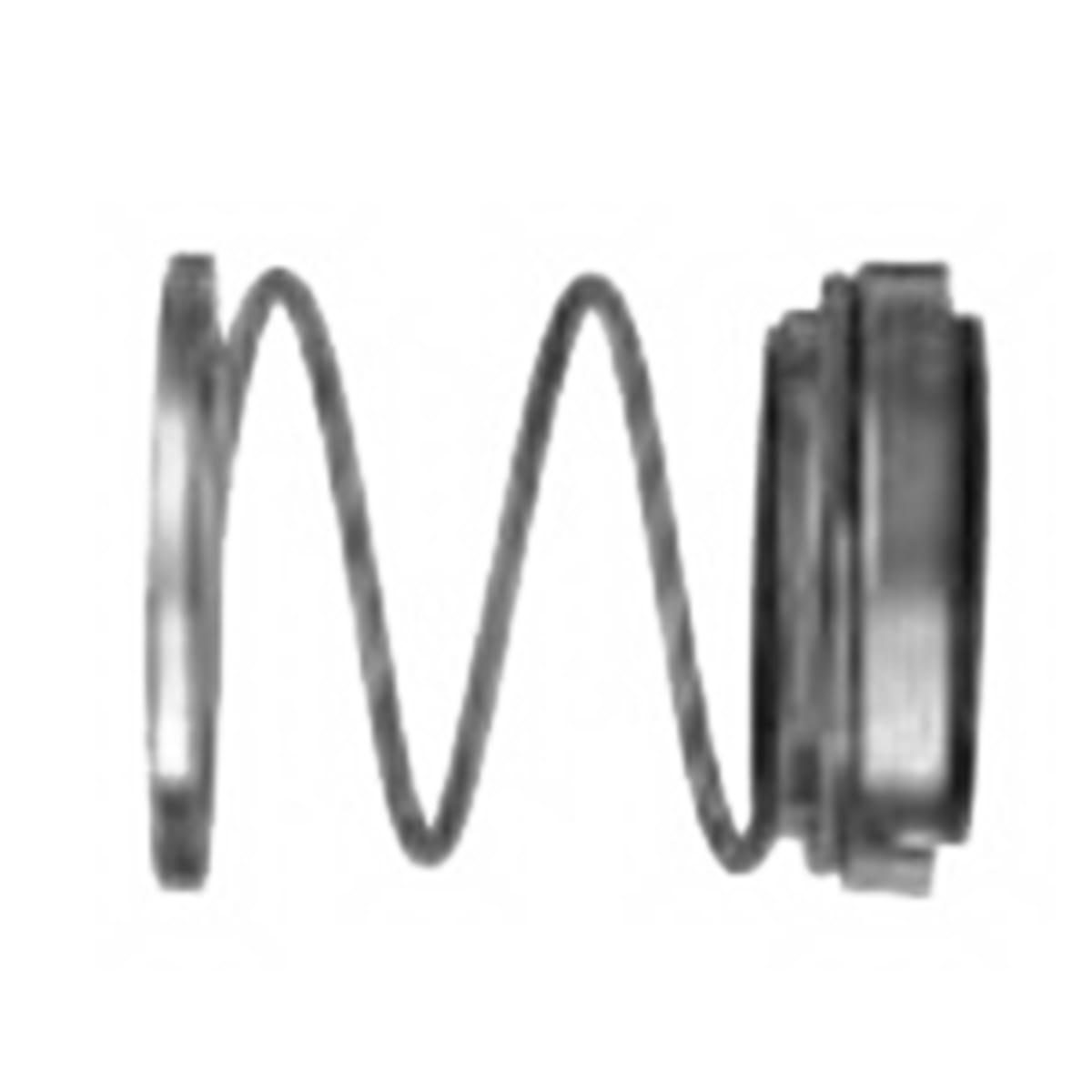

U.S. Seal PS-1679 Pump Seal, 2-1/4 Shaft, 3-1/8 OD, Buna-N

Product Description

The U.S. Seal PS-1679 is designed for efficient sealing in mounted pump applications. This pump seal features a Buna-N material, ensuring durability and performance under various conditions. It fits a shaft size of two and one-quarter inches and has an outside diameter of three and one-eighth inches.

• 1 Cup mounted design for simpler installation
• Temperature rating from minus forty to four hundred degrees Fahrenheit
• Non-clogging elastomer bellows seal with single coil spring

Product Highlights

This pump seal provides reliable service in a range of applications. It features a carbon ring and stainless-steel components for added strength.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part Number: PUMUS1679

Technical Specifications

• Type: C Head Type
• Shaft Size: 2.25 Inch
• Outside Diameter: 3.125 Inch
• Pressure Rating: 150 psi
• Temperature Rating: 400 °F
• Material: Buna-N
• Dimensions: 0.562 Inch T Seat x 1.688 Inch H Operating
• OEM ID: PUMUS1679
