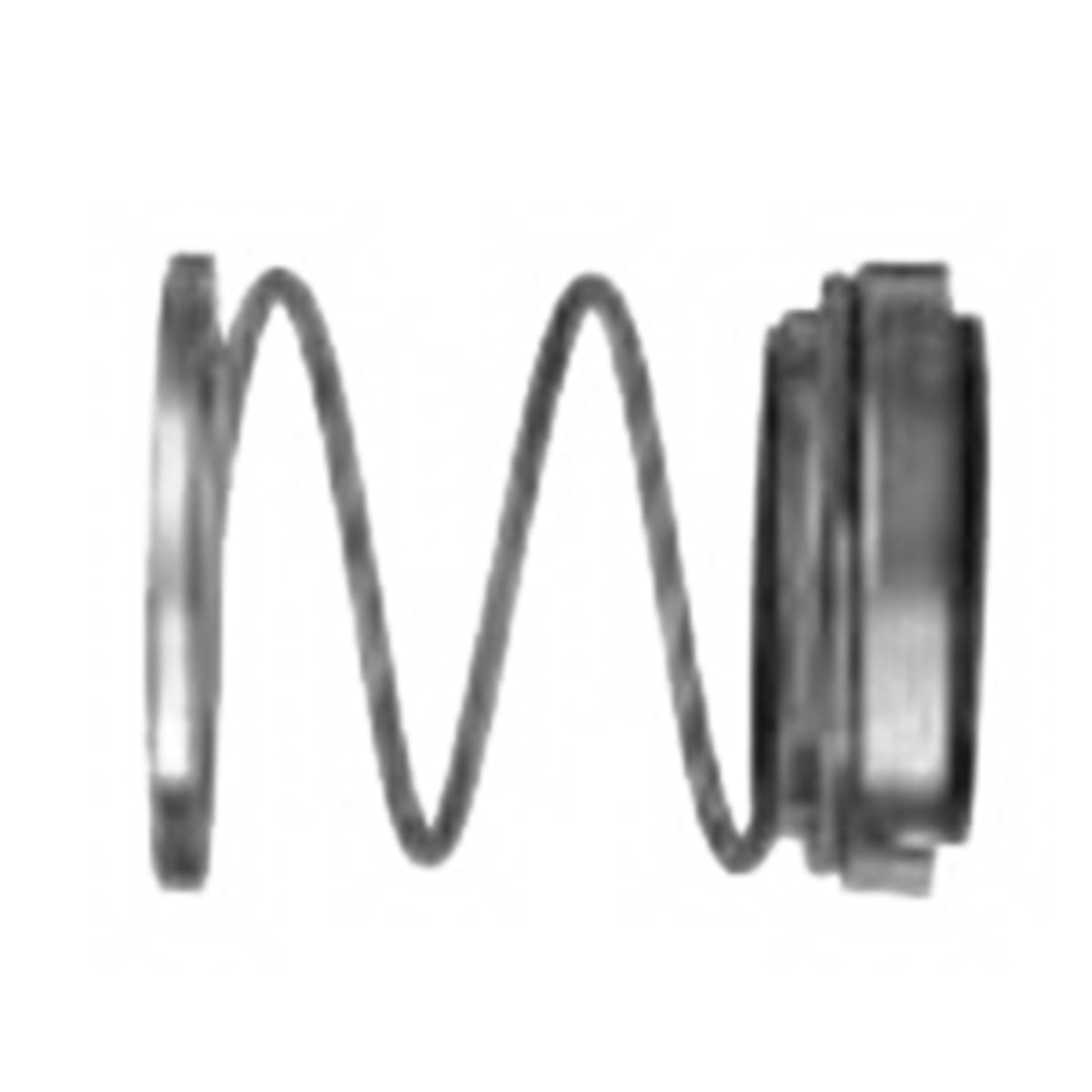

U.S. Seal PS-1156 Pump Seal, 5/8 Shaft, 1.062 OD, Buna-N

Product Description

The U.S. Seal PS-1156 is a one cup mounted pump seal designed for reliable performance in various applications. It features a Buna-N material for durability and effective sealing. The pump seal has a shaft size of five-eighths inches and an outside diameter of one point zero six two inches, making it suitable for different pump configurations.

• Temperature rating from -40 to 400 degrees Fahrenheit
• Made with Buna-N and stainless steel components
• Engineered for easy installation in cup mounted designs

Product Highlights

The U.S. Seal PS-1156 is excellent for maintaining operations in different pump setups while providing a secure seal to prevent leaks.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• Part #: PUMUS1156

Technical Specifications

• Type: C Head Type
• Material: Buna-N
• Shaft Size: 0.625 Inch
• Outside Diameter: 1.062 Inch
• Temperature Rating: 400 °F
• Pressure Rating: 150 psi
• Dimensions: 0.406 Inch T Seat x 0.812 Inch H Operating
• Seat Bore: 1.25 Inch
