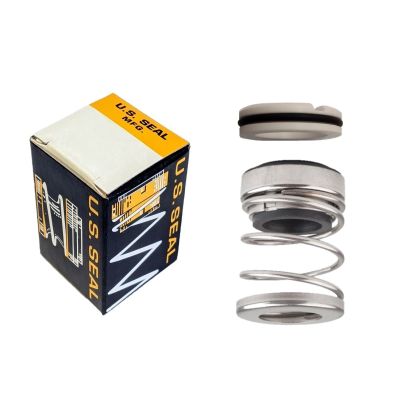

U.S. SEAL MFG. PS-359V Pump Seal, 5/8 Shaft, 1.062 OD, Viton

Product Description

The U.S. Seal MFG. PS-359V is a reliable pump seal designed for various applications. This model features a 3 O-ring mating ring structure, providing effective sealing to prevent leaks. It is suitable for shafts with a size of five eighths inches and has an outer diameter of one point zero sixty-two inches. The material used in this pump seal is Viton, which ensures durability and resistance to high temperatures.

• 3 O-ring mating ring design
• Viton material for enhanced strength
• Temperature rating from -40°F to 400°F

Product Highlights

This pump seal is ideal for electric motors and other equipment requiring reliable sealing solutions.

Product Information

Standard Information

• Brand: U.S. Seal MFG.
• MPN: PS-359V

Technical Specifications

• Type: C Head Type
• Material: Viton
• Shaft Size: 0.625 Inch
• Outside Diameter: 1.062 Inch
• Temperature Rating: -40°F to 400°F
• Pressure Rating: 150 psi
• Dimensions: 0.406 Inch T Seat x 0.875 Inch H Operating
• Seat Bore: 1.25 Inch
