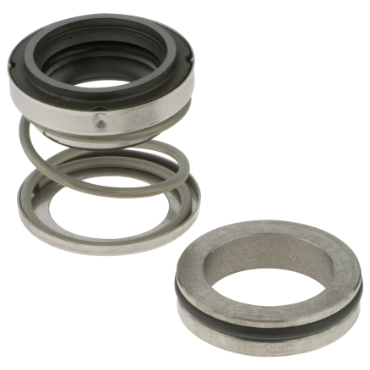

U.S. Seal Manufacturing PS-525 Pump Seal

Product Description

The U.S. Seal Manufacturing PS-525 is a reliable pump seal designed for various applications. This seal features a one point two five inch shaft diameter and a seat outer diameter of one point eight seven five inches. The PS-525 is built with durable materials suitable for many pumping tasks.

• Shaft diameter of one point two five inches
• Maximum pressure rating of 200 psi
• Temperature range from negative forty degrees Fahrenheit to two hundred twenty-five degrees Fahrenheit

Product Highlights

This seal is ideal for use in pumps that require a robust seal that can withstand harsh temperatures and pressures.

Product Information

Standard Information

• Brand: U.S. Seal Manufacturing
• Part Number: 101651315

Technical Specifications

• Shaft Diameter: 1.25 in
• Washer Material: Carbon
• Metal Parts Material: Stainless Steel
• Temperature Range [Min]: -40 °F
• Seat Type: 3
• Seat O.D.: 1.875 in
• Temperature Range [Max]: 225 °F
• Pressure: 200 psi
• Seat Material: Ni-Resist
• Spring Material: Stainless Steel
• Head Type: C
• Elastomers Material: Buna
• Weight: 0.25 LB
