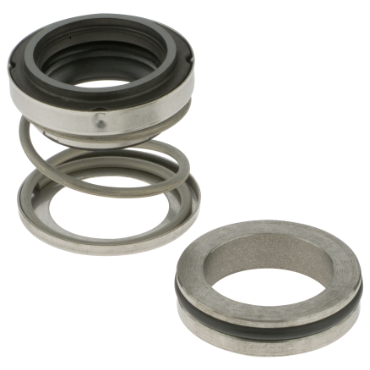

U.S. Seal Manufacturing PS-249 Pump Seal

Product Description

The U.S. Seal Manufacturing PS-249 pump seal features a robust design that ensures reliability in various pumping applications. Constructed with high-quality materials, this pump seal is intended to fit shafts with a diameter of one inch. Its design includes a Buna elastomer for effective sealing and a stainless steel spring that enhances durability.

• Designed for shafts with a diameter of one inch
• Capable of withstanding pressure up to 200 psi
• Temperature range from -40 °F to 225 °F

Product Highlights

The PS-249 pump seal is ideal for use in water pumps and other equipment requiring tight seals. The seal includes a tapered spring for improved compression and sealing performance.

Product Information

Standard Information

• Brand: U.S. Seal Manufacturing
• Part Number: 101697340

Technical Specifications

• Seat Material: Ni-Resist
• Elastomers Material: Buna
• Metal Parts Material: Stainless Steel
• Spring Material: Stainless Steel
• Washer Material: Carbon
• Seat Type: 1
• Head Type: C
• Pressure Rating: 200 psi
• Temperature Range: -40 °F to 225 °F
• Shaft Diameter: 1 inch
• Seat O.D.: 1.875 inches
• Weight: 0.25 LB
