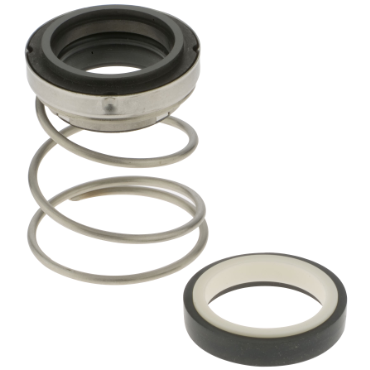

U.S. Seal Manufacturing PS-245 Pump Seal

Product Description

The U.S. Seal Manufacturing PS-245 is a reliable pump seal designed to ensure optimal performance in various applications. Constructed for durability, this seal features a shaft diameter of one inch and a seat outer diameter of one point six two five inches. The seal is made of Buna elastomer, ensuring resistance to wear and tear while providing a high level of sealing efficiency.

• Seat O.D. of 1.625 inches
• Pressure rating of 200 psi
• Temperature range from -40°F to 225°F

Product Highlights

This pump seal effectively prevents leaks and maintains pressure within the system. Its robust materials include stainless steel and ceramic, ensuring long-lasting use in demanding environments.

Product Information

Standard Information

• Part #: 101696839
• Brand: U.S. Seal Manufacturing

Technical Specifications

• Seat O.D.: 1.625 inches
• Shaft Diameter: 1 inch
• Head Type: C
• Seat Type: 1
• Material (Seat): Ceramic
• Material (Metal Parts): Stainless Steel
• Material (Elastomers): Buna
• Material (Spring): Stainless Steel
• Material (Washer): Carbon
• Temperature Range (Min): -40°F
• Temperature Range (Max): 225°F
• Pressure: 200 psi
• Weight: 0.25 LB
