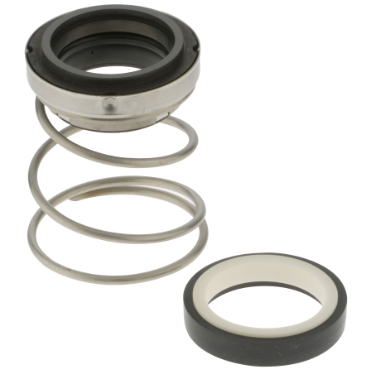

U.S. Seal Manufacturing PS-2200 Pump Seal

Product Description

The U.S. Seal Manufacturing PS-2200 Pump Seal is designed for reliable sealing in various pumping applications. This pump seal is suitable for a shaft diameter of one and one-quarter inches and features a two-inch outer diameter. The construction includes high-quality materials, ensuring durability and enhanced performance.

• Constructed with stainless steel for metal parts
• Operates effectively in a temperature range from negative forty degrees Fahrenheit to two hundred twenty-five degrees Fahrenheit
• Includes a Buna elastomer, providing resistance against wear

Product Highlights

This seal is ideal for applications requiring robust sealing solutions, ensuring efficient fluid movement while preventing leaks.

Product Information

Standard Information

• Manufacturer: U.S. Seal Manufacturing
• Part Number: 101680173

Technical Specifications

• Weight: 0.25 LB
• Shaft Diameter: 1.25 in
• Seat Outer Diameter: 2 in
• Seat Type: 3
• Head Type: C
• Elastomers Material: Buna
• Seat Material: Ceramic
• Metal Parts Material: Stainless Steel
• Spring Material: Stainless Steel
• Washer Material: Carbon
• Pressure Rating: 200 psi
• Temperature Range (Min): -40 °F
• Temperature Range (Max): 225 °F
• Manufacturer Part No: 52-114-659-808
