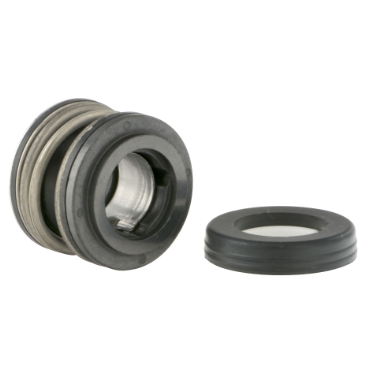

U.S. Seal Manufacturing PS-162 Pump Seal

Product Description

The U.S. Seal Manufacturing PS-162 is a reliable pump seal designed for effective sealing solutions. This pump seal is equipped with features that ensure durability and performance in various applications. Suitable for use in pumps requiring precise sealing components.

• 1/2 inch shaft diameter
• Temperature range from -40 degrees Fahrenheit to 225 degrees Fahrenheit
• Brass metal parts and ceramic seat material

Product Highlights

The PS-162 pump seal offers efficient sealing for pumps operating under pressure. Its construction ensures compatibility with various fluids, making it ideal for trade professionals.

Product Information

Standard Information

• Brand: U.S. Seal Manufacturing
• Part Number: 101705567

Technical Specifications

• Shaft Diameter: 0.5 inches
• Temperature Range (Min): -40 degrees Fahrenheit
• Temperature Range (Max): 225 degrees Fahrenheit
• Seat Type: 1
• Metal Parts Material: Brass
• Seat O.D.: 1 inch
• Pressure: 75 psi
• Elastomers Material: Buna
• Seat Material: Ceramic
• Spring Material: Stainless Steel
• Washer Material: Molded Plastic
• Head Type: A
• Weight: 0.187 pounds
