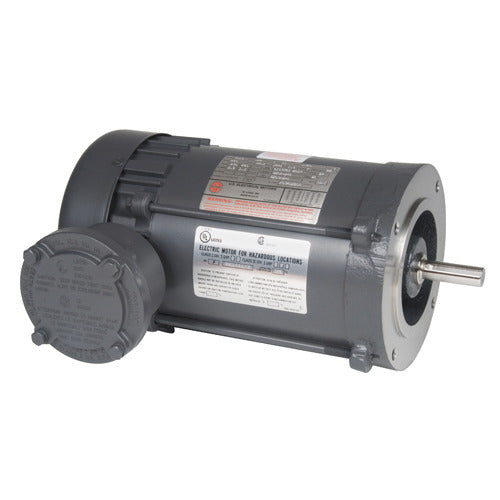

U.S. Motors XS34CA1JCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors XS34CA1JCR is a general purpose single phase TEFC C-Face motor. This 3/4 horsepower motor has a speed of 3600 RPM and operates at 60 Hz with a voltage rating of 115/208-230. The motor features a totally enclosed fan cooled (TEFC) design, making it suitable for a variety of applications.

• AC motor type
• 3/4 horsepower power rating
• TEFC enclosure for durability

Product Highlights

This motor is ideal for both general purpose and hazardous duty applications. The C-face mounting design allows for easy installation, while the automatic reset thermal protection enhances safety during operation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: XS34CA1JCR

Technical Specifications

• HP: 3/4
• Full Load RPM: 3600 RPM
• Phase: Single Phase
• Enclosure: TEFC
• Frame: 56C
• Voltage Rating: 115/208-230
• Full Load Amps: 10.4/5.3-5.2
• Service Factor: 1
