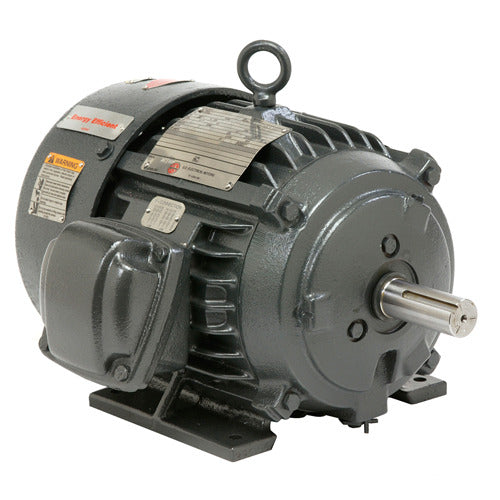

U.S. Motors XS32P2A14 Explosion Proof Three Phase TEFC Rigid Motor

Product Description

The U.S. Motors XS32P2A14 is an explosion-proof three-phase TEFC rigid motor designed for applications where safety is a priority. This 1 1/2 horsepower motor operates at an RPM of 1800 and is suitable for use in environments with flammable or explosive materials. It is built with a TEFC enclosure to provide durability and protection against dust and moisture, enhancing its lifespan and reliability in tough conditions.

• Explosion-proof motor application
• 1 1/2 horsepower with 1800 RPM
• Operates on a voltage rating of 208-230/460

Product Highlights

Designed for continuous duty, this motor comes with robust thermal protection and a high full-load efficiency of 86.5%. The rigid mounting and 145T frame ensure it stays secure and stable during operation.

Product Information

Standard Information

• Motor Application: Explosion Proof
• Duty: Continuous Duty

Technical Specifications

• Full Load RPM: 1725
• Full Load Amps: 4.7-4.6/2.3
• Weight: 32.0 LB
• Insulation Class: B
• Service Factor: 1.15
• C Dimension: 15 1/2 inches
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Poles: 4
• Phase: Three Phase
• Voltage Rating: 208-230/460
