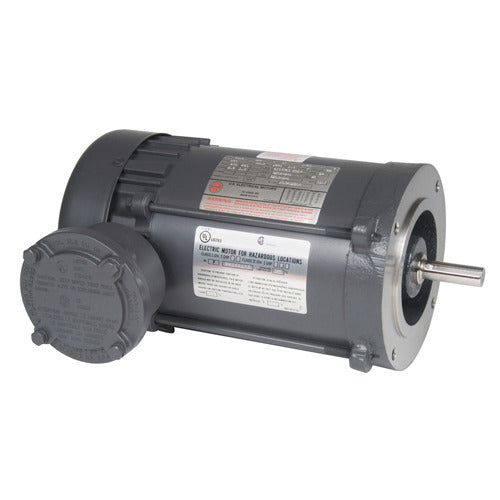

U.S. Motors XS2P2ACR Explosion Proof Three Phase TEFC C-Face Motor

Product Description

The U.S. Motors XS2P2ACR is an explosion proof three-phase TEFC C-face motor designed for heavy-duty applications. It operates at two horsepower with a full-load speed of eighteen hundred revolutions per minute. This motor is suitable for environments requiring high reliability and safety standards. It is designed to meet rigorous operational conditions and is widely used in industries like manufacturing and chemical processing.

• Two horsepower for robust performance
• Continuous duty cycle for reliable operation
• TEFC enclosure for protection against harsh environments

Product Highlights

The motor features a C-face mount design, making installation straightforward. It is built to last with a service factor of 1.15 and operates effectively at 208-230/460 voltage ratings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: XS2P2ACR

Technical Specifications

• Enclosure: TEFC
• Duty: Continuous Duty
• C Dimension: 15.8 inches
• Full Load RPM: 1725 RPM
• Frequency: 60 Hz
• Voltage Rating: 208-230/460
• Service Factor: 1.15
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Poles: 4
• Full Load Amps: 6.2-6/3
• Frame: 145TC
• Motor Application: Explosion Proof
• Full Load Efficiency: 86.5 %
• Phase: Three Phase
• Thermal Protection: Thermal Switch
• Mounting: C-Face
• Insulation: Class B
• Weight: 45.0 lbs
• EAN or UPC: 786382097288
