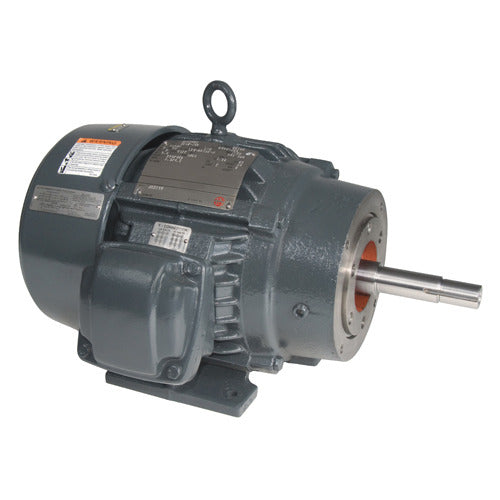

U.S. Motors XJ5P2BM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor
U.S. Motors XJ5P2BM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

U.S. Motors XJ5P2BM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

Brand: US MOTORS
SKU: XJ5P2BM
Availability: Out Of Stock
$1,114.03
$1,114.03
LTL Delivery

This product weighs 110 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors XJ5P2BM is a close coupled pump motor designed for various industrial applications. This three-phase motor operates at a power of five horsepower and runs at a speed of one thousand eight hundred rpm. Its construction is of a totally enclosed fan cooled (TEFC) type, ensuring durability and efficiency in challenging environments.

  • 230/460 voltage rating
  • Continuous duty operation
  • Constructed with robust cast iron materials

Product Highlights

This motor is ideal for pump applications and features a horizontal footed mount. It is suitable for use in installations that require reliable performance and significant energy efficiency.

Product Information

Standard Information

  • Brand: U.S. Motors
  • Part Number: XJ5P2BM

Technical Specifications

  • Voltage Rating: 230/460
  • Mounting: Horizontal - Footed
  • Full Load Efficiency: 89.5%
  • Insulation Class: F
  • RPM: 1800
  • Poles: 4
  • Phase: Three Phase
  • Frequency: 60 Hz
  • Full Load Amps: 12.5/6.2
  • Motor Application: Pump Motor
  • Service Factor: 1
  • Frame: 184JM
  • Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
  • C Dimension: 18.3 inches
  • Duty: Continuous Duty
  • Weight: 110.0 LB
  • EAN or UPC: 786382114787
