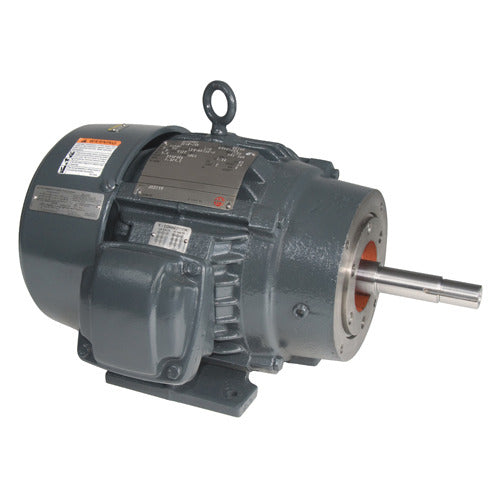

U.S. Motors XJ3P2BM Close Coupled Pump Motor Three Phase TEFC Horizontal - Footed Motor

US MOTORS
Brand: US MOTORS
SKU: XJ3P2BM
Availability: In Stock

Ships via freight in 1-3 business days

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$1,039.46
$1,039.46
LTL Delivery

This product weighs 90 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors XJ3P2BM is a close coupled pump motor designed for reliable performance in various applications. This three-phase motor operates at a speed of one thousand eight hundred revolutions per minute, making it suitable for a range of pumping needs.

  • Powerful three-horsepower motor
  • TEFC enclosure for better protection
  • Horizontal footed mounting for easy installation

Product Highlights

Designed for continuous duty, the XJ3P2BM features a robust construction that allows it to efficiently handle demanding tasks. It is ideal for use in pumping operations in HVAC systems, industrial applications, and commercial settings.

Product Information

Standard Information

  • Brand: U.S. Motors
  • MPN: XJ3P2BM

Technical Specifications

  • Motor Application: Pump Motor
  • Power: 3 hp
  • RPM: 1800
  • Phase: Three Phase
  • Voltage Rating: 230/460
  • Enclosure Type: TEFC
  • Frame: 182JM
  • Full Load Amps: 7.7/3.8
  • Full Load Efficiency: 89.5 %
  • Service Factor: 1
  • Weight: 90.0 lbs
  • C Dimension: 18.3 in
