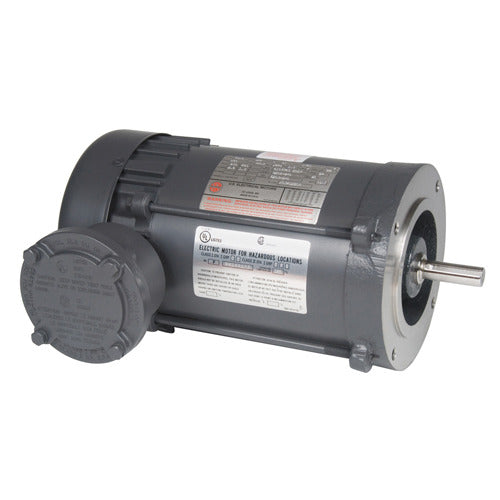

U.S. Motors X3P2BCR Explosion Proof Three Phase TEFC Horizontal - Footless Motor

Product Description

The U.S. Motors X3P2BCR is an explosion-proof three-phase motor designed for demanding applications. This motor is made with a totally enclosed fan cooled (TEFC) enclosure. It features a horizontal footless mount, making it versatile for various installation needs.

• 3 horsepower
• Continuous duty operation
• Suitable for 230/460 voltage rating

Product Highlights

This motor is ideal for use in environments that require safety and reliability. Its explosion-proof design allows it to operate safely in hazardous conditions, preventing ignition sources in volatile atmospheres.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: X3P2BCR

Technical Specifications

• Frame: 182TC
• Full Load Efficiency: 89.5%
• Duty: Continuous Duty
• Enclosure: TEFC
• Phase: Three Phase
• Frequency: 60 Hz
• RPM: 1800
• Voltage Rating: 230/460
• Full Load RPM: 1765
• Mounting: Horizontal - Footless
• Motor Application: Explosion Proof
• C Dimension: 16.2 in
• Insulation: F
• Full Load Amps: 7.7/3.8
• Poles: 4
• Service Factor: 1.15
• Weight: 105 LB
• UPC: 786382116729
