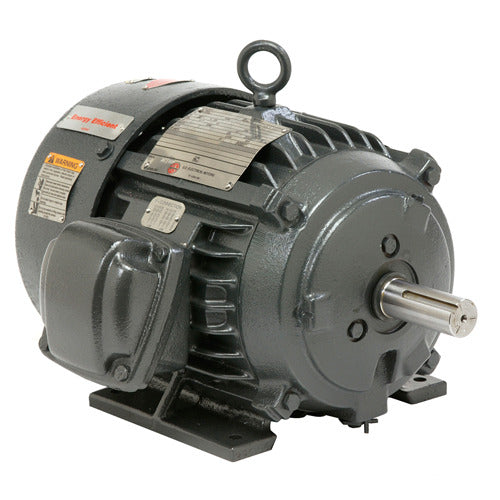

U.S. Motors X10P2B Explosion Proof Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors X10P2B is an explosion proof motor designed for high-performance applications. This three-phase motor delivers ten horsepower with a continuous duty rating. It operates efficiently at 1800 revolutions per minute (RPM). The motor supports a voltage rating of 230/460 volts and has a rugged TEFC (Totally Enclosed Fan Cooled) enclosure.

• Explosion proof design for safety in hazardous environments
• Continuous duty operation ensures reliable performance
• TEFC enclosure protects motor from dust and moisture

Product Highlights

This motor is suitable for various industrial applications, especially where safety is a concern. The durable cast iron frame ensures long-lasting performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: X10P2B

Technical Specifications

• Frame: 215T
• Poles: 4
• Mounting: Horizontal - Footed
• Service Factor: 1
• Voltage Rating: 230/460
• Enclosure: TEFC
• Full Load Amps: 23.9/12
• Hz: 60
• Phase: Three Phase
• Motor Application: Explosion Proof
• Frame Material: Cast Iron
• Insulation: F
• Duty: Continuous Duty
• C Dimension: 19.1 inches
• RPM: 1800
• Full Load Efficiency: 91.7%
• Weight: 194.0 LB
• EAN or UPC: 786382092429
