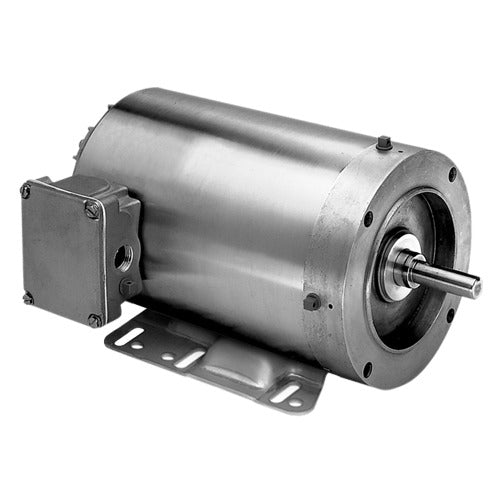

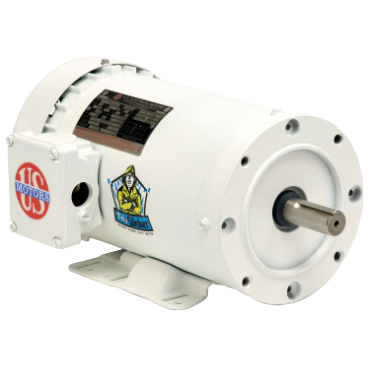

U.S. Motors WDP1S2AC Washdown Duty Three Phase TENV Face/Base Motor

Product Description

The U.S. Motors WDP1S2AC is designed for washdown duty applications. This three-phase motor operates at one horsepower with a speed of eighteen hundred revolutions per minute (rpm). It features a TENV enclosure, making it suitable for environments where moisture and dust are present. The motor is available with a voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts.

• Powerful one horsepower motor
• Compact TENV design for protection against moisture
• Suitable for various industrial applications

Product Highlights

This motor is ideal for washdown applications and continuous duty, enabling reliable performance in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WDP1S2AC

Technical Specifications

• HP: 1
• RPM: 1800
• Phase: Three
• Duty: Continuous Duty
• Voltage Rating: 208-230/460
• Efficiency: 85.5%
• Service Factor: 1.15
• Frame Size: 145TC
• Weight: 32.0 LB
• C Dimension: 13.7 in
• Mounting: Face, Face/Base
• Enclosure Designation: TENV - Totally Enclosed Non-Ventilated
• Full Load Amps: 3.5-3.4/1.7
