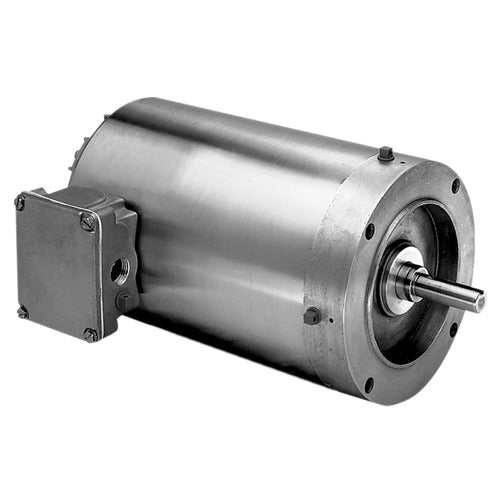

U.S. Motors WDP1P2DFCR Washdown Duty Three Phase TENV C-Face Motor

Product Description

The U.S. Motors WDP1P2DFCR is a washdown duty three phase TENV C-face motor. This motor is designed for reliable operation in demanding applications. It features a robust construction for durability and performance.

• 1 horsepower for efficient performance
• Operates at 1800 rpm for consistent speed
• Available in a TENV enclosure to protect from contamination

Product Highlights

Ideal for applications where water and moisture are present, this motor provides continuous duty performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WDP1P2DFCR

Technical Specifications

• Enclosure: TENV
• Motor Application: Washdown Duty
• Insulation: F
• Voltage Rating: 208-230/460 and 190/380
• Mounting: C-Face
• Enclosure Designation: TENV - Totally Enclosed Non-Ventilated
• Poles: 4
• Hz: 50/60 Hz
• RPM: 1800 rpm
• Full Load Amps: 3.5-3.4/1.7
• Phase: Three Phase
• Duty: Continuous Duty
• Frame: 56C
• Full Load Efficiency: 85.5%
• Full Load RPM: 1425 rpm, 1725 rpm
• Weight: 30.5 LB
• EAN or UPC: 786382114329
