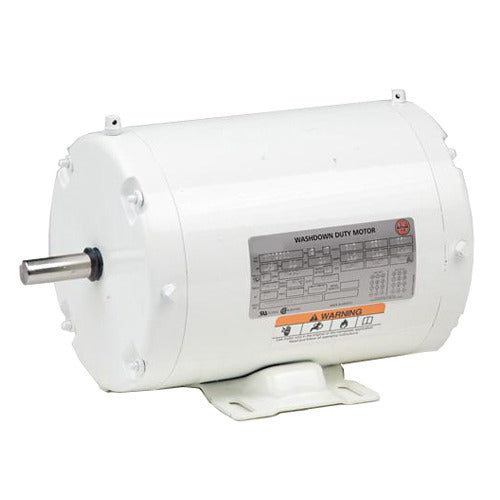

U.S. Motors WD5P2D Washdown Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors WD5P2D is a washdown duty three-phase motor designed for industrial applications. This motor operates at five horsepower and features a totally enclosed fan-cooled (TEFC) design for reliable performance in demanding conditions. It offers a speed of one thousand eight hundred rpm and is suitable for both fifty and sixty hertz power supplies.

• 5 horsepower and three-phase operation
• TEFC enclosure for protection against moisture and dust
• Compatible with 208-230/460 and 190/380 voltage ratings

Product Highlights

This motor is ideal for washdown environments, ensuring durability and efficiency. It is built on a 184T frame and is mounted horizontally with a footed base. The continuous duty rating supports sustained operation, making it a suitable choice for a range of applications including pumps and compressors.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD5P2D

Technical Specifications

• Motor Application: Washdown Duty
• Frame: 184T
• Voltage Rating: 208-230/460 & 190/380
• Service Factor: 1.15
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load rpm: 1435 rpm, 1755 rpm
• Poles: 4
• Hz: 50/60 Hz
• Full Load Efficiency: 89.5 %
• Phase: Three Phase
• Full Load Amps: 13.5-12.5/6.2
• C Dimension: 15.7 in
• Duty: Continuous Duty
• RPM: 1800 rpm
• Mounting: Horizontal - Footed
• Insulation: F
• Weight: 76.0 LB
• EAN or UPC: 786382098056
