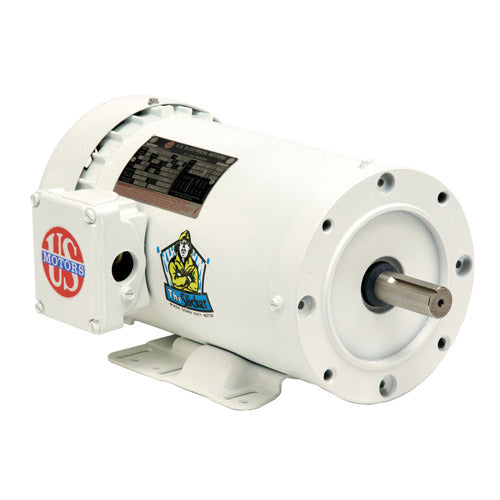

U.S. Motors WD3P1DC Washdown Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

U.S. Motors WD3P1DC is a washdown duty three-phase motor designed for reliability in demanding environments. This motor operates at 3 horsepower and reaches a speed of 3600 RPM. It features a TEFC (totally enclosed fan cooled) design, providing enhanced protection against moisture and dust.

• Three-phase operation
• 208-230/460 & 190/380 voltage ratings
• Engineered for washdown applications

Product Highlights

The WD3P1DC motor is ideal for continuous duty applications. It is built to withstand the rigors of washdown requirements while maintaining efficiency and performance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD3P1DC

Technical Specifications

• Motor Application: Washdown Duty
• Voltage Rating: 208-230/460 & 190/380
• Frame: 182TC
• Service Factor: 1.15
• Mounting: Horizontal - Footed
• Poles: 2
• Phase: Three Phase
• Enclosure: TEFC
• Duty: Continuous Duty
• C Dimension: 18.8 inches
• Full Load RPM: 3600 RPM
• Full Load Amps: 8.1-7.4/3.7
• Weight: 73.0 LB
