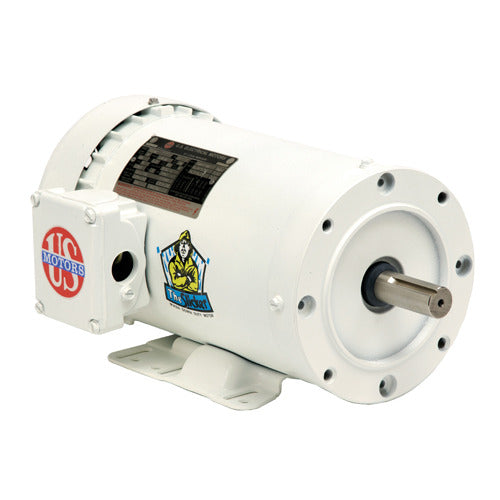

U.S. Motors WD3P1A14C Washdown Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors WD3P1A14C is a washdown duty three-phase electric motor designed for reliable performance in demanding environments. This motor operates at three horsepower and can reach speeds of three thousand six hundred revolutions per minute. It features a totally enclosed fan-cooled design for protection against moisture and contaminants.

• High Efficiency: This motor achieves full load efficiency of eighty-six point five percent.
• Durable Construction: Features a robust rolled steel body.
• Versatile Voltage: Accepts both two hundred eight and four hundred sixty voltage ratings.

Product Highlights

Ideal for applications requiring continuous duty, this motor features a horizontal footed mount for easy installation.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD3P1A14C

Technical Specifications

• Voltage Rating: 208-230/460
• Full Load Efficiency: 86.5 %
• Full Load RPM: 3490
• Frequency: 60 Hz
• Enclosure: TEFC
• Motor Application: Washdown Duty
• Phase: Three Phase
• Duty: Continuous Duty
• Mounting: Horizontal - Footed
• Frame: 145TC
• Poles: 2
• Insulation: F
• Full Load Amps: 8.1-7.2/3.6
• Weight: 76.0 LB
• EAN or UPC: 786382098872
