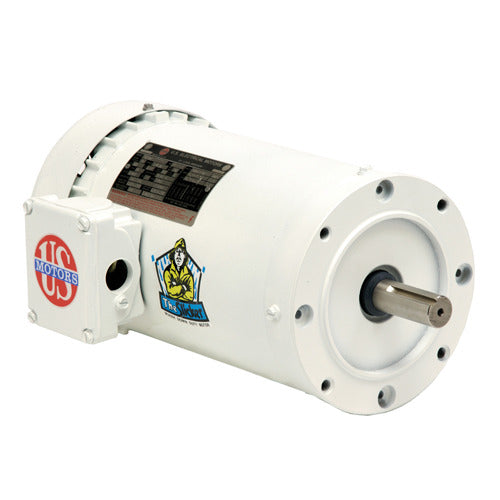

U.S. Motors WD32P2A14CR Washdown Duty Three Phase TENV C-Face Motor

Product Description

The U.S. Motors WD32P2A14CR is designed for washdown duty applications. This motor is a three-phase unit rated at one and a half horsepower. It operates at eighteen hundred revolutions per minute (RPM) and is suitable for both 230 and 460 volts. The motor features a TENV (Totally Enclosed Non-Ventilated) enclosure that protects against dust and moisture.

• 1 1/2 horsepower for demanding applications
• Continuous duty with excellent efficiency
• C-Face mounting for easy installation

Product Highlights

This motor is built for reliable operation in challenging environments. Typical uses include washdown settings in food processing and other industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD32P2A14CR

Technical Specifications

• Phase: Three Phase
• Voltage Rating: 230/460 Volts
• Frame Size: 145TC
• Full Load Amps: 4.4/2.2
• Efficiency: 86.5%
• Duty: Continuous Duty
• Enclosure Designation: TENV
• Weight: 39.0 lbs
