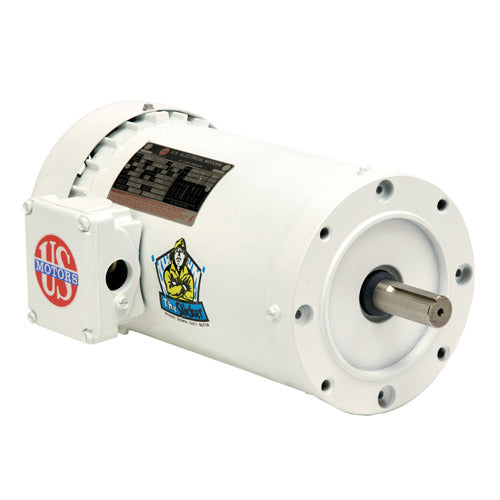

U.S. Motors WD2P2A14CR Washdown Motor 2 HP 145TC 60 208-230/460 V

Product Description

The U.S. Motors WD2P2A14CR is a three-phase washdown motor designed for reliability and performance in various applications. This motor features a power rating of two horsepower and a frame size of 145TC. It operates at voltage levels of 208-230/460 volts.

• Electrical Type: Three Phase
• Amperage: 6.2-6.0/3.0
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

Product Highlights

The WD2P2A14CR motor is built from rolled steel, ensuring durability in demanding environments. The motor is footless with a C-face mounting configuration, making it versatile for various setups. It is ideal for washdown applications, where moisture resistance is essential.

Product Information

Standard Information

• Voltage: 208-230/460 V
• Phase: Three

Technical Specifications

• Power: 2 HP
• Frame Size: 145TC
• Rotation: REV
• Mounting Type: C-Face / Footless
• Material: Rolled Steel
• Overload Protector: None
• Shaft Type: Single
• Number of Speeds: 1
