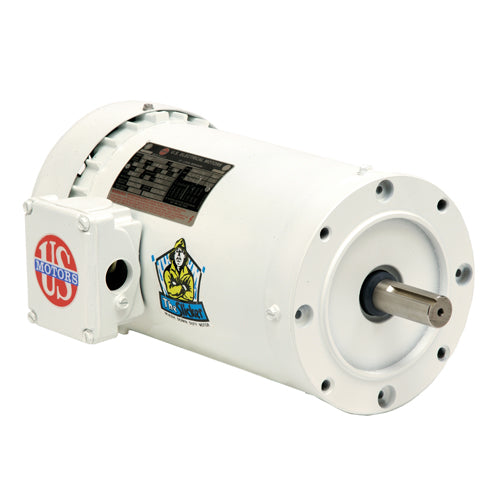

U.S. Motors WD2C2JCR Washdown Duty Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors WD2C2JCR is a washdown duty single phase TEFC C-face motor ideal for various applications, especially in environments exposed to moisture and cleaning agents. This motor provides a power output of two horsepower at an efficient speed of one thousand eight hundred rpm, ensuring reliable performance. The TEFC enclosure keeps the motor protected from external contaminants, making it suitable for demanding conditions.

• Power Output: 2 HP
• Speed: 1800 RPM
• Enclosure Type: TEFC

Product Highlights

This motor is designed for continuous duty, making it suitable for applications requiring sustained performance over time.

Product Information

Standard Information

• Phase: Single Phase
• Voltage Rating: 115/230

Technical Specifications

• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load RPM: 1725 RPM
• Service Factor: 1.15
• Design: L
• Frame Size: 56C
• C Dimension: 15.3 inches
• Full Load Efficiency: 81.5%
• Full Load Amps: 19.6/9.8
• Weight: 48.0 LB
• EAN or UPC: 786382077372
