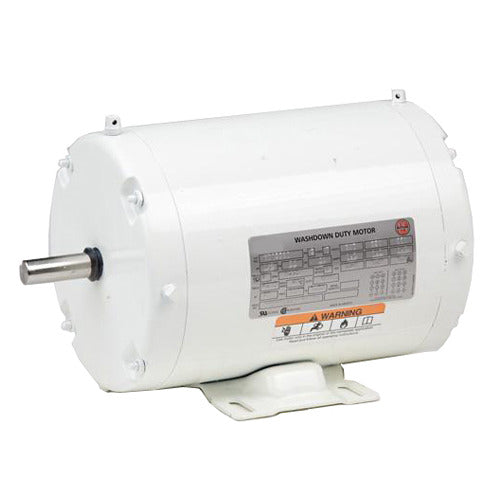

U.S. Motors WD1P3A Washdown Duty Three Phase TEFC Rigid Motor

Product Description

The U.S. Motors WD1P3A is a washdown duty three-phase TEFC rigid motor designed for reliability and durability in harsh environments. This motor features a one horsepower rating and operates at a speed of twelve hundred revolutions per minute. It has a total enclosure fan cooled design, providing protection against moisture and debris. Built for continuous duty cycles, this motor delivers consistent performance across various applications.

• Voltage rating: 208-230/460 volts
• C frame size: 145T
• Full load efficiency: 82.5%

Product Highlights

The washdown duty suitability makes this motor ideal for applications in food processing and chemical environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD1P3A

Technical Specifications

• Frame: 145T
• C Dimension: 15.7 inches
• Full Load Amps: 3.8-3.8/1.9
• Duty: Continuous Duty
• Frequency: 60 Hz
• Enclosure: TEFC
• Full Load RPM: 1140 RPM
• Voltage Rating: 208-230/460
• Service Factor: 1.15
• Weight: 48 pounds
